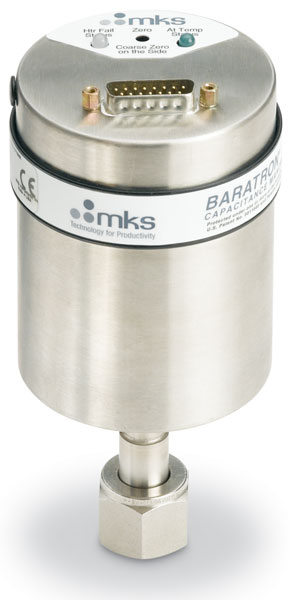

MKS 628D Series Capacitance Manometers


MKS has improved on the industry standard Type 628A by incorporating new features into the Type 628D Baratron^® capacitance manometer.

Features

• Temperature regulated to 100° C
• Accurate to 0.25% of reading
• Includes updated temperature control electronics to provide superior long-term stability and repeatability
• Optional heater and temperature status LED/switches indicate that the heater (which maintains the sensor temperature to 100° C) is at temperature
• Available from 0.05–1,000 mm Hg (Torr)
• Input power is ±15 VDC
• Output signal is 0–10 VDC
• Replaces the Type 628A and Type 128 absolute capacitance manometer
• Inconel^® construction for excellent resistance to corrosive gases
• RoHS compliant.

Start Your Configuration

1. Avoid over pressurizing the gauge
2. Maintain a stable ambient temperature
3. Avoid vibration
4. Avoid particulate contamination, or any contamination that may affect diaphragm motion
5. Recalibrate frequently

For more in depth information please reference our Technical Notes on gauging, read our Lesker Tech back issues concerning gauging, or email us at sales@lesker.com.
