Vacuum Pumps

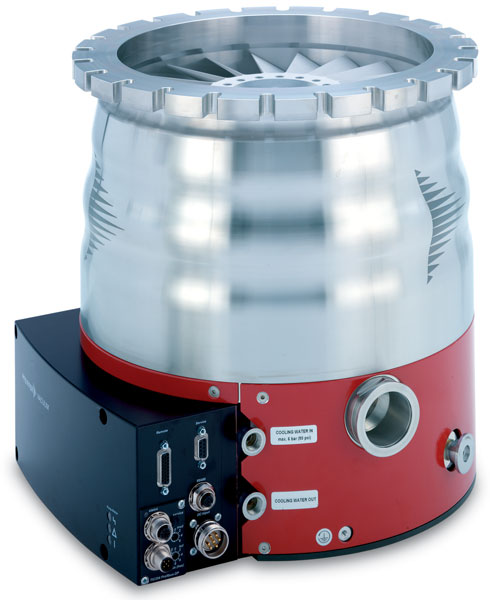

Pfeiffer HiPace™ MC Turbopumps



What is a HiPace MC?

Magnetically levitated turbopump with integrated drive electronics

Advantages:

NOTE: These pumps are corrosive, Semi S2, F47, and E74 certified.

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Reman Pumps

Specifications Table

Pump Model Pumping
Speed
L/sec (cfm)
Compression
Ratios
Ult. Pressure
Torr (mBar)
Inlet
Flange
Foreline
Flange
Max. Foreline
Press.
Torr (mbar)
Orientation Cooling Method
HiPace 2400MC
2100
N2: 1.0 x 109
He: 2.0 x 105
H2: 1.0 x 104
Ar: 1.0 x 109
7.5 x 10-10
(1 x 10-9)
12" CF
KF40
1.125 (1.5)
Any
Water
HiPace 3400MC
2950
N2: 1.0 x 109
He: 4.0 x 105
H2: 4.0 x 104
Ar: 1.0 x 109
7.5 x 10-10
(1 x 10-9)
ISO320-F
KF40
1.5 (2)
Any
Water

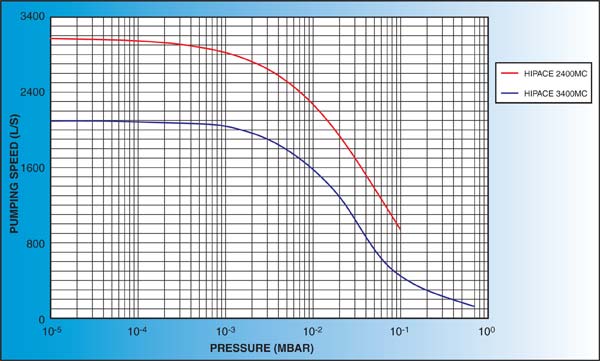

Pumping Speed Charts

Click on a thumbnail image to open the pump curve in a new window.
Click to view PumpCurve_HiPaceMCTurbo.jpg
HiPaceMCTurbo












Ordering Table

International Pricing iconPlease select your region to display prices and enable on-line shopping:
Pump
Model
Description Inlet
Flange
PartNo
HiPace 2400MC
Includes Integrated Controller and On Board Power Supply
ISO250K
PMP03710
HiPace 2400MC
Includes Integrated Controller and On Board Power Supply
ISO250F
PMP03711
HiPace 2400MC
Includes Integrated Controller and On Board Power Supply
12" CF
PMP03712
HiPace 3400MC
Includes Integrated TM3000 Drive Electronics
Power Supply, TPS1400,is Required and Must be Ordered Separately
ISO320F
PMP03501

E-mail KJLC Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Accessories Table

Description Compatible Pumps PartNo
DCU 002 Display Control Unit
All MC Pumps
P061348-T
Power Cable, 208 VAC, NEMA 6-15 Plug End, 3 m
All MC Pumps
P4564309HB
Power Cable, 230 VAC, Euro-style Safety Plug, 3 m
All MC Pumps
P4564309HA
Heating Jocket 208 VAC, NEMA 6-15 Plug End, 3 m
HiPace 2400MC
PM061155-T
Heating Jocket 230 VAC, Erou-style Safety Plug
HiPace 2400MC
PM061154-T
TSP 1400 Power Supply
HiPace 3400MC
PMC01760
