Vacuum Pumps > Oil-Sealed Mechanical Pumps > Rotary Vane Pumps > Leybold Series > Sogevac Series

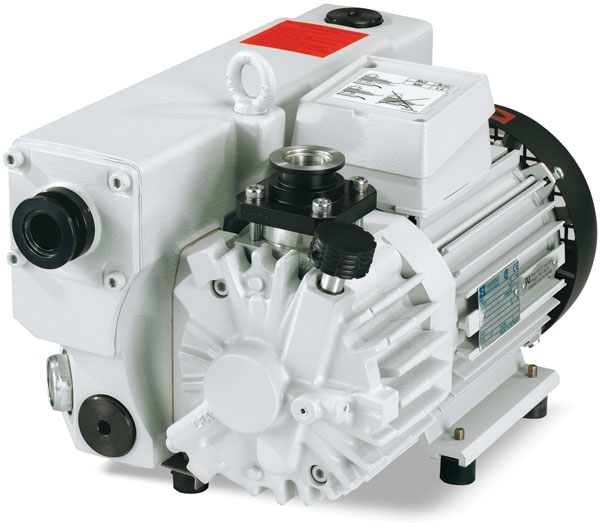

Oerlikon Leybold–SOGEVAC^® SV–BI Series

SV28BI and SV40BI

The BI series maintains all the features of the single-stage B series pumps with a better ultimate pressure and high pumping speed stability at low pressure.

Applications

• Backing Pump for High Vacuum Turbo
• Freeze Drying
• Mass Spectrometry
• Refridgeration and Air conditioning
• Laboratory

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	SV28BI	SV40BI
Chemistry	Standard Series Hydrocarbon Oil	Standard Series Hydrocarbon Oil
Disp. CFM @ 60 Hz (m3/hr @ 50 Hz)	17.8 (25)	29.5 (42)
Ult. Pressure Torr (mBar)	3.75 x 10-2 (5 x 10-2)	3.75 x 10-2 (5 x 10-2)
Motor HP (kW)	1.5 (0.9)	1.8 (1.1)
Oil Capacity Quarts (liters)	1.59 (1.5)	1.1 (1)
Fomblin Charge Estimate* — kg (1 liter = 1.96 kg)	1	2
Inlet Flange	KF25	KF40
Exhaust Flange	KF25	KF40
Weight lbs (kg)	75 (34)	99 (45)
Certifications	CE	CE

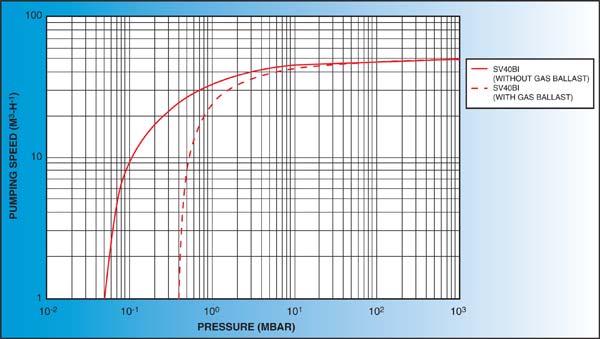

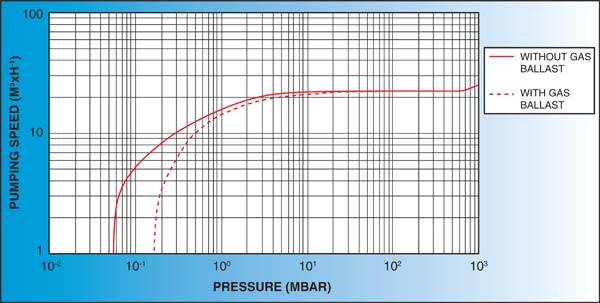

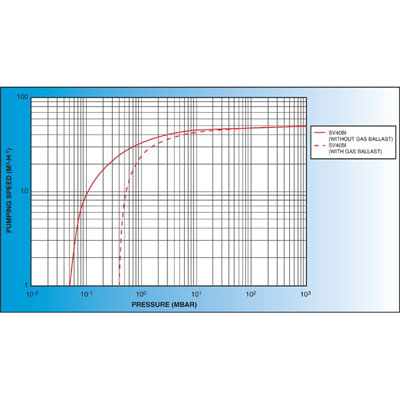

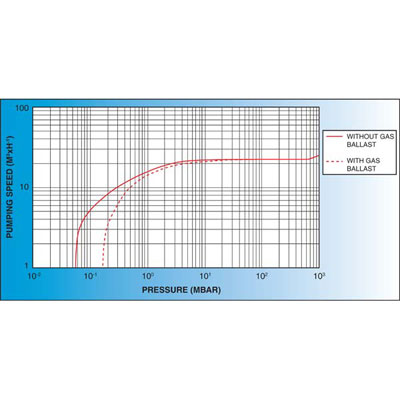

Charts

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Ordering Table

Pump Model	Voltage & Phases	PartNo	Price	Add To Cart
SV28BI	115 VAC, 50/60 Hz, 1-Ø	LH-960278	P.O.R.
SV28BI	180–264 VAC, 50/60 Hz, 1-Ø	LH-960277	P.O.R.
SV28BI	170–506 VAC, 50/60 Hz, 3-Ø	LH-960273	P.O.R.
SV40BI	230-460 VAC, 60 Hz, 3-Ø	LH-960341	$4,323.00
SV40BI	230-400 VAC, 50 Hz, 3-Ø	LH-960331	P.O.R.

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Accessories Table

Description	For Pump Model(s)	PartNo	Price	Add To Cart
Demister Element	SV28BI	LH-71416340	$55.00
Demister Element	SV40BI	LH-71421180	$75.00
Repair Kit	SV40BI	LH-971443150	P.O.R.
Repair Kit	SV28BI	LH-971462690	P.O.R.
Seal Kit	SV40BI	LH-971427640	$155.00
Seal Kit	SV28BI	LH-971462670	P.O.R.
