Vacuum Pumps > Dry Mechanical Pumps > Scroll Pumps

Edwards XDS Series

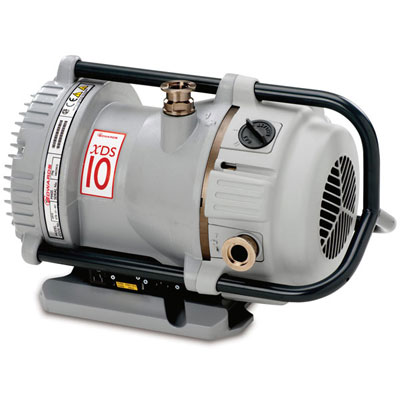

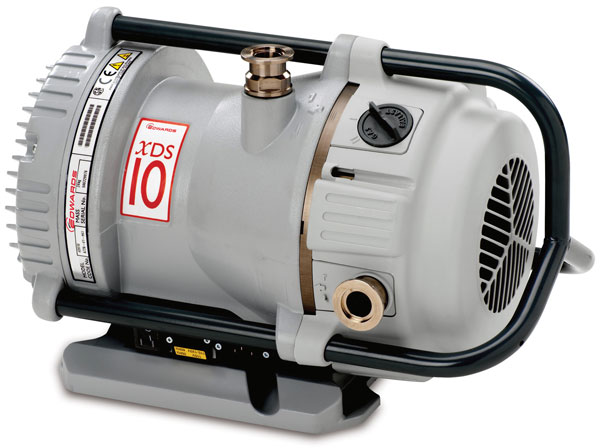

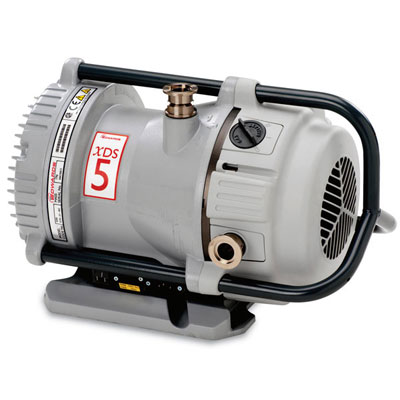

Photo-PU-XDS5-A4.jpg	Photo-PU-XDS10-A4.jpg	Photo-PU-XDS35-A4.jpg

Bearings are isolated from the vacuum environment by a patented XDS bearing shield

Features:

Ultimate vacuum of 8 x 10^-3 Torr
Inverter-driven motor worldwide voltage, low power consumption, remote speed selection
PFPE based tip seals, easily field replaceable, no special tools needed
For roughing chambers prior to cryopumping
For backing normal turbo and hybrid turbo pumps
General rough pumping applications in clean (non-corrosive) conditions

NOTE:

These pumps are not suitable for liquids, dust-laden gases, or corrosive gases.
Power cable included.

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	XDS5	XDS10	XDS35i
Chemistry	Standard	Standard	Standard
Disp. CFM @ 60 Hz (m3/hr @ 50 Hz)	3.5 (4.8)	6.5 (9.3)	25 (43)
Ult. Pressure Torr (mBar)	5 x 10^-2 (7 x 10^-2)	5 x 10^-2 (7 x 10^-2)	8 x 10^-3 (1 x 10^-2)
Motor HP (kW)	0.4 (0.3)	0.4 (0.3)	0.8 (0.6)
Inlet Flange	KF25	KF25	KF40
Exhaust Flange	KF25	KF25	KF25
Dimensions LxWxH - in. (mm)	16.8 x 9.8 x 11.3 (427 x 249 x 288)	16.8 x 9.8 x 11.3 (427 x 249 x 288)	18.7 x 13.1 x 15.6 (476 x 333 x 397)
Weight lbs (kg)	51 (23)	54 (24.5)	105 (48)
Noise db(A)	55	55	57
Certifications	CE	CE	CE

Charts

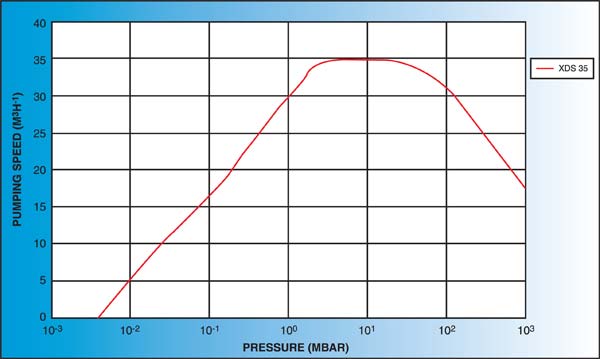

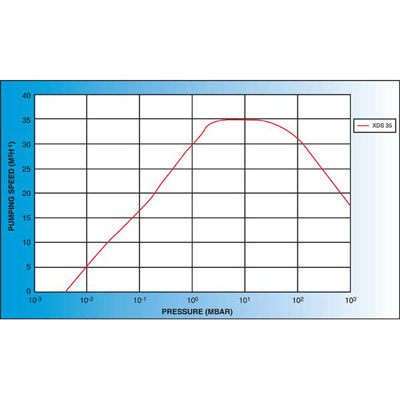

EDW XDS35

Chart: EDW XDS35

EDW XDS35

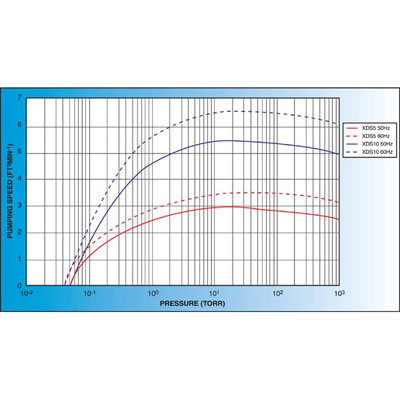

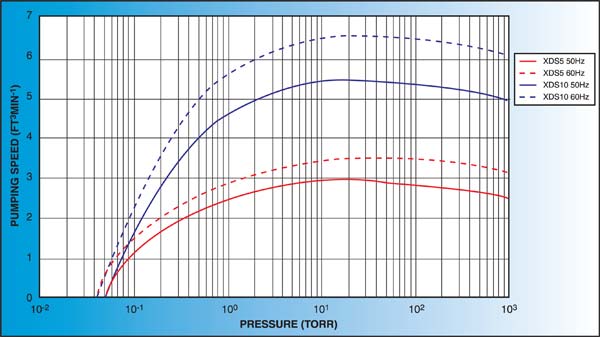

Edwards XDS PumpS

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

Dimensional Drawings

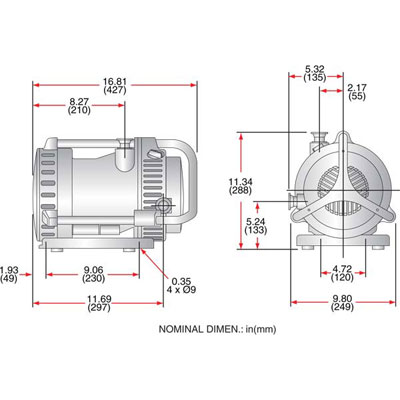

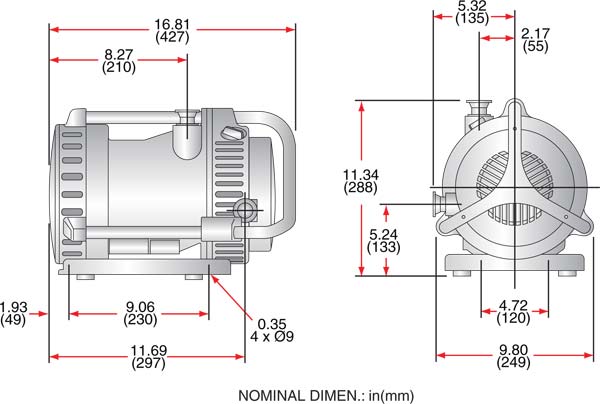

BOCEd XDS5

Drawing: BOCEd XDS5

BOCEd XDS5

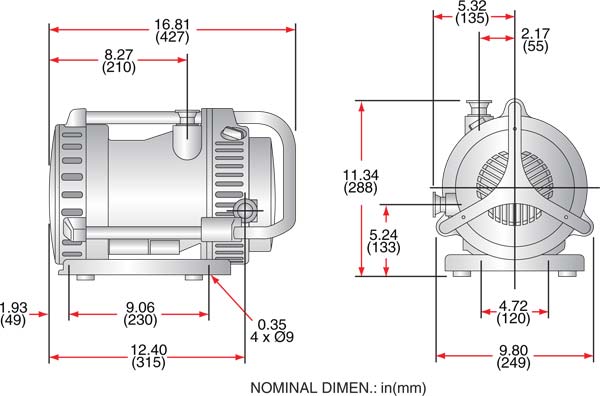

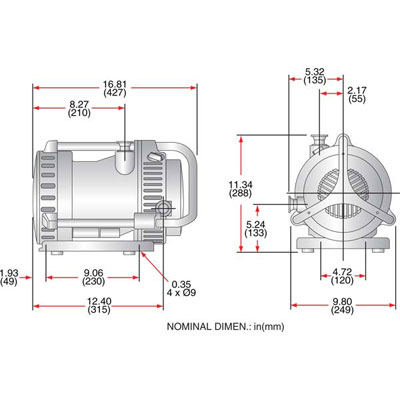

BOCEd XDS10

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

Ordering Table

Pump Model	Voltage & Phases	PartNo	Price
XDS5	115/230 VAC (wired for 115), 50/60 Hz, 1-Ø	ED-A72401906	$4,612.00
XDS5	115/230 VAC (wired for 230), 50/60 Hz, 1-Ø	ED-A72401903	$4,612.00
XDS5	100/200 VAC (wired for 200), 50/60 Hz, 1-Ø	ED-A72401904	$4,612.00
XDS10	115/230 VAC (wired for 115), 50/60 Hz, 1-Ø	ED-A72601906	$5,984.00
XDS10	115/230 VAC (wired for 230), 50/60 Hz, 1-Ø	ED-A72601903	$6,104.00
XDS10	100/200 VAC (wired for 200), 50/60 Hz, 1-Ø	ED-A72601904	$6,104.00
XDS35i	100–120/200–230 VAC (wired for 230), 50/60 Hz, 1-Ø	ED-A73001983	$11,244.00

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]
