Vacuum Pumps > Dry Mechanical Pumps > Scroll Pumps > ULVAC Series

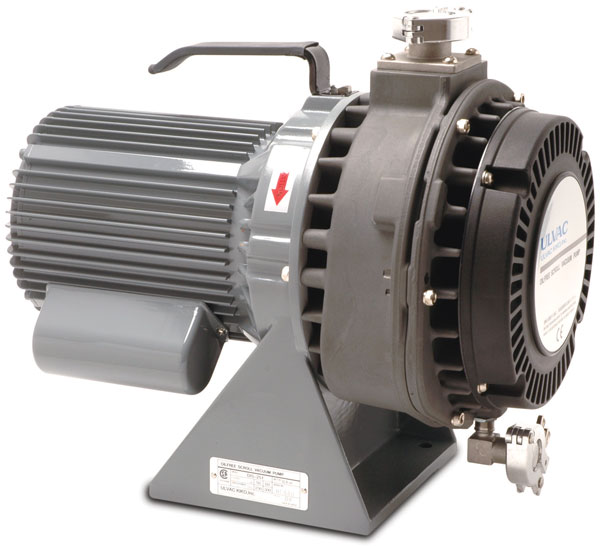

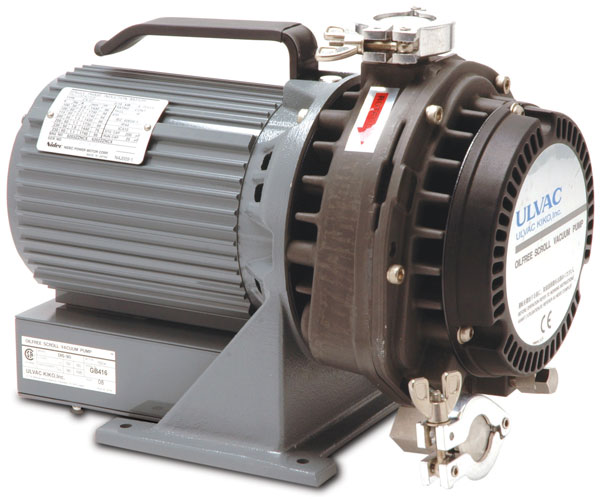

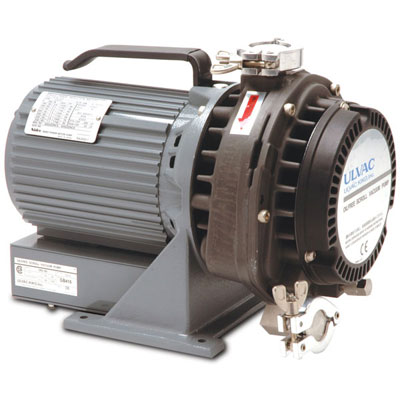

ULVAC^® Standard—DIS Series

Excellent alternatives to medium oil-sealed rotary vane pumps.

Features:

• Absolutely oil-free
• Ideal for applications where any possible contamination of the vacuum system by pump oil cannot be tolerated
• Little routine maintenance—no oil changes, no filter or foreline trap replacement, and no oil waste disposal
• DISL Series features increased moisture-handling capabilities

OEM "Drop-In" Replacements:

• Mechanically comparable to Edwards ESDP12, GVSP30 and other manufacturer’s—call for cross-reference

NOTE: These pumps are not suitable for liquids, dust-laden gases, or corrosive gases.

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	DIS-090	DIS-251	DIS-501
Chemistry	Standard Series	Standard Series	Standard Series
Disp. CFM @ 60 Hz (m3/hr @ 50 Hz)	3.8 (5.4)	10.6 (15)	21.2 (30)
Ult. Pressure Torr (mBar)	3.8 x 10-2 (5 x 10-2)	1.2 x 10-2 (1.6 x 10-2)	7.5 x 10-3 (1 x 10-2)
Motor HP (kW)	0.2 (0.15)	0.54 (0.4)	0.54 (04)
Inlet Flange	KF25	KF25	KF40
Exhaust Flange	KF16	KF16	KF25
Dimensions LxWxH - in. (mm)	12.1 x 8.4 x 8.9 (308 x 214 x 225)	15.7 x 9.9 x 13.2 (400 x 252 x 336)	17.4 x 11.4 x 15.6 (443 x 290 x 397)
Weight lbs (kg)	30.8 (14)	50.7 (23)	96.8 (44)
Noise db(A)	52	58	62
Certifications	CE	CE	CE

Charts

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

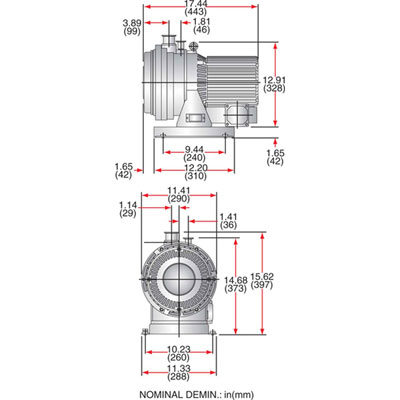

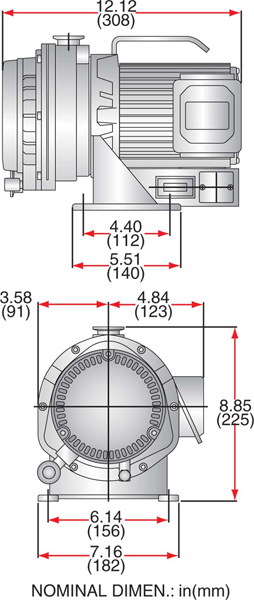

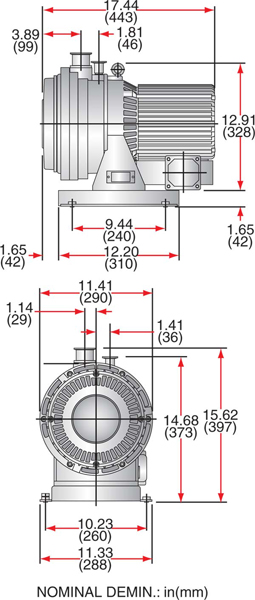

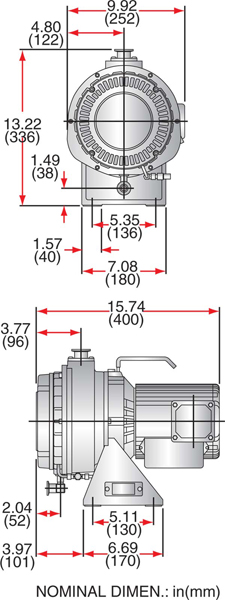

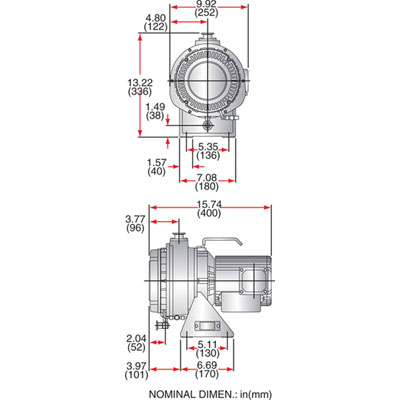

Dimensional Drawings

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Ordering Table

Pump Model	Voltage & Phases	PartNo	Price	Add To Cart
DIS-090	100–120/200–240 VAC, 50/60 Hz, 1-Ø	ULDIS-090	$5,800.00
DIS-251	100–120/200–240 VAC, 50/60 Hz, 1-Ø	ULDIS-251	$7,250.00
DIS-501	100–120/200–240 VAC, 50/60 Hz, 1-Ø	ULDIS-501	$10,430.00

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Accessories Table

Description	For Pump Model(s)	PartNo	Price	Add To Cart
Clamp for KF16 Flange	All DIS/DISL Series Pumps	QF16-075-C	$6.20
Clamp for KF25 Flange	All DIS/DISL Series Pumps	QF25-100-C	$8.25
Clamp for KF40 Flange	All DIS/DISL Series Pumps	QF40-150-C	$9.30
Major Repair Kit	DIS-90	ULDIS090MAK	$1,316.00
Major Repair Kit	DIS-251	ULDIS250MAK	$1,316.00
Major Repair Kit	DIS-501	ULDIS500MAK	$1,552.00
Minor Repair Kit	DIS-90	ULDIS090MIK	$608.00
Minor Repair Kit	DIS-251	ULDIS250MIK	$706.00
Minor Repair Kit	DIS-501	ULDIS500MIK	$641.00
Replacement Tip Seal Kit	DIS-90	ULDIS090TSK	$389.00
Replacement Tip Seal Kit	DIS-251	ULDIS250TSK	P.O.R.
Replacement Tip Seal Kit	DIS-501	ULDIS500TSK	$550.00
Viton Centering Ring for KF25 Flange	All DIS/DISL Series Pumps	QF25-100-SRV	$8.25
Viton Centering Ring for KF40 Flange	All DIS/DISL Series Pumps	QF40-150-SRV	$12.40
Viton® Centering Ring for KF16 Flange	All DIS/DISL Series Pumps	QF16-075-SRV	$6.20
