Vacuum Pumps > Turbomolecular Pumps > Turbo-Drag Hybrid Pumps

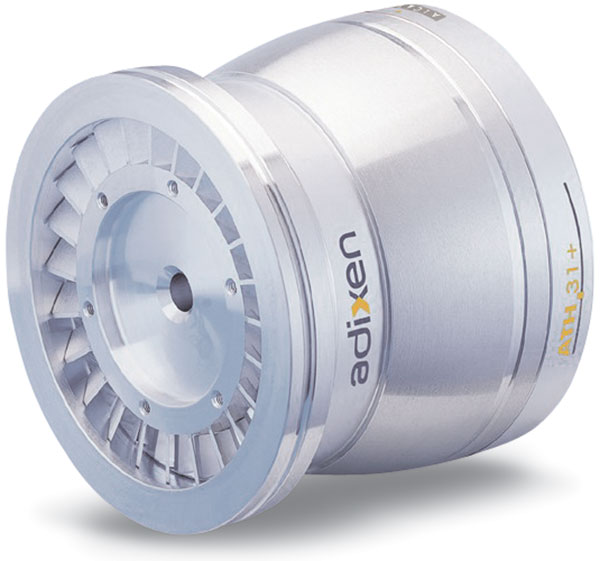

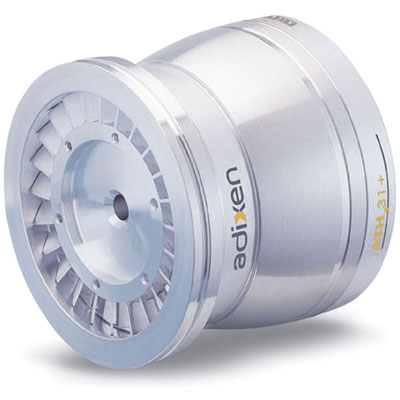

Adixen™ (Alcatel^®) ATH Series


Photo-PU-ADIXEN_ATH_02.jpg	Photo-PU-ADIXEN_ATH.jpg

Includes an intermediate pumping port intended for continuous high vacuum applications, such as mass spectrometers (this extra port is situated between the inlet port and foreline flange)

Intended for corrosive applications
Includes an intermediate pumping port intended for continuous high vacuum applications, such as mass spectrometers (this extra port is situated between the inlet port and foreline flange)

These pumps provide oil-free evacuation for ensured ultra-clean technology in a variety of applications

NOTE:

* Listed ACT controllers come with both U.S. and European mains power cable. U.K. cable sold separately.

Pump Model	ATH 200/200(I)	ATH 300/300(CI)
Pumping Speed L/sec (cfm)	200	250
Compression Ratios	N₂: 1.0 x 10⁹ He: 1.0 x 10⁵ H₂: N/A	N₂: 1.0 x 10⁹ He: 1.0 x 10⁵ H₂: N/A
Ult. Pressure Torr (mBar)	3.8 x 10^-10 (5 x 10^-10)	3.8 x 10^-10 (5 x 10^-10)
Inlet Flange	ISO100-K or 6" CF	ISO100-K or 6" CF
Foreline Flange	KF16	KF25
Max. Foreline Press.Torr (mbar)	3 (4)	7.5 (10)
Backing Pump Min.Speed CFM (m3/hr)	6 (10)	6 (10)
Orientation	Any (360°)	Any (360°)
Cooling Method	Air or Water	Air or Water
Weight lbs (kg)	21.4 (12.2)	23.2 (14.4)

Adixen ATH200-300

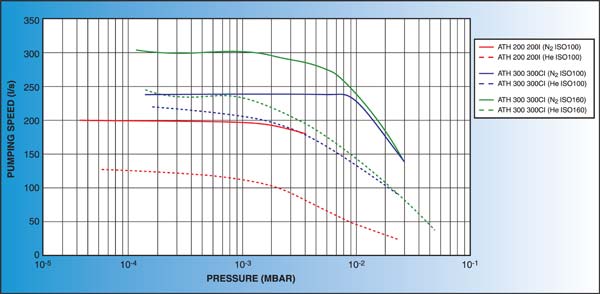

Chart: Adixen ATH200-300

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

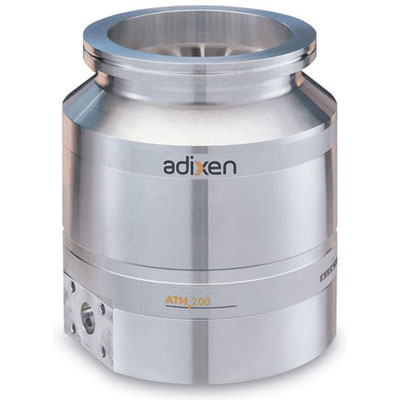

Adixen ATH200

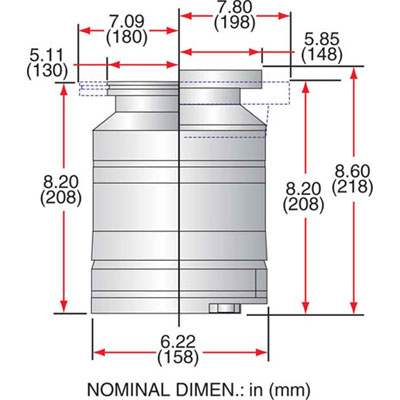

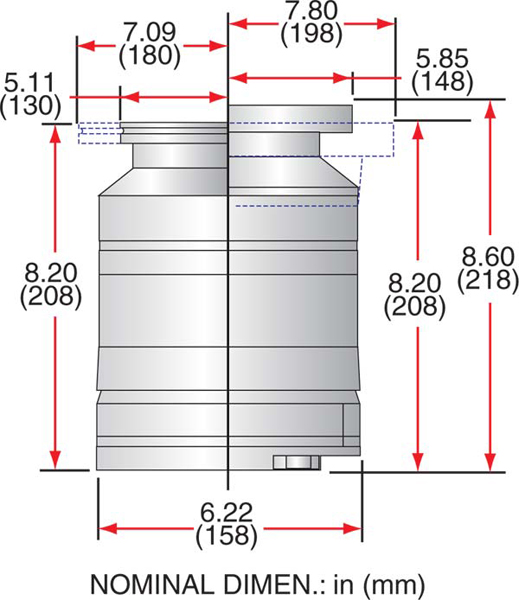

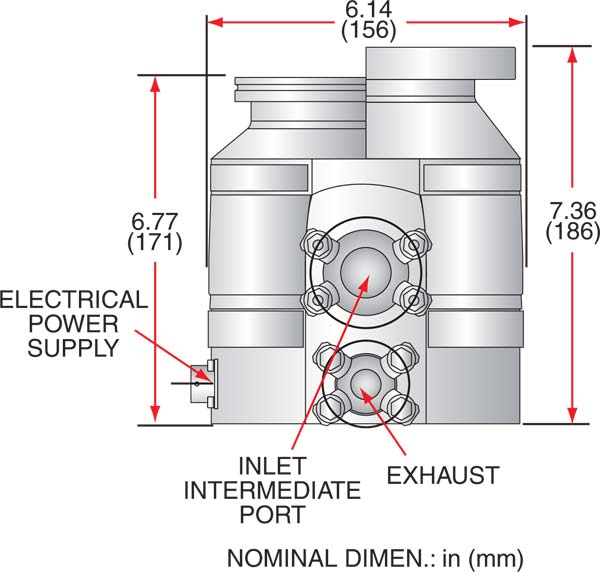

Drawing: Adixen ATH200

Adixen ATH200

Adixen ATH300

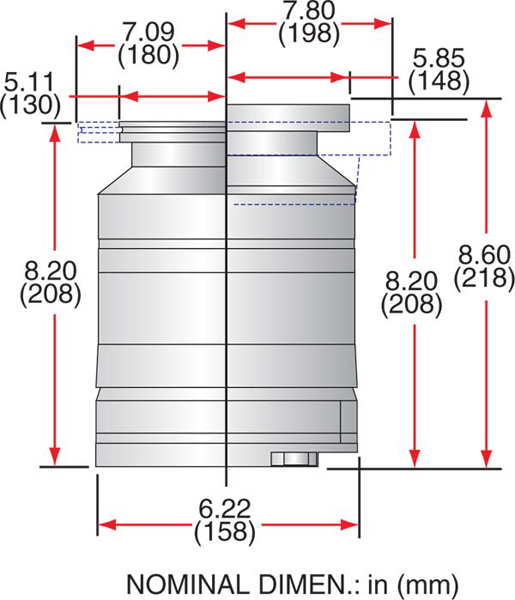

Adixen ATH300CI
