Vacuum Pumps > Turbomolecular Pumps > Turbo Single Stage Pumps > Adixen™ (Alcatel^®)ATP Series

Adixen™ (Alcatel^®) Chemical "C" ATP Series

Two series of turbomolecular single-stage pumps available:

• Standard—For pumping inert gases
• "C"—Designed to operate in corrosive environments

All versions include grease-lubricated, ceramic ball bearings that enable easy maintenance because the bearings can be re-lubricated in the field at scheduled intervals. Bearings can also be replaced in the field because Adixen turbo pumps do not require rotor re-balancing after a bearing change. The use of ceramic ball bearings minimizes bearing temperature by reducing friction and reduces the centrifugal forces exerted on the bearing cage by a factor of two. In addition to reliable performance and easy maintenance, these ceramic bearing pumps offer the versatility of operation in any orientation.

Chemical "C" ATP Series Features:

• Features models with pumping speeds from 80L/sec. to 900L/sec. (larger models listed)
• Produces a clean vacuum down to 10^-10 Torr range
• Suitable for a wide variety of applications in industry and R&D

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	ATP 80C	ATP 100C	ATP 150C	ATP 400C	ATP 900C
Pumping Speed L/sec (cfm)	80	100	140	400	900
Compression Ratios	N2: 8.0 x 107 He: 2.5 x 103 H2: 3.0 x 102	N2: 8.0 x 107 He: 2.5 x 103 H2: 3.0 x 102	N2: 7.0 x 108 He: 1.2 x 104 H2: 1.0 x 103	N2: 7.0 x 108 He: 1.5 x 104 H2: 1.0 x 103	N2: 1.0 x 109 He: 2.0 x 104 H2: 2.0 x 103
Ult. Pressure Torr (mBar)	3.7 x 10-9 (5 x 10-9)	3.7 x 10-9 (5 x 10-9)	3.8 x 10-10 (5 x 10-10)	6 x 10-10 (8 x 10-10)	3.8 x 10-10 (5 x 10-10)
Inlet Flange	ISO63-K or 4-1/2" CF	ISO100-K or 6" CF	ISO100-K or 6" CF	ISO160-K or 8" CF	ISO200-K or 10" CF
Foreline Flange	KF25	KF25	KF25	KF40	KF40
Max. Foreline Press.Torr (mbar)	1.5 x 10-1 (2 x 10-1)	2.3 x 10-1 (3 x 10-1)	3 x 10-1 (4 x 10-1)	1.5 x 10-1 (2 x 10-1)	2.3 x 10-1 (3 x 10-1)
Backing Pump Min.Speed CFM (m3/hr)	3.8 (5.4)	3.8 (5.4)	3.8 (5.4)	10.6 (15)	14.6 (20.7)
Orientation	Any (360°)	Any (360°)	Any (360°)	Any (360°)	Any (360°)
Cooling Method	Air or Water	Air or Water	Air or Water	Air or Water	Air or Water
Weight lbs (kg)	11.7 (5.3)	11.7 (5.3)	14.3 (6.5)	19.8 (9)	40.8 (18.5)

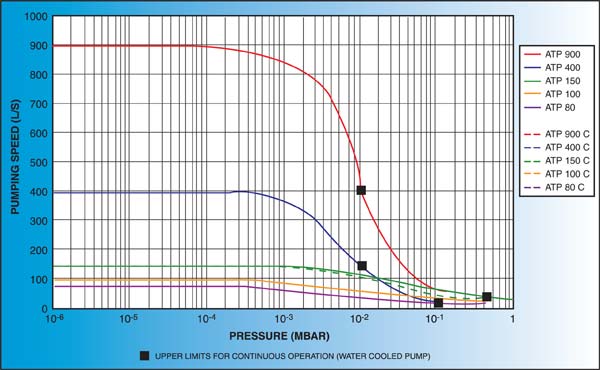

Charts

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

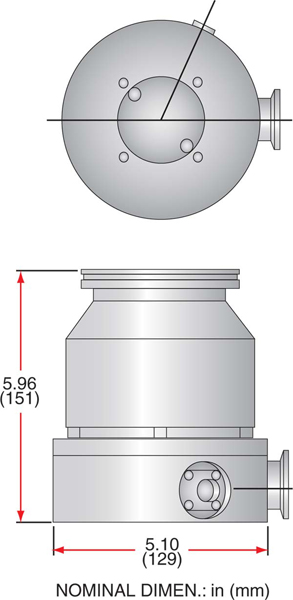

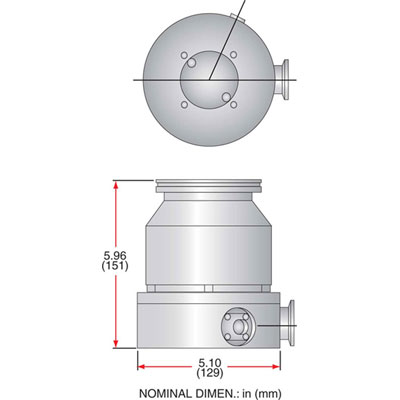

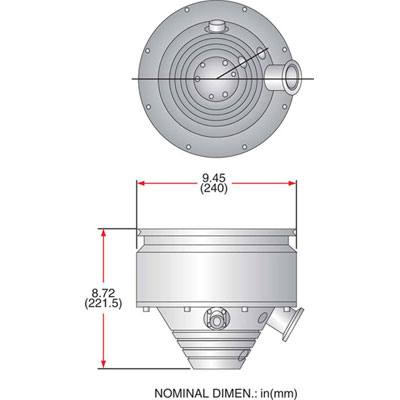

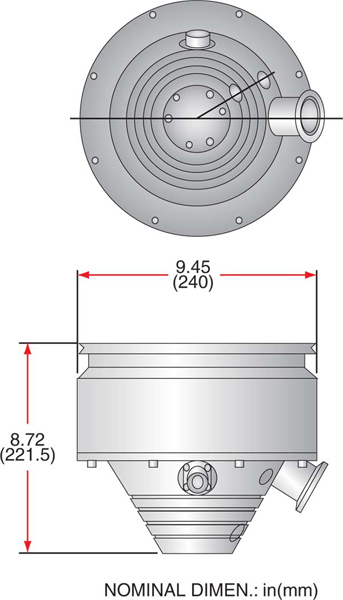

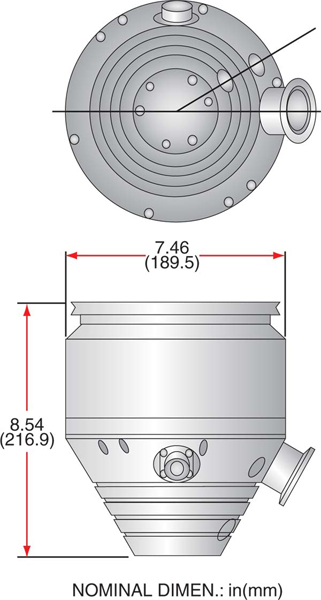

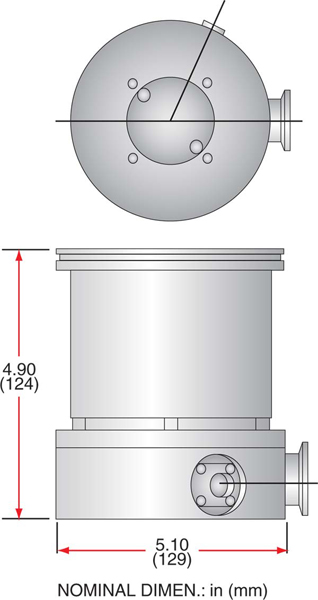

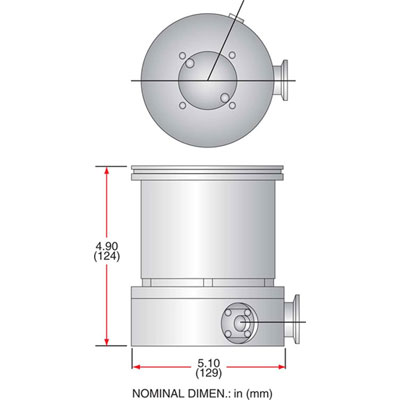

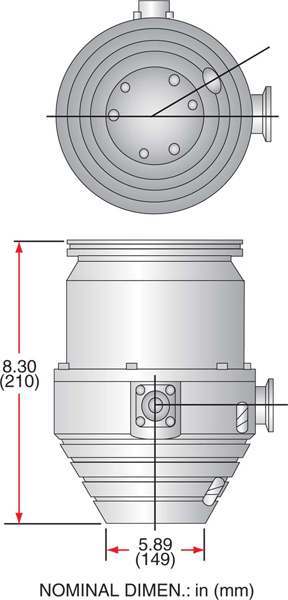

Dimensional Drawings

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Ordering Table

Pump Model	Inlet Flange	Cooling Method	PartNo	Price	Add To Cart
ATP 80C	ISO63-K	Air	AV-F22111	$4,990.00
ATP 80C	ISO63-K	Water	AV-F22121	P.O.R.
ATP 80C	4-1/2" CF	Air	AV-F22211	P.O.R.
ATP 80C	4-1/2" CF	Water	AV-F22221	P.O.R.
ATP 100C	ISO100-K	Air	AV-G23111	P.O.R.
ATP 100C	ISO100-K	Water	AV-G23121	P.O.R.
ATP 100C	6" CF	Air	AV-G23211	P.O.R.
ATP 100C	6" CF	Water	AV-G23221	P.O.R.
ATP 150C	ISO100-K	Air	AV-H23111	P.O.R.
ATP 150C	ISO100-K	Water	AV-H23121	P.O.R.
ATP 150C	6" CF	Air	AV-H23211	P.O.R.
ATP 150C	6" CF	Water	AV-H23221	P.O.R.
ATP 400C	ISO160-K	Air	AV-I24111	P.O.R.
ATP 400C	ISO160-K	Water	AV-I24121	P.O.R.
ATP 400C	8" CF	Air	AV-I24211	P.O.R.
ATP 400C	8" CF	Water	AV-I24221	P.O.R.
ATP 900C	ISO200-K	Air	AV-K25111	P.O.R.
ATP 900C	ISO200-K	Water	AV-K25121	P.O.R.
ATP 900C	10" CF	Air	AV-K25211	P.O.R.
ATP 900C	10" CF	Water	AV-K25221	P.O.R.

ORDERING NOTE: All pumps require the following accessories for operation: Controller, Interconnect Cable, and Power Cord

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

Accessories Table

Description	For Pump Model(s)	PartNo	Price	Add To Cart
ACT 1000T Controller (85–264 VAC, 50/60 Hz)	ATP 900	AV-102021	P.O.R.
ACT 200TH Controller (85-264 VAC, 50/60 Hz)	ATP 80, ATP 100	AV-200004	$1,810.00
ACT 600TH Controller (85–264 VAC, 50/60 Hz)	ATP 150, ATP 400	AV-111692	$2,770.00
Clamp for KF25 Flange	All ATP Series Pumps	QF25-100-C	$8.25
Clamp for KF40 Flange	All ATP Series Pumps	QF40-150-C	$9.30
Inlet Screen for 10" CF Flange (2.5 mm)	ATP 900	AV-063159	P.O.R.
Inlet Screen for 4-1/2" CF Flange (2.5 mm)	ATP 80	AV-063115	$114.00
Inlet Screen for 6" CF Flange (2.5 mm)	ATP 100, ATP 150	AV-056845	$114.00
Inlet Screen for 8" CF Flange (2.5 mm)	ATP 400	AV-056928	$177.00
Inlet Screen for ISO-100 Flange (2.5 mm)	ATP 100, ATP 150	AV-056844	$148.00
Inlet Screen for ISO-160 Flange (2.5 mm)	ATP 400	AV-056942	$203.00
Inlet Screen for ISO-200 Flange (2.5 mm)	ATP 900	AV-063158	$401.00
Inlet Screen for ISO-63 Flange (2.5 mm)	ATP 80	AV-063000	$128.00
Interconnect Cable for 600T/1000T Controller (10 m)	ATP 150, ATP 400, ATP 900	AVA461237100	P.O.R.
Interconnect Cable for 600T/1000T Controller (20 m)	ATP 150, ATP 400, ATP 900	AVA461237200	P.O.R.
Interconnect Cable for 600T/1000T Controller (3.5 m)	ATP 150, ATP 400, ATP 900	AVA461237035	$253.00
Interconnect Cable for 600T/1000T Controller (5 m)	ATP 150, ATP 400, ATP 900	AVA461237050	P.O.R.
Interconnect Cable for ACT 202TH Controller to Pump 3.5 m	ATP 80, ATP 100	AVA463207035	$308.00
Mains Power Cable (Europe Plug)	All ATP Series Pumps	AV-103566	$23.90
Mains Power Cable (U.K. Plug)	All ATP Series Pumps	AV-104411	$63.70
Mains Power Cable (U.S. Plug)	All ATP Series Pumps	AV-14487	$8.00
Vent Valve 115 VAC, 50/60 Hz (KF25 Flanged)	ATP 80, ATP 100, ATP 150	AV-063089	$585.00
Vent Valve 115 VAC, 50/60 Hz (KF40 Flanged)	ATP 400	AV-063099	$732.00
Vent Valve 12 VDC (KF40 Flanged)	ATP 900	AV-101923	P.O.R.
Vent Valve 24 VDC (KF25 Flanged)	ATP 80, ATP 100, ATP 150	AV-108348	P.O.R.
Vent Valve 24 VDC (KF40 Flanged)	ATP 400	AV-108349	$585.00
Vent Valve 240 VAC, 50/60 Hz (KF25 Flanged)	ATP 80, ATP 100, ATP 150	AV-063177	$585.00
Vent Valve 240 VAC, 50/60 Hz (KF40 Flanged)	ATP 400	AV-063478	P.O.R.
Viton® Centering Ring for KF25 Flange	All ATP Series Pumps	QF25-100-SRV	$8.25
Viton® Centering Ring for KF40 Flange	All ATP Series Pumps	QF40-150-SRV	$12.40

Questions? Email us:   [USA]   |   [Canada]   |   [Europe]   |   [China]   |   [Rest of World]

---
