Vacuum Pumps

Adixen™ (Alcatel^®) Standard ATP Series

Two series of turbomolecular single-stage pumps available:

Standard—For pumping inert gases
"C"—Designed to operate in corrosive environments

All versions include grease-lubricated, ceramic ball bearings that enable easy maintenance because the bearings can be re-lubricated in the field at scheduled intervals. Bearings can also be replaced in the field because Adixen turbo pumps do not require rotor re-balancing after a bearing change. The use of ceramic ball bearings minimizes bearing temperature by reducing friction and reduces the centrifugal forces exerted on the bearing cage by a factor of two. In addition to reliable performance and easy maintenance, these ceramic bearing pumps offer the versatility of operation in any orientation.

Standard ATP Series Features:

Features models with pumping speeds from 80L/sec. to 900L/sec. (larger models listed)
Produces a clean vacuum down to 10^-10 Torr range
Suitable for a wide variety of applications in industry and R&D

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	ATP 100	ATP 150	ATP 400	ATP 80	ATP 900
Pumping Speed L/sec (cfm)	100	140	400	80	900
Compression Ratios	N₂: 8.0 x 10⁷ He: 2.5 x 10³ H₂: 3.0 x 10²	N₂: 7.0 x 10⁸ He: 1.2 x 10⁴ H₂: 1.0 x 10³	N₂: 7.0 x 10⁸ He: 1.5 x 10⁴ H₂: 1.0 x 10³	N₂: 8.0 x 10⁷ He: 2.5 x 10³ H₂: 3.0 x 10²	N₂: 1.0 x 10⁹ He: 2.0 x 10⁴ H₂: 2.0 x 10³
Ult. Pressure Torr (mBar)	3.7 x 10^-9 (5 x 10^-9)	3.8 x 10^-10 (5 x 10^-10)	6 x 10^-10 (8 x 10^-10)	3.7 x 10^-9 (5 x 10^-9)	3.8 x 10^-10 (5 x 10^-10)
Inlet Flange	ISO100-K or 6" CF	ISO100-K or 6" CF	ISO160-K or 8" CF	ISO63-K or 4-1/2" CF	ISO200-K or 10" CF
Foreline Flange	KF25	KF25	KF40	KF25	KF40
Max. Foreline Press.Torr (mbar)	2.3 x 10^-1 (3 x 10^-1)	3 x 10^-1 (4 x 10^-1)	1.5 x 10^-1 (2 x 10^-1)	1.5 x 10^-1 (2 x 10^-1)	2.3 x 10^-1 (3 x 10^-1)
Backing Pump Min.Speed CFM (m3/hr)	3.8 (5.4)	3.8 (5.4)	10.6 (15)	3.8 (5.4)	14.6 (20.7)
Orientation	Any (360°)	Any (360°)	Any (360°)	Any (360°)	Any (360°)
Cooling Method	Air or Water	Air or Water	Air or Water	Air or Water	Air or Water
Weight lbs (kg)	11.7 (5.3)	14.3 (6.5)	19.8 (9)	11.7 (5.3)	40.8 (18.5)

Pumping Speed Charts

Click on a thumbnail image to open the pump curve in a new window.

Adixen_ATPSeries

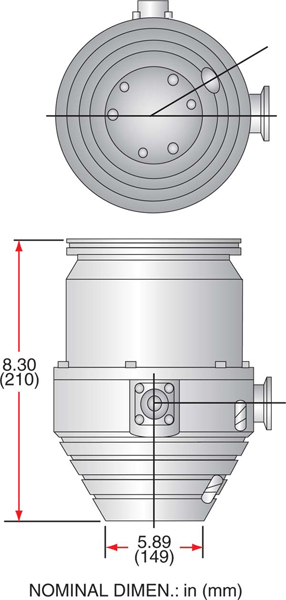

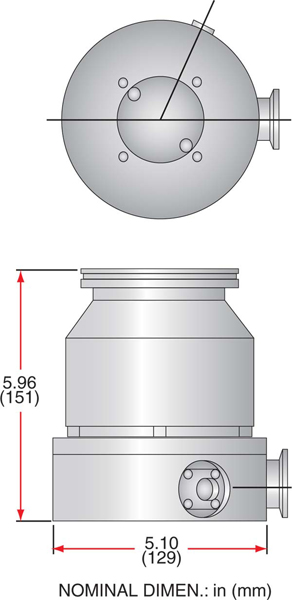

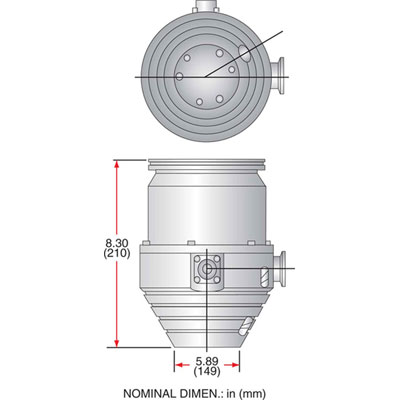

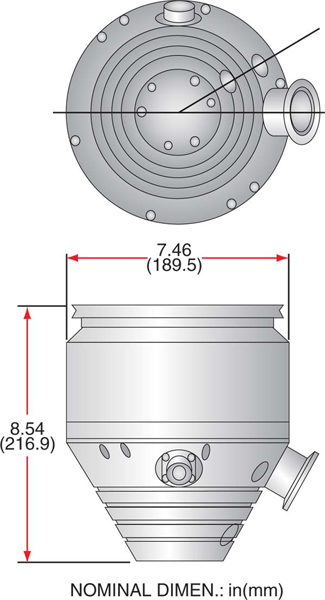

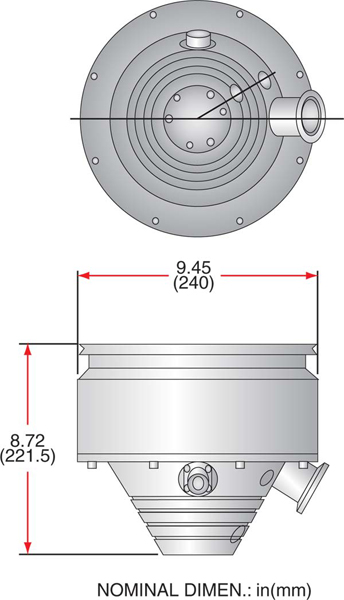

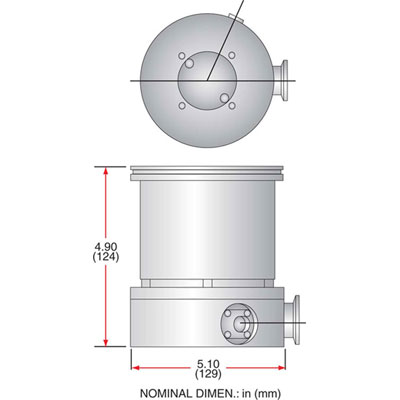

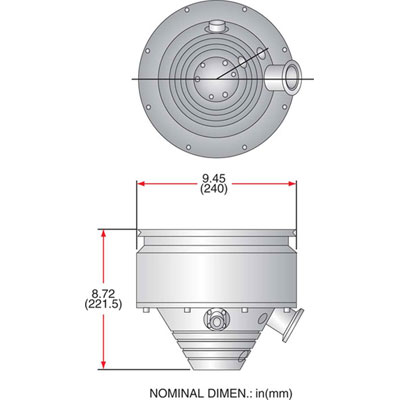

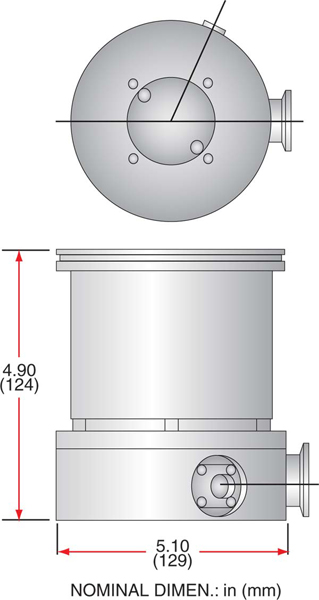

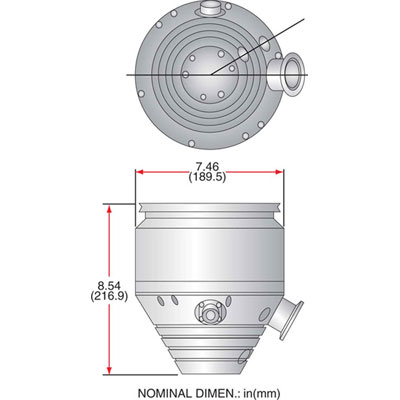

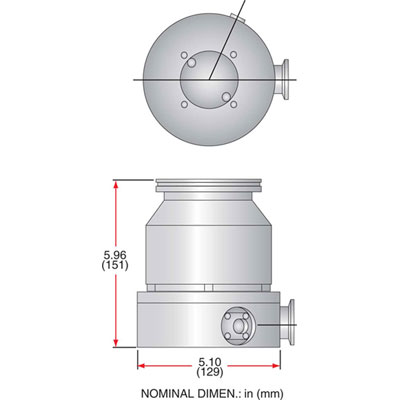

Dimensional Drawings

Click on a thumbnail image to open the pump drawing in a new window.


Adixen_ATP80	Adixen_ATP100	Adixen_ATP150	Adixen_ATP400	Adixen_ATP900

Ordering Table

Pump Model	Inlet Flange	Cooling Method	PartNo
ATP 100	ISO100-K	Air	AV-G13111
ATP 100	ISO100-K	Water	AV-G13121
ATP 100	6" CF	Air	AV-G13211
ATP 100	6" CF	Water	AV-G13221
ATP 150	ISO100-K	Air	AV-H13111
ATP 150	ISO100-K	Water	AV-H13121
ATP 150	6" CF	Air	AV-H13211
ATP 150	6" CF	Water	AV-H13221
ATP 400	ISO160-K	Air	AV-I14111
ATP 400	ISO160-K	Water	AV-I14121
ATP 400	8" CF	Air	AV-I14211
ATP 400	8" CF	Water	AV-I14221
ATP 80	ISO63-K	Air	AV-F12111
ATP 80	ISO63-K	Water	AV-F12121
ATP 80	4-1/2" CF	Air	AV-F12211
ATP 80	4-1/2" CF	Water	AV-F12221
ATP 900	ISO200-K	Air	AV-K15111
ATP 900	ISO200-K	Water	AV-K15121
ATP 900	10" CF	Air	AV-K15211
ATP 900	10" CF	Water	AV-K15221
