Molecular Drag Turbo Pumps - Adixen™ (Alcatel^®) MDP Series


Features:

Features three stages
First stage—turbo-like stage that uses a fast-moving row of blades to strike gas molecules into the pump, ensuring maximum conductance while increasing the pump's overall pumping speed
Second stage—includes a ribbed drum (the main operating mechanism of the pump; see the Technical Notes at the beginning of this section)
Third stage—a stage with a dynamic seal that enables the pump to operate with high exhaust pressures

Model MDP 5011:

Offers low pumping speed for applications that demand the fast evacuation of a small-volume chamber and an oil-free environment—for example, a small load lock
Used as an intermediate backing pump for a high-speed turbomolecular pump

The drag pump's compression ratio (CR) acts as a multiplier for the turbo pump’s CR. For example:

If, for H2, the turbo pump's CR is 10³ and the drag pump/s CR is 10³, the combination has a CR of 10⁶. That is, if the H2 partial pressure in the drag pump’s foreline is 10^-4 Torr, then the partial pressure in the chamber is 10^-10 Torr.

The drag pump's ability to accept high gas throughput, its ruggedness, and resistance to damage when suddenly vented to air, give it the advantage in applications such as:

The freeze-drying of specimens
The pumping of sample stages in the microscopy and spectrometry of biological samples

ORDERING NOTE: Inlet screens, controllers, interconnect, and mains power cables for all MDP 5011 turbo pumps are sold separately.

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Specifications Table

Pump Model	MDP 5011	MDP 5011 CP
Pumping Speed L/sec (cfm)	7.5	7.5
Compression Ratios	N₂: 1.0 x 10⁹ He: 2.0 x 10⁴ H₂: 1.0 x 10³	N₂: 1.0 x 10⁶ He: 250 H₂: 50
Ult. Pressure Torr (mBar)	7.5 x 10^-7 (1 x 10^-6)	7.5 x 10^-7 (1 x 10^-6)
Inlet Flange	ISO63-K	ISO63-K
Foreline Flange	KF16	KF16
Max. Foreline Press.Torr (mbar)	30 (40)	3.75 (5)
Backing Pump Min.Speed CFM (m3/hr)	0.59 (1)	0.59 (1)
Orientation	Any (360°)	Any (360°)
Cooling Method	Air or Water	Air or Water
Weight lbs (kg)	6.6 (3)	6.6 (3)

Charts

Adixen MDP5011

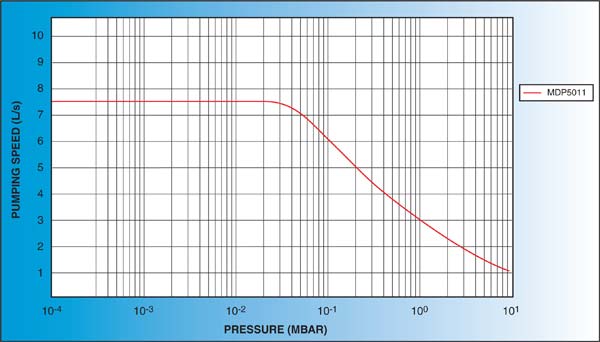

Chart: Adixen MDP5011

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

Dimensional Drawings

Adixen MDP5011

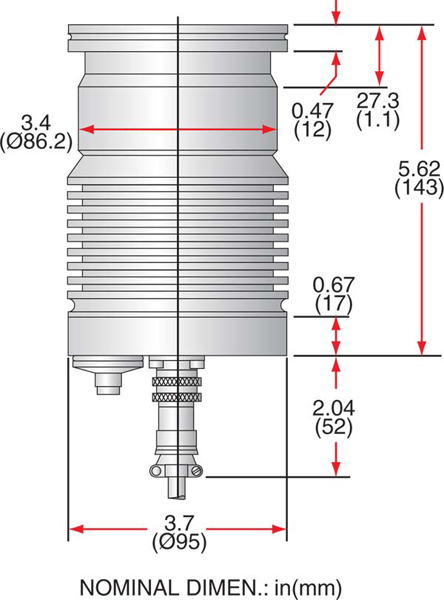

Drawing: Adixen MDP5011

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

Ordering Table

Pump Model	Inlet Flange	Cooling Method	PartNo	Price
MDP 5011 (100/115 VAC, 50/60 Hz)	ISO63-K	Air	AV-795602	$3,080.00
MDP 5011	ISO63-K	Water	AV-795604	$3,080.00
MDP 5011CP (200/230 VAC, 50/60 Hz)	ISO63-K	Air	AV-795650	P.O.R.
MDP 5011 (200/230 VAC, 50/60 Hz)	ISO63-K	Air	AV-795601	P.O.R.
MDP 5011CP (100/115 VAC, 50/60 Hz)	ISO63-K	Air	AV-798073	P.O.R.
MDP 5011CP	ISO63-K	Water	AV-795652	P.O.R.

Questions? Email us: [USA] | [Canada] | [Europe] | [China] | [Rest of World]

Accessories Table

Description	For Pump Model(s)	PartNo	Price
ACT 100 Controller (115 VAC, 50/60 Hz)	MDP 5011	AV-111156	$1,520.00
ACT 100 Controller (230 VAC, 50/60 Hz)	MDP 5011	AV-111158	P.O.R.
Clamp for KF16 Flange	MDP 5011	QF16-075-C	$6.20
Inlet Screen for ISO-63 Flange (2.5 mm)	MDP 5011	AV-063117	$128.00
Interconnect Cable for ACT 100 Controller (3.5 m)	MDP 5011	AVA461868035	P.O.R.
Interconnect Cable for ACT 100 Controller (5 m)	MDP 5011	AVA461868050	P.O.R.
Mains Power Cable for ACT Controllers (European plug)	MDP 5011	AV-104411	$63.70
Mains Power Cable for ACT Controllers (U.K. plug)	MDP 5011	AV-103566	$23.90
Mains Power Cable for ACT Controllers (U.S. plug)	MDP 5011	AV-14487	$8.00
Vent Valve (115 VAC, 50/60 Hz)	MDP 5011	AV-063171	$585.00
Vent Valve (240 VAC, 50/60 Hz)	MDP 5011	AV-063172	P.O.R.
Viton^® Centering Ring for KF16 Flange	MDP 5011	QF16-075-SRV	$6.20
