Vacuum Pumps > Turbomolecular Pump Stations

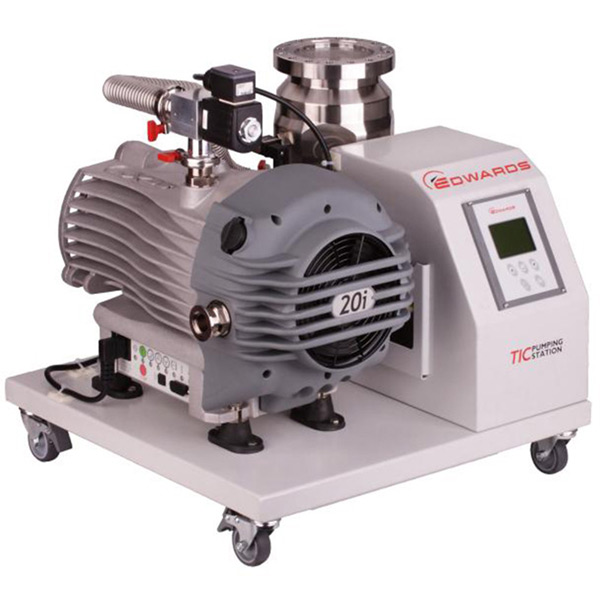

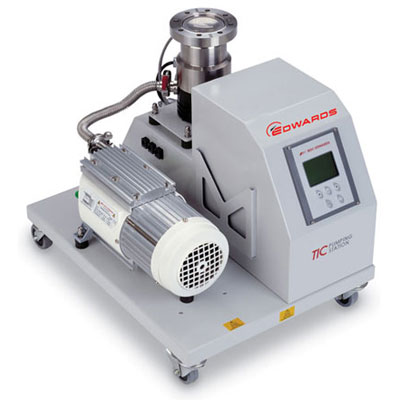

Edwards EXT/DX TIC Controlled Pumping Stations

Edwards combines the proven design of their EXT/DX Series turbo pumps with a backing pump in an integrated unit.

Features:

  • Fully assembled turnkey pumping solution
  • Turbo pump and backing pump with integrated TIC controller
  • Rotary vane or scroll backing pumps available
  • System start/stop from on-board controller
  • Pumping and gauge control from integrated TIC controller
  • RS232 and RS485 communication protocols available
  • Integrated air-cooling kit
  • Ultimate pressures to 5 x 10-10 mbar (CF flange models)

Applications:

  • UHV systems
  • Beam lines
  • Load locks
  • Surface science
  • Surface science

Accessories:

  • Gauge heads and cables(order separately)
  • Oil mist eliminators(included)

Reman Pumps

(Click on a thumbnail image for more Reman Pumps information in a new window.)

Reman Pumps

Ordering Table

Pump
Model
Turbo
Pump Model
Inlet
Flange
Backing
Pump Model
Backing
Pump Type
Accessories Ultimate Pressure
(mbar)
Manual PartNo Price Add To Cart
EXT/DX TIC Controlled Pumping Stations
nEXT240D
ISO100-K
RV5
Rotary Vane
TAV5 Vent Valve
6 X 10-8
Download PDF
ED-TSB421002 P.O.R.
EXT/DX TIC Controlled Pumping Stations
nEXT240D
ISO100-K
XDS5
Scroll
TAV5 Vent Valve
6 X 10-8
Download PDF
ED-TSB4B1002 P.O.R.
EXT/DX TIC Controlled Pumping Stations
nEXT240D
6" CF
RV5
Rotary Vane
TAV5 Vent Valve
5 X 10-10
Download PDF
ED-TSB521002 P.O.R.
EXT/DX TIC Controlled Pumping Stations
nEXT240D
6" CF
XDS5
Scroll
TAV5 Vent Valve
5 X 10-10
--
ED-TSB5B1002 $18,668.00
EXT/DX TIC Controlled Pumping Stations
EXT75DX
ISO63-K
E2M1.5
Rotary Vane
TAV5 Vent Valve
5 X 10-9
--
ED-TSM211002 $11,475.00
EXT/DX TIC Controlled Pumping Stations
EXT75DX
ISO63-K
XDS5
Scroll
TAV5 Vent Valve
5 X 10-8
Download PDF
ED-TSM2B1002 P.O.R.
EXT/DX TIC Controlled Pumping Stations
EXT75DX
4-1/2" CF
E2M1.5
Rotary Vane
TAV5 Vent Valve
5 X 10-10
Download PDF
ED-TSM311002 P.O.R.
EXT/DX TIC Controlled Pumping Stations
EXT75DX
4-1/2" CF
XDS5
Scroll
TAV5 Vent Valve
5 X 10-9
Download PDF
ED-TSM3B1002 P.O.R.

Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please e-mail international@lesker.com.
