Cylindrical Chamber Assemblies

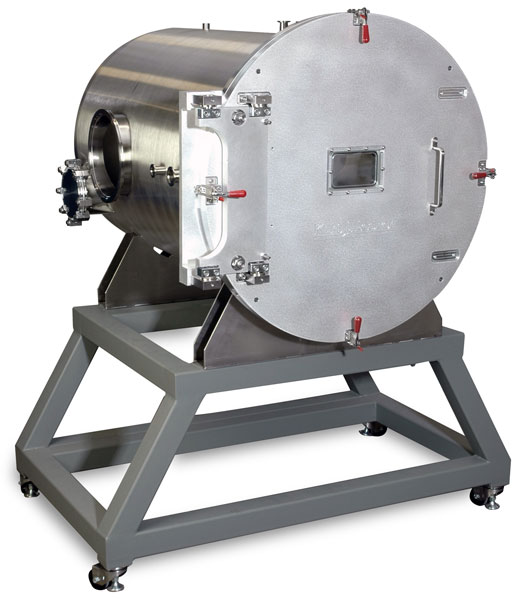

Our standard range of Horizontal chamber assemblies are available with a welded, dome end on one side and a hinged, aluminum door on the opposite end. The chamber assembly can be mated with a standard aluminum frame.

Standard Features:

Chamber body manufactured from 304 Stainless Steel
Chamber door manufactured from 6061-T6 aluminum
The aluminum door features a dovetailed o-ring groove, and includes a Viton^® o-ring and rectangular viewport with safety cover (Viton^® o-ring sealed in center of the door with a viewing area of 3-1/4" x 5-1/4")
QF utility ports
Mounting feet

Available Options:

Replace QF utility ports with CF style ports and/or add additional flanged ports
Water Trace Cooling available
Standard Frames
Customer specific options as needed

Ordering Table

Chamber O.D.	Door O.D.	OAL	Ports	Approx. Weight	PartNo	VacuCAD^SM (Click to login)
18.38"	22"	24.18	(2) QF40, (1) QF160-SWK	272 lbs.	CA1821S	(please login)
18.38"	22"	33.19	(2) QF40, (1) QF160-SWK, (1) QF250-SWK	301 lbs.	CA1830S	(please login)
24"	28"	33.19	(2) QF40, (1) QF160-SWK, (1) QF250-SWK	440 lbs.	CA2430S	(please login)
30"	34"	33.41	(2) QF40, (1) QF160-SWK, (1) QF250-SWK	420 lbs.	CA3030S	(please login)
30"	34"	53.41	(2) QF40, (1) QF160-SWK, (1) QF250-SWK	522 lbs.	CA3050S	(please login)
