Vacuum Chambers
Download the Catalog Page PDF Download PDF of this product
from our 8th Ed. Catalog


Box Chambers

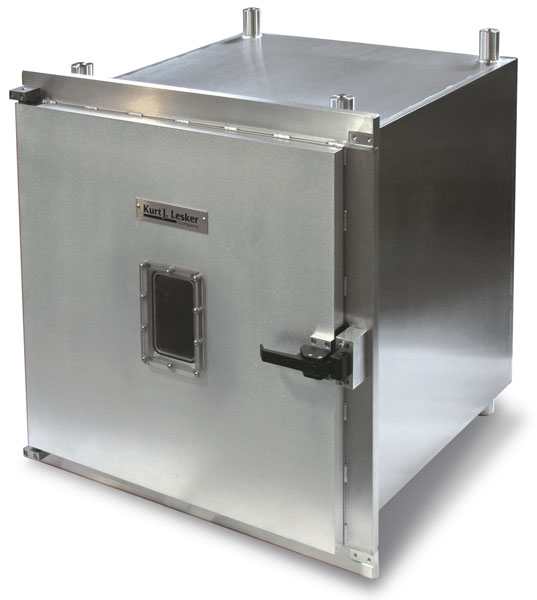

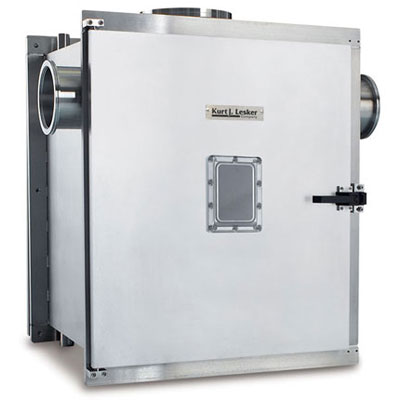

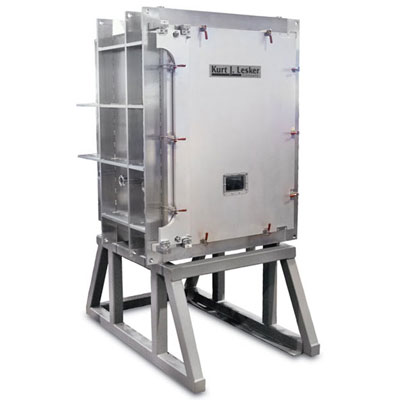

Box chambers are rectangular vacuum vessels often with large entry doors. Characteristically, the door is o-ring sealed, mounted on hinges that support the door's weight, and have a single closure/clamp device.

Box chambers are often selected for applications that require

  • Temporary shields—to prevent deposition or outgassing products sticking to the chamber walls
  • Outgassing of large components—since the door allows access
  • Batch evaporation or sputter coating—where component cycle-time is short and product changes/pump down is frequent
  • Outgassing, de-aeration, impregnation—with short cycle times and quick product turn-around.
  • Frequent pump downs—since that implies frequent door openings for which the hinged, single clamp door is convenient

Standard Features

  • 304 stainless steel plate with ISO utility ports and a 6061 aluminum hinged door
  • Aluminum door features a dovetailed–o-ring groove and includes a Viton® o-ring
  • Rectangular view port in center of door (viewing area of 3-1/4" x 5-1/4")
  • O-ring sealing box chambers are capable of reaching pressures in the 10-7 torr range—clean, dry, and empty

Standard Sizes

  • 12" x 12" x 24" (30.5 x 30.5 x 61cm) I.D.
  • 24" x 24" x 24" (61 x 61 x 61cm) I.D.
  • 24" x 24" x 30" (61 x 61 x 76cm) I.D.

Available Options

  • Replace KF port with CF style port and/or add additional flanged ports
  • Water cooling—trace
  • Standard pumping and gauging packages
  • Standard frames—carbon steel and extruded aluminum with or without rack mounting

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

  • Dimensional 2D Drawings in Adobe PDF format
  • Engineering Files in DXF (2D) and STP (3D) formats
  • Interactive 3D Models using the free IPA Webview Plugin (MS IE 5.5 or higher required)

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.

Dimensional Drawings

Click on a thumbnail image to open the drawing in a new window.
Click to view Dwg_BX1224S.jpg Click to view Dwg_BX2424S.jpg Click to view Dwg_24x24x30_2D.jpg
BX1224S BX2424S 24x24x30_2D

Ordering Table

Description Ports Drawing 2D CAD 3D CAD 3D Model PartNo Price
(USA)
Add To Cart
12"x12"x24" Box Chamber (2) KF40
(1) ISO100
PDF DXF STP WebView BX1224S $5,540.00
24"x24"x24" Box Chamber (2) KF40
(1) ISO100
PDF DXF STP WebView BX2424S $10,250.00
24"x24"x30" Box Chamber (4) KF40
(1) ISO160
PDF DXF STP WebView BX2430S $15,375.00
