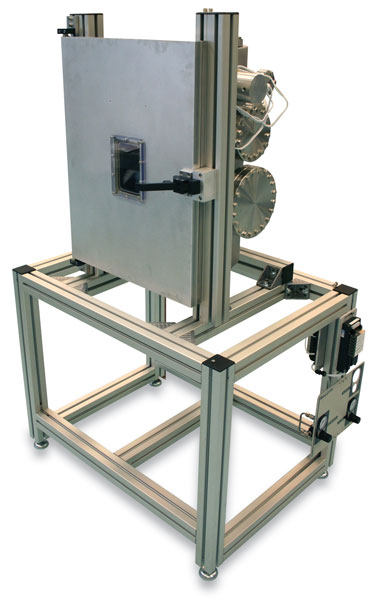

D-Shape Chambers

The D-shape chamber combines the best features of cylindrical and box chamber designs. It features a box chamber's large area access door coupled with the cylindrical chamber's thin wall and compatibility with disk-shaped substrate fixtures.

Standard Features

Body constructed from 304 stainless steel
ISO-F style ports machined into the top and bottom with aluminum blanking flanges and aluminum centering rings with fluorocarbon o-ring and clamps
ISO-K style half nipple utility ports on rear

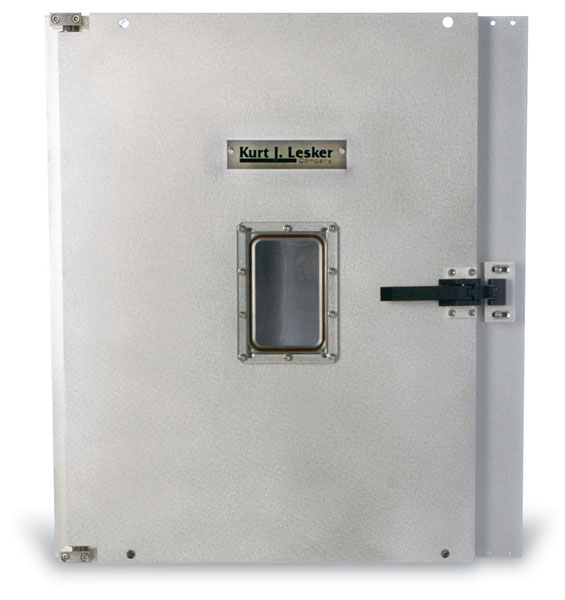

6061 aluminum hinged door features a dovetailed–o-ring groove and includes a Viton^® o-ring
Rectangular view port in center of door (viewing area of 3-1/4" x 5-1/4")
Extruded aluminum frame
O-ring sealing d-shape chambers are capable of reaching pressures in the 10^-7 torr range—clean, dry, and empty

Standard Sizes

14" x 25.25" x 14.69" (35.56 x 64.13 x 37.31cm) I.D.

Available Options

Replace KF port with CF style port and/or add additional flanged ports
Water cooling—trace
Standard pumping and gauging packages
Replace standard "open" frame with rack mounting frame
Door swing -- left or right side hinge mount

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

Dimensional 2D Drawings in Adobe PDF format
Engineering Files in DXF (2D) and STP (3D) formats
Interactive 3D Models using the free IPA Webview Plugin (MS IE 5.5 or higher required)

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.

Dimensional Drawings

Click on a thumbnail image to open the drawing in a new window.

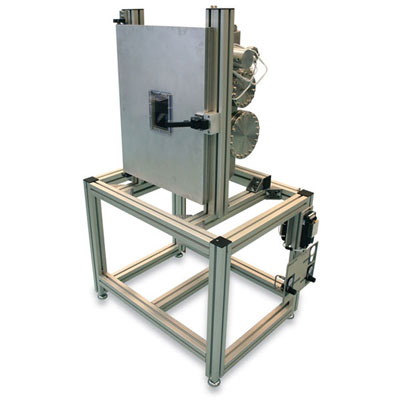

D-ShapeChamber

Ordering Table

Description	Ports	Drawing	2D CAD	3D CAD	3D Model	PartNo	Price (USA)	Add To Cart
D-Shape w/ Aluminum Door	(1) ISO100-F (1) ISO160-F (2) ISO250-K	PDF	N/A	N/A	N/A	DS1425S	$9,650.00
