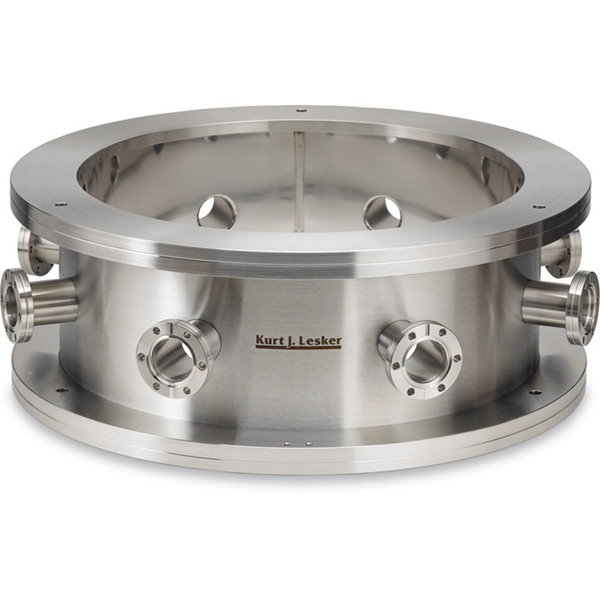

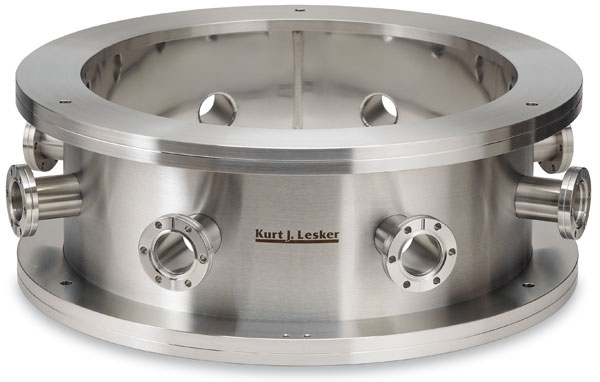

Dovetail O-Ring Grooved Flange


Our standard range of Feedthrough Collars is available in both dovetail o-ring grooved and standard ISO flange mounting configurations. The Feedthrough Collar can be used with our line of Pyrex or Metal Bell Jars, Service Wells, and Endplates.

Standard Features:

• Chamber Body Manufactured from 304 Stainless Steel
• Viton O-ring Included
• CF or KF Utility Ports
• Capable of Reaching High Vacuum (HV) Levels
• Mounting Holes

Available Options:

• Customizable Port Configuration (Change/Move/Add/Subtract Ports)
• Water Cooling – Trace & Double-Wall Configurations Available

Dovetail O-Ring Grooved Flange Features:

• Standard Outer Body Diameter Sizes of 12", 18-3/8", 24", and 30" Available
• Dovetail O-ring Groove One End, Flat Sealing Surface Opposite End

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

• Dimensional 2D Drawings in Adobe PDF format
• Engineering Files in DXF (2D) and STP (3D) formats
• Interactive 3D Models using the free IPA Webview Plugin (MS IE 5.5 or higher required)

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.

Custom Feedthrough Collar Chamber Builder

Need a Custom fit? Try our Custom Feedthrough Collar Chamber Builder. Custom Chamber Builder interface requires Adobe Acrobat reader and a VacuCAD account.

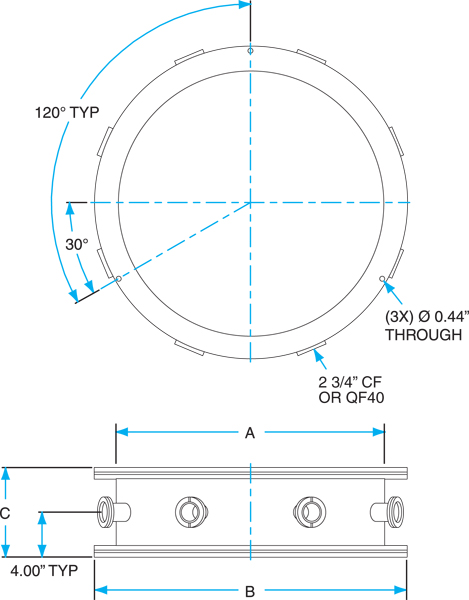

Dimensional Drawings

FTCollars

Drawing: FTCollars

Ordering Table

Compatible Parts	Ports	Dim. (A)	Dim. (B)	Dim. (C)	PartNo	Price	Add To Cart	VacuCADSM
	(6) x 2.75" CF	12.00	16.00	8.00	FT1208SU	$3,270.00		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ1212SU SW1208SU FT1208SU BP1200SUO BP1200SU BJ1212SUQ SW1208SUQ FT1208SUQ BP1200SUQO BP1200SUQ BJ1212SUBKT - - BP1200SUAO BP1200SUA
	(8) x 2.75" CF	18.38	22.00	8.00	FT1808SU	$4,345.00		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ1819SU SW1808SU FT1808SU BP1800SUO BP1800SU BJ1819SUQ SW1808SUQ FT1808SUQ BP1800SUQO BP1800SUQ BJ1819SUBKT SW1808SUG FT1808SUG BP1800SUAO BP1800SUA BJ1829SU SW1808SUQG FT1808SUQG - - BJ1829SUQ - - - - BJ1829SUBKT - - - -
	(8) x 2.75" CF	18.38	22.00	8.13	FT1808SUG	$4,445.00		(please login)
Glass Cylinder (Mates to Flat End) Glass Bell Jar (Mates to Flat End) Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) CY18X12 BJ18X12 BJ1819SU SW1808SU FT1808SU BP1800SUO BP1800SU CY18X18 BJ18X18 BJ1819SUQ SW1808SUQ FT1808SUQ BP1800SUQO BP1800SUQ CY18X21 BJ18X24 BJ1819SUBKT SW1808SUG FT1808SUG BP1800SUAO BP1800SUA - BJ18X30 BJ1829SU SW1808SUQG FT1808SUQG - - - - BJ1829SUQ - - - - - - BJ1829SUBKT - - - -
	(8) x 2.75" CF	24.00	28.00	8.00	FT2408SU	$4,870.00		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ2429SU SW2408SU FT2408SU BP2400SUO BP2400SU BJ2429SUQ SW2408SUQ FT2408SUQ BP2400SUQO BP2400SUQ BJ2429SUBKT - - BP2400SUAO BP2400SUA
	(8) x 2.75" CF	30.00	34.00	8.00	FT3008SU	P.O.R.		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ3028SU SW3008SU FT3008SU BP3000SUO BP3000SU BJ3028SUQ SW3008SUQ FT3008SUQ BP3000SUQO BP3000SUQ BJ3028SUBKT - - BP3000SUAO BP3000SUA
	(6) x QF40	12.00	16.00	8.00	FT1208SUQ	P.O.R.		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ1212SU SW1208SU FT1208SU BP1200SUO BP1200SU BJ1212SUQ SW1208SUQ FT1208SUQ BP1200SUQO BP1200SUQ BJ1212SUBKT - - BP1200SUAO BP1200SUA
	(8) x QF40	18.38	22.00	8.00	FT1808SUQ	P.O.R.		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ1819SU SW1808SU FT1808SU BP1800SUO BP1800SU BJ1819SUQ SW1808SUQ FT1808SUQ BP1800SUQO BP1800SUQ BJ1819SUBKT SW1808SUG FT1808SUG BP1800SUAO BP1800SUA BJ1829SU SW1808SUQG FT1808SUQG - - BJ1829SUQ - - - - BJ1829SUBKT - - - -
	(8) x QF40	18.38	22.00	8.13	FT1808SUQG	P.O.R.		(please login)
Glass Cylinder (Mates to Flat End) Glass Bell Jar (Mates to Flat End) Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) CY18X12 BJ18X12 BJ1819SU SW1808SU FT1808SU BP1800SUO BP1800SU CY18X18 BJ18X18 BJ1819SUQ SW1808SUQ FT1808SUQ BP1800SUQO BP1800SUQ CY18X21 BJ18X24 BJ1819SUBKT SW1808SUG FT1808SUG BP1800SUAO BP1800SUA - BJ18X30 BJ1829SU SW1808SUQG FT1808SUQG - - - - BJ1829SUQ - - - - - - BJ1829SUBKT - - - -
	(8) x QF40	24.00	28.00	8.00	FT2408SUQ	P.O.R.		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ2429SU SW2408SU FT2408SU BP2400SUO BP2400SU BJ2429SUQ SW2408SUQ FT2408SUQ BP2400SUQO BP2400SUQ BJ2429SUBKT - - BP2400SUAO BP2400SUA
	(8) x QF40	30.00	34.00	8.00	FT3008SUQ	P.O.R.		(please login)
Metal Bell Jar (Mates to Flat End) Service Well (Mates to Grooved End) Feedthrough Collar (Mates to Either End) Baseplate (Mates to Flat End) Baseplate (Mates to Grooved End) BJ3028SU SW3008SU FT3008SU BP3000SUO BP3000SU BJ3028SUQ SW3008SUQ FT3008SUQ BP3000SUQO BP3000SUQ BJ3028SUBKT - - BP3000SUAO BP3000SUA
