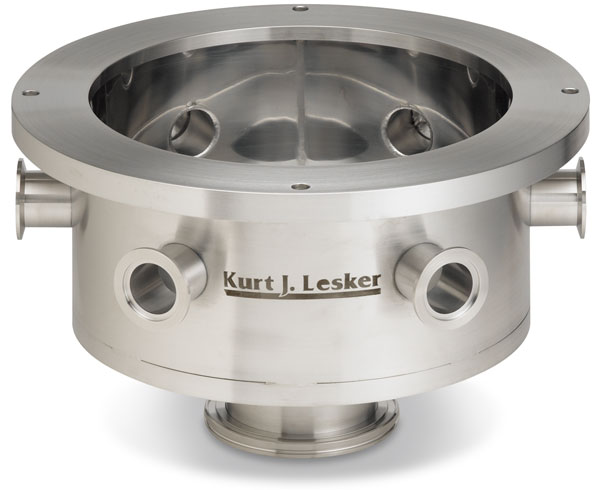

Dovetail O-Ring Grooved Flange


Our standard range of Service Wells is available in both dovetail o-ring grooved and standard ISO flange mounting configurations. The Service Well can be used with our line of Bell Jars, Feedthrough Collars, and Endplates.

Standard Features:

• Chamber Body Manufactured from 304 Stainless Steel
• CF or KF/ISO Utility Ports
• Capable of Reaching High Vacuum (HV) Levels

Available Options:

• Customizable Port Configuration (Change/Move/Add/Subtract Ports)
• Water Cooling – Trace & Double-Wall Configurations Available
• Standard Frames – Carbon Steel

Dovetail O-Ring Grooved Flange Features:

• Standard Outer Body Diameter Sizes of 12", 18-3/8", 24”, and 30" Available
• Flat Sealing Surface on Open End
• Pumping Port(s) & Frame/Table Mounting Holes Closed End

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

• Dimensional 2D Drawings in Adobe PDF format
• Engineering Files in DXF (2D) and STP (3D) formats
• Interactive 3D Models using the free IPA Webview Plugin (MS IE 5.5 or higher required)

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.

Custom Service Wells Chamber Builder

Need a Custom fit? Try our Custom Service Wells Chamber Builder. Custom Chamber Builder interface requires Adobe Acrobat reader and a VacuCAD account.

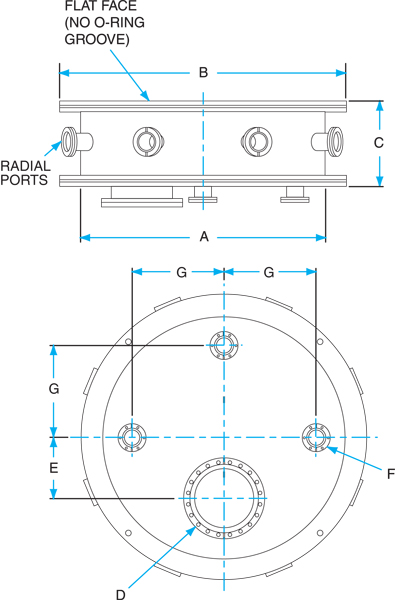

Dimensional Drawings

ServiceWell Dovetail

Drawing: ServiceWell Dovetail

Ordering Table

Compatible Parts	Radial Ports	Dim. (A)	Dim. (B)	Dim. (C)	Dim. (D)	Dim. (E)	Dim. (F)	Dim. (G)	PartNo	Price	Add To Cart	VacuCADSM
	(6) x 2.75" CF	12.00"	16.00"	8.38"	6"CF	0"	N/A	N/A	SW1208SU	$3,335.00		(please login)
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ1212SU FT1208SU BP1200SUO FRMC-S010-B BJ1212SUBKT FT1208SUQ BP1200SUAO BJ1212SUQ - BP1200SUQO
	(8) x 2.75" CF	18.38"	22.00"	8.38"	8"CF	5.25"	2.75"CF	6.50"	SW1808SU	$4,570.00		(please login)
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ1819SU FT1808SU BP1800SUO FRMC-S011-B BJ1819SUBKT FT1808SUG BP1800SUAO FRMC-S011-D BJ1829SUQ FT1808SUQ BP1800SUQO FRMC-S011-C BJ1819SUQ FT1808SUQG - - BJ1829SU - - - BJ1829SUBKT - - -
	(8) x 2.75" CF	18.38"	22.00"	8.5"	8"CF	5.25"	2.75"CF	6.50"	SW1808SUG	$4,625.00		(please login)
Glass Cylinder (Both Ends) Glass Bell Jar Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame CY18X12 BJ18X12 BJ1819SU FT1808SU BP1800SUO FRMC-S011-B CY18X18 BJ18X18 BJ1819SUQ FT1808SUQ BP1800SUQO FRMC-S011-C CY18X21 BJ18X24 BJ1819SUBKT FT1808SUG BP1800SUAO FRMC-S011-D - BJ18X30 BJ1829SU FT1808SUQG - - - - BJ1829SUQ - - - - - BJ1829SUBKT - - -
	(8) x 2.75" CF	24.00"	28.00"	8.38"	8"CF	6.00"	2.75"CF	9.00"	SW2408SU	$5,625.00		(please login)
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ2429SU FT2408SU BP2400SUO FRMC-S012-C BJ2429SUQ FT2408SUQ BP2400SUQO FRMC-S012-D BJ2429SUBKT - BP2400SUAO -
	(8) x 2.75" CF	30.00"	34.00"	8.38"	8"CF	6.00"	2.75"CF	9.00"	SW3008SU	P.O.R.		(please login)
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ3028SU FT3008SU BP3000SUO FRMC-S013-D BJ3028SUQ FT3008SUQ BP3000SUQO FRMC-S013-F BJ3028SUBKT - BP3000SUAO -
	(6) x QF40	12.00"	16.00"	8.38"	ISO100-K	0"	N/A	N/A	SW1208SUQ	P.O.R.		N/A N/A N/A
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ1212SUQ FT1208SUQ BP1200SUQO FRMC-S010-B BJ1212SU FT1208SU BP1200SUO BJ1212SUBKT - BP1200SUAO
	(8) x QF40	18.38"	22.00"	8.38"	ISO160-K	5.25"	QF40	6.50"	SW1808SUQ	P.O.R.		N/A N/A N/A
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ1819SU FT1808SU BP1800SUO FRMC-S011-B BJ1819SUQ FT1808SUQ BP1800SUQO FRMC-S011-C BJ1819SUBKT FT1808SUG BP1800SUAO FRMC-S011-D BJ1829SU FT1808SUQG - - BJ1829SUQ - - - BJ1829SUBKT - - -
	(8) x QF40	18.38"	22.00"	8.5"	ISO160-K	5.25"	QF40	6.50"	SW1808SUQG	P.O.R.		N/A N/A N/A
Glass Cylinder (Both Ends) Glass Bell Jar Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame CY18X12 BJ18X12 BJ1819SU FT1808SU BP1800SUO FRMC-S011-B CY18X18 BJ18X18 BJ1819SUQ FT1808SUQ BP1800SUQO FRMC-S011-C CY18X21 BJ18X24 BJ1819SUBKT FT1808SUG BP1800SUAO FRMC-S011-D - BJ18X30 BJ1829SU FT1808SUQG - - - - BJ1829SUQ - - - - - BJ1829SUBKT - - -
	(8) x QF40	24.00"	28.00"	8.38"	ISO160-K	6.00"	QF40	9.00"	SW2408SUQ	P.O.R.		N/A N/A N/A
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ2429SU FT2408SU BP2400SUO FRMC-S012-C BJ2429SUQ FT2408SUQ BP2400SUQO FRMC-S012-D BJ2429SUBKT - BP2400SUAO -
	(8) x QF40	30.00"	34.00"	8.38"	ISO160-K	6.00"	QF40	9.00"	SW3008SUQ	P.O.R.		N/A N/A N/A
Metal Bell Jar Feedthrough Collar (BP Mates to Grooved End) Baseplate Frame BJ3028SU FT3008SU BP3000SUO FRMC-S013-D BJ3028SUQ FT3008SUQ BP3000SUQO FRMC-S013-F BJ3028SUBKT - BP3000SUAO -
