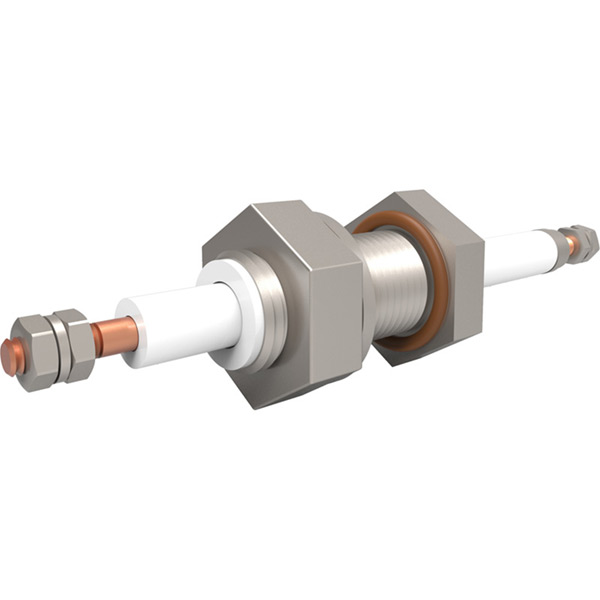

Power Feedthroughs - Baseplate 12,000 Volts

These electrical power feedthroughs are rated to 12000V. The various conductors are insulated with alumina and rated up to 100A. They are designed to fit a 1.0" clearance hole in a baseplate and O-ring sealed for high vacuum conditions.

Dimensional Drawings

Contact Us
To speak with someone directly, please call 1-412-387-9200 or email international@lesker.com.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table


Figure Current
(A)
Conductor
Material
Number of Pins
or Tubes
Atm Side
Thread
Mounting
(in)
Dim
A
Dim
B
Dim
C
Dim
D
Dim
E
Dim
F
Dim
G
Dim
H
PartNo Price Add
Item
VacuCADSM
Figure Current
(A)
Conductor
Material
Number of Pins
or Tubes
Atm Side
Thread
Mounting
(in)
Dim
A
Dim
B
Dim
C
Dim
D
Dim
E
Dim
F
Dim
G
Dim
H
PartNo Price Add
Item
VacuCADSM
1 75 Nickel 1 1/4-20 1"BP 3.6 3.65 1.5 1.88 0.44 0.25 N/A N/A
EFT1211254
$490.00
(please log in)
1 5 Stainless Steel 1 1/4-20 1"BP 3.6 3.65 1.5 1.88 0.44 0.25 N/A N/A
EFT1212254
$490.00
(please log in)
1 100 Copper 1 1/4-20 1"BP 3.6 3.65 1.5 1.88 0.44 0.25 N/A N/A
EFT1213254
$490.00
(please log in)
1 90 Molybdenum 1 1/4-28 1"BP 5.2 2.6 1.5 1.9 0.44 0.25 N/A N/A
EFT1214254
$716.00
(please log in)
2 100 Copper 1 1/4-20 1"BP 3.6 3.65 1.5 1.88 0.44 0.25 3.00 0.88
EFT1213254S
$541.00
(please log in)

Note: The electrical and thermal ratings specified are of safe operating limits determined by various factors including material properties, mechanical design, and the intended operating environment. All electrical ratings are based on operation with one side in dry atmosphere and the other side in vacuum of less than 1 x 10-4 Torr. All VacuCAD files as well as any dimensions shown or listed in our ordering tables do not include manufacturing tolerances and are provided for reference only.

Feedthrough Selection Guide
Finding the right feedthrough has never been easier with our step by step Feedthrough Selection Guide. You can narrow down our feedthrough offering by simply choosing from a variety of different options suitable to your requirements. If you can't find the feedthrough you need or want a custom configuration, please email sales@lesker.com with your inquiry.

Accessories Table

Description Type Per Pkg PartNo Price Add
Item
Description Type Per Pkg PartNo Price Add
Item
Copper, 12" long ( 0.250" diameter)
Bare Wire
1 piece
FTAWCU250
$11.40
Be/Cu connector for 0.260" wire (100A max)
Inline Barrel Connector
10 pieces
FTAIBC260
$134.00
