Pressure Measurement > Thermocouple Gauges

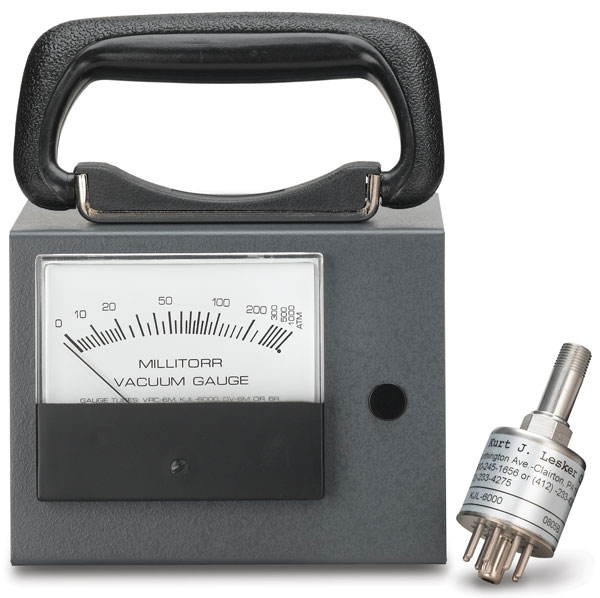

KJLC 205 Series Thermocouple Gauge Controller

These economical controllers are noted for their fast response and high stability.

Features

  • Economical analog display
  • Offer an easy, accurate calibration procedure with dry air
  • Can be operated on any voltage between 90 and 240 VAC without rewiring or switching
  • Available in panel-mount and benchtop-mount versions (both are compatible with the KJL-6000 or DV-6 series tubes)
  • Models with 3-position switch feature monitors 3 tubes sequentially
  • Includes a 10' sensor cable, a 6' line cord, and one KJL-6000 tube (1/8" NPT male)
  • NIST traceable calibration certificates available upon request.
  • Gauges are calibrated for direct readout of nitrogen or air. Do not attempt to use with other gases unless accurate conversion data for N2 to the other gas is properly used.

Specifications Table

Measurement Range1 to 1,000 mTorr
Power Requirements90-240 VAC, 50/60 Hz
Accuracy (% of measurement)± 1 mTorr (1–20 mTorr),
5% of Reading (20–1000 mTorr)
Temperature (operating)4-60° C
Temperature (bakeout)100° C
DisplayAnalog
Set-Point RangeNone
Analog Outputs0-5 VDC
Response Time< 1.0 sec
Mounting OptionsPanel or Benchtop
TC Gauge TubesKJL-6000, DV-6R, DV-6M

Ordering Table

Supplementary Parts  = Click icon below to view Supplementary Parts.

Description Gauge Tube
Type
Mounting Manual PartNo Price Add Item
Supplementary Parts KJLC 205 Series Gauge Controller
(1) KJL-6000 Gauge Tube
Panel-Mount
Download PDF
KJL-205 $400.00
Supplementary Parts KJLC 205 Series Gauge Controller
(1) KJL-6000 Gauge Tube
Bench-Mount
Download PDF
KJL-205BM $475.00
Supplementary Parts KJLC 205 Series Gauge Controller
(1) KJL-6000 Gauge Tube
Bench-Mount
Download PDF
KJL-205BM3X $800.00
Supplementary Parts KJLC 205 Series Gauge Controller
N/A
Panel-Mount
Download PDF
KJL-205NT $340.00

Accessories Table

Accessory Type Description PartNo Price Add Item
Interconnect Cable
Extension (15 ft.)
KJL-200EC15 $126.00
Thermocouple Gauge Tubes
1/8" NPT
KJL-6000 $68.00
Thermocouple Gauge Tubes
1-1/3" CF
KJL-6000MC $135.00
Thermocouple Gauge Tubes
KF16
KJL-6000QF16 $135.00
Thermocouple Gauge Tubes
1/8" NPT (rugged enclosure)
KJL-6000R $155.00
Thermocouple Gauge Tubes
VCR® 4 Female
KJL-6000VCR4 $150.00
