UHV/Synchrotron Capabilities & Products



Synchrotron *Image courtesy of the Diamond Light Source.

HXN End Station at the BNL NSLSII

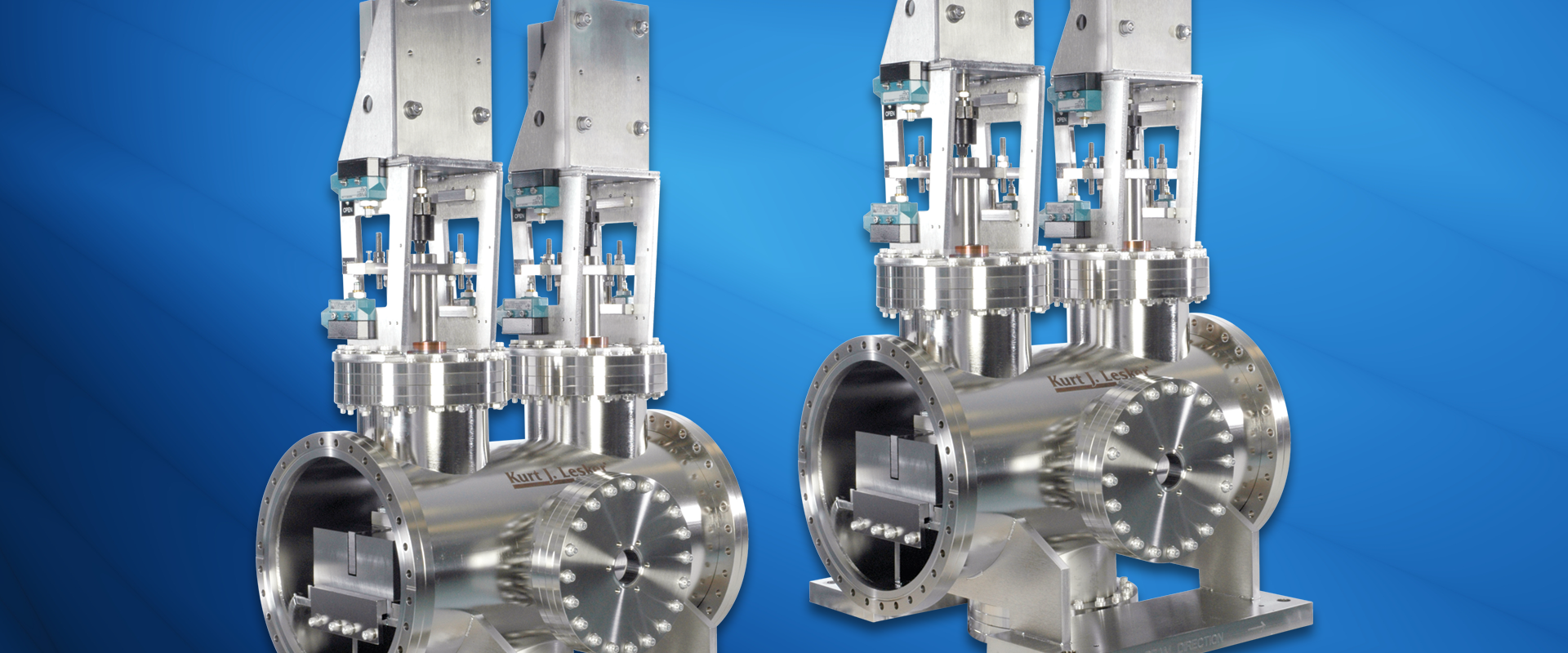

Safety Shutters

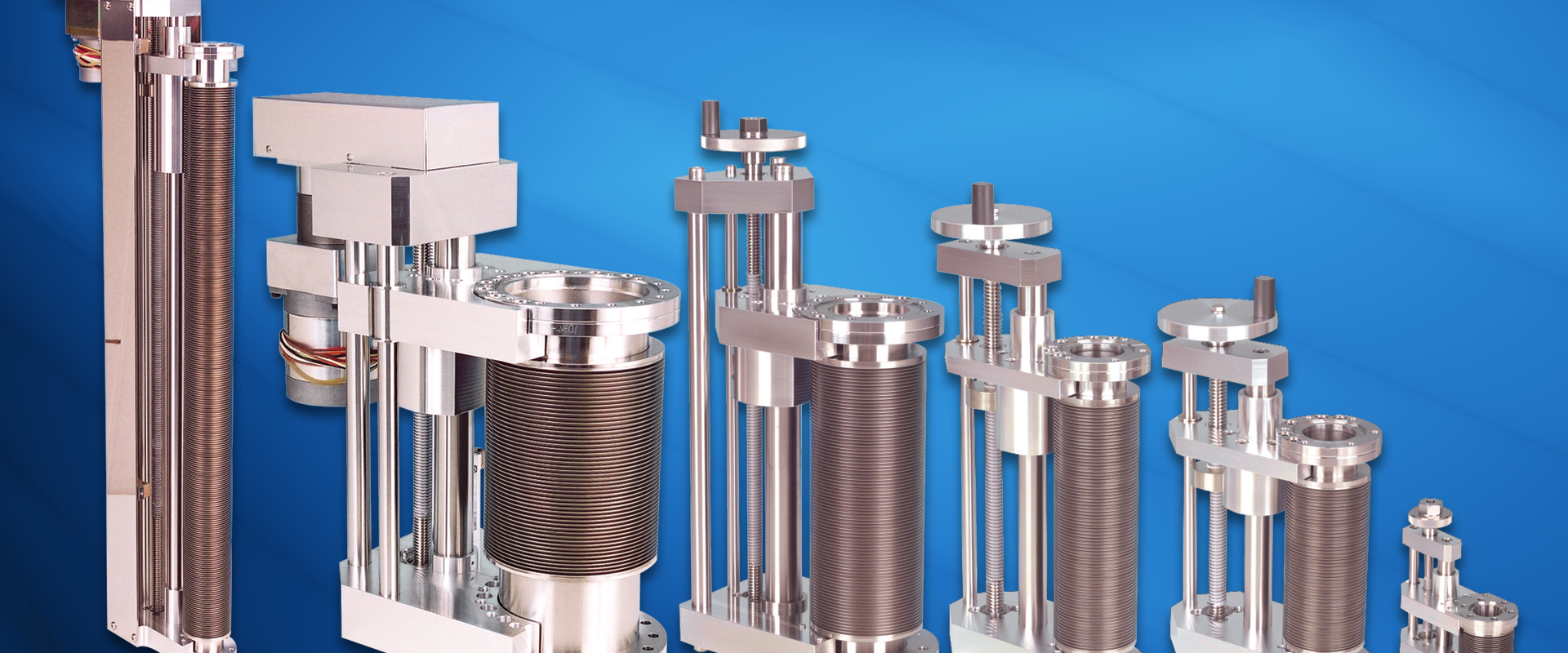

Beam Line Manipulation and Motion

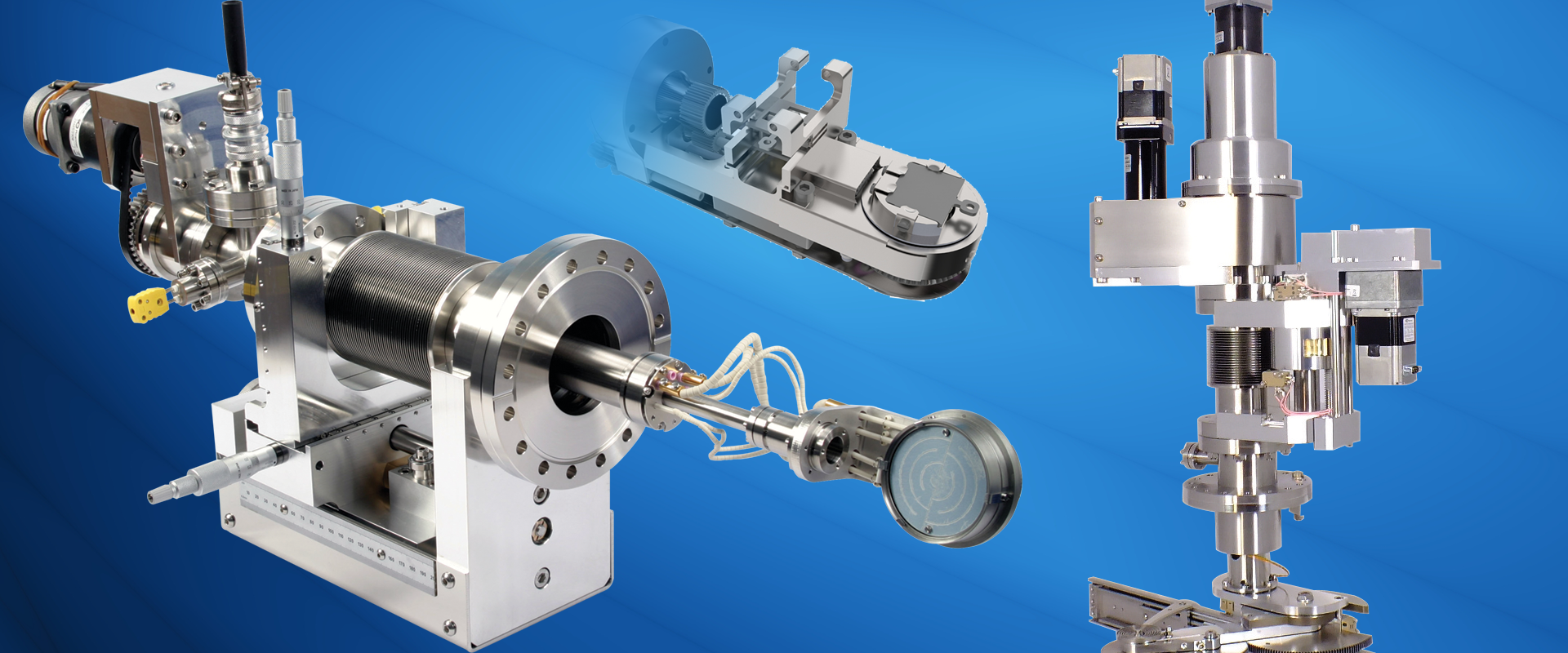

End Station Manipulation

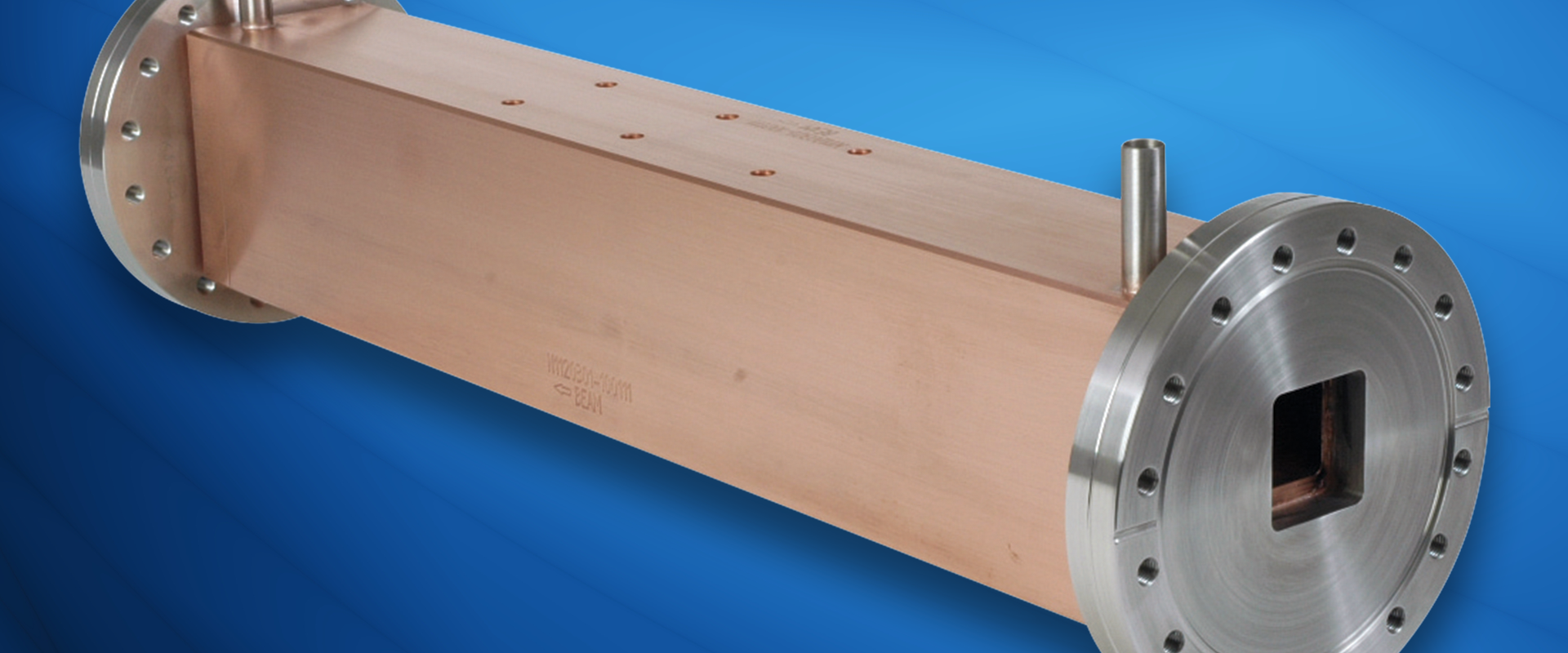

Front End Components – Shutters, Masks, Absorbers, Collimators, etc.

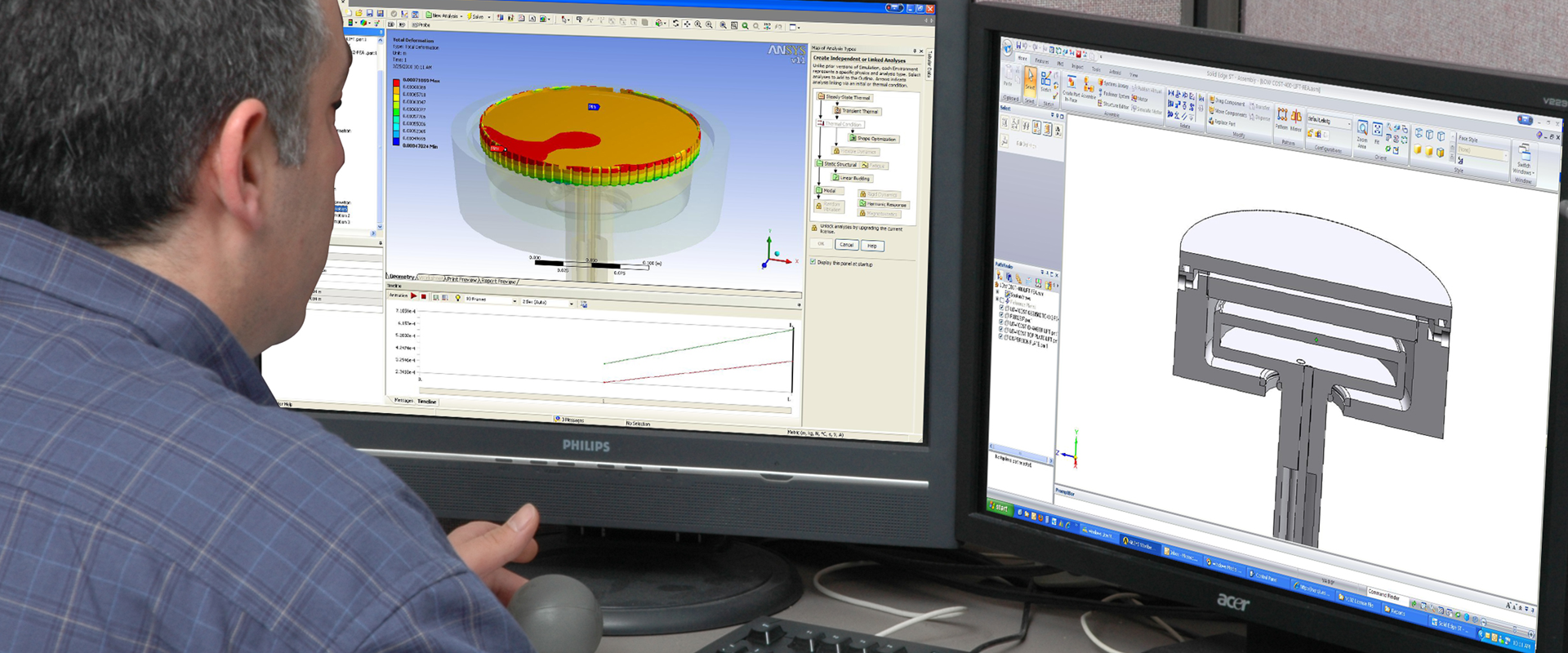

Finite Element Analysis

Frame


UHV/Synchrotron Overview

KJLC® offers an extensive list of beam line components and build to print UHV services. The Kurt J. Lesker Company offers a full catalog of standard and custom products to service the UHV/Synchrotron market, including CF flange systems, chambers, feedthroughs and advanced UHV manipulators.

For more than 25 years, KJLC has been a manufacturer of UHV vacuum hardware, weldments, subassemblies and turnkey deposition systems.


UHV/Synchrotron Capabilities

  • KJLC's ISO 9000 certified fully equipped machining and fabrication facility
  • 30 design and manufacturing engineers
  • Positive air flow clean assembly areas
  • Large capacity CNC turning and milling
  • ASME Section IX Certified Welders
  • 5 Axis Coordinate Measuring Machine (CMM)
  • Helium leak detection ultimate sensitivity of 1.0E-12 atm cc/sec.
  • 5 axis laser
  • Deionized water rinse
  • Nitrogen gas high pressure drying
  • UHV dedicated vacuum bake
  • UHV dedicated tooling
  • Dedicated global product specialists to help you find the right product for your application

UHV/Synchrotron Offerings

KJLC offers a number of products to the UHV Synchrotron market including standard catalog items, building to customer supplied prints, and a multitude of component designs.
