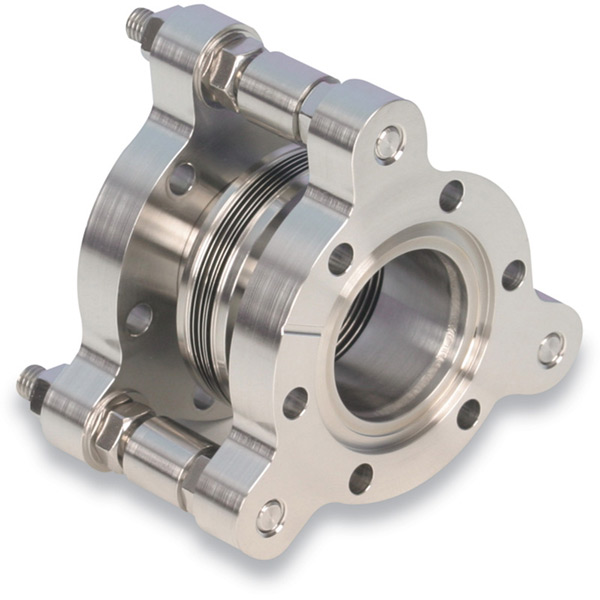

Port Aligners

Enables the distance and angular relationship between two flanges to be adjusted, where a fixed flange supports three equi-spaced threaded shafts, and in parallel, a travelling flange has adjustable floating mounts. A typical application would be the final alignment of sample transfer arms.

Features

  • Any-orientation mounting
  • +/- 5mm axial adjustment
  • +/- 3° angular tilt
  • High quality flexible 316L bellows accommodates motion, whilst maintaining ultra-high vacuum
  • Bakeable to 250°C

The Port Aligner range enables the distance and angular relationship between two flanges to be adjusted. The range consists of five series, which can be supplied with either tapped or clear bolt holes on the flanges. Each range provides +/-5 mm axial length adjustment, with +/- 3° angular tilt.

Essentially, this is a simple device that once adjusted, provides a stable platform. The design consists of two approximately parallel flanges, one of which remains fixed, whilst the position of the second may be adjusted with respect to the first.

The fixed flange supports three equi-spaced threaded shafts. Alignment of the travelling flange is achieved by adjusting the floating mounts attached to each threaded shaft. The port aligner can be mounted in any-orientation and is bakeable to 250°C.

A high quality, flexible, 316L edge-welded bellows, spans the flanges to accommodate the required motion while ensuring an all-metal vacuum enclosure.

Specification Table

Model Flange Size Flange Bolt
Hole Type
Axial Length
Adjustment
Tilt Bellows Clear
Bore
Bakeout
Temperature
PA35-H CF38
70mm (2.75") OD CF
Clear
M6
+/- 5mm +/- 3° 38mm 250°C
PA35-T CF38
70mm (2.75") OD CF
Tapped
M6
+/- 5mm +/- 3° 38mm 250°C
PA64-H CF64
114mm (4.5") OD CF
Clear
M6
+/- 5mm +/- 3° 65mm 250°C
PA64-T CF64
114mm (4.5") OD CF
Tapped
M8
+/- 5mm +/- 3° 65mm 250°C
PA100-H CF100
152mm (6") OD CF
Clear
M6
+/- 5mm +/- 3° 102mm 250°C
PA100-T CF100
152mm (6") OD CF
Tapped
M8
+/- 5mm +/- 3° 102mm 250°C
PA150-H CF150
203mm (8") OD CF
Clear
M6
+/- 5mm +/- 3° 127mm 250°C
PA150-T CF150
203mm (8") OD CF
Tapped
M16
+/- 5mm +/- 3° 127mm 250°C
PA200-H CF200
254mm (10") OD CF
Clear
M6
+/- 5mm +/- 3° 127mm-200mm
(made to order)
250°C
PA200-T CF200
254mm (10") OD CF
Tapped
M16
+/- 5mm +/- 3° 127mm-200mm
(made to order)
250°C

Dimensional Drawings

Dimensional Table

Model A B C D E F G
PA35 59 73.4 106 20 M8 38 88
PA64 75 93 166 26 M12 65 140
PA100 90 108 206 26 M12 102 180
PA150 100 125 279.4 45 M16 127 238.4
PA200 100 125 329.4 44 M16 127 290
