Vacuum Pumps > Turbomolecular Pumps > Turbo Single Stage Pumps > Turbo Single Stage Pumps

Oerlikon Leybold Standard TMP TurboVac Series

Standard TMP TurboVac Series Features:

  • Tapered blades reduce centrifugal force and are twisted to the optimum angle by a specially developed CNC machine
  • Hub is machined from a forged, heat-treated billet of aluminum
  • Grease-lubricated ceramic ball bearings

Grease-Lubricated Ceramic (Silicon Nitride) Ball Bearings:

  • Lubricated with low-vapor pressure grease for entire service life
  • Work in any mounting orientation
  • No lubricant can enter the high-vacuum chamber, even if the pump is operated upside down
  • Ceramic ball's low surface roughness, its hardness, and the fact that it can't micro-weld to the raceway improves the free running and longevity of the bearing
  • Ball's low mass reduces centrifugal force, minimizing wear
  • Lower expansion coefficient reduces the effects of temperature changes

ORDERING NOTE: All pumps require the following accessories for operation: Controller, Interconnect Cable, and Power Cord.

Remanufactured Vacuum Pumps
Remanufactured Pumps

View a list of remanufactured vacuum pumps available from The Kurt J. Lesker Company's Remanufactured Vacuum Pump Division.
View List ▶

Vacuum Pump Repair & Services
Pump Repair & Services

Our factory-trained vacuum pump service technicians are equipped to handle the maintenance and repair of virtually any brand and type of vacuum pump.
View Details ▶


Specifications Table

Pump Model
TMP50
TMP50
TMP151
TMP361
TMP361
Pumping Speed
L/sec (cfm)
33
55
145
345
400
Compression Ratios
N2: 2.0 x 107
He: 5.0 x 102
H2: 1.0 x 102
N2: 2.0 x 107
He: 5.0 x 102
H2: 1.0 x 102
N2: 1.0 x 109
He: 2.0 x 104
H2: 8.0 x 102
N2: 1.0 x 109
He: 2.0 x 104
H2: 8.0 x 102
N2: 1.0 x 109
He: 2.0 x 104
H2: 8.0 x 102
Ult. Pressure Torr
(mBar)
3.75 x 10-8
(5 x 10-8)
3.75 x 10-8
(5 x 10-8)
1 x 10-10
(1.3 x 10-10)
7.5 x 10-11
(1 x 10-10)
7.5 x 10-11
(1 x 10-10)
Inlet Flange
KF40
ISO63-K or 4.5" CF (DN63CF)
ISO100-K or 6" CF (DN100CF)
ISO100-K or 6" CF (DN100CF)
ISO-K160 or 8" CF (DN160CF)
Foreline Flange
KF16
KF16
KF25
KF25
KF25
Max. Foreline Press.Torr
(mbar)
0.75 x 10-1
(1 x 10-1)
0.75 x 10-1
(1 x 10-1)
4 x 10-1
(5.3 x 10-1)
3.75 x 10-1
(5 x 10-1)
3.75 x 10-1
(5 x 10-1)
Backing Pump Min.Speed
CFM (m3/hr)
1.9 (3.3)
1.9 (3.3)
3 (5)
11.7 (19.8)
11.7 (19.8)
Orientation
Any (360°)
Any (360°)
Any (360°)
Any (360°)
Any (360°)
Cooling Method
Air or Water Available
(cooling kits sold separately)
Air or Water Available
(cooling kits sold separately)
Water Standard
(air available)
Water Standard
(air available)
Water Standard
(air available)
Weight lbs (kg)
4.4 (2)
4.4 (2)
17 (8)
26 (12)
26 (12)

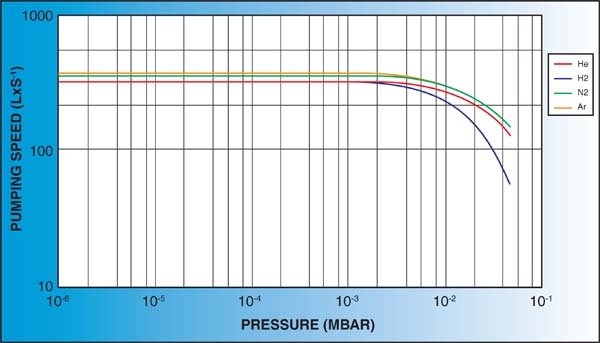

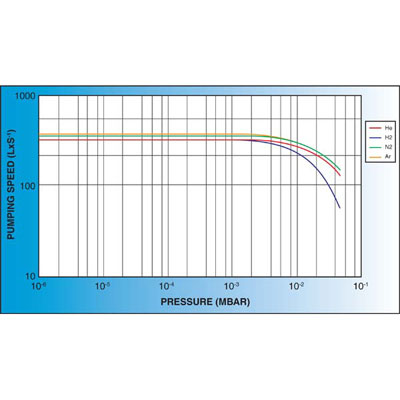

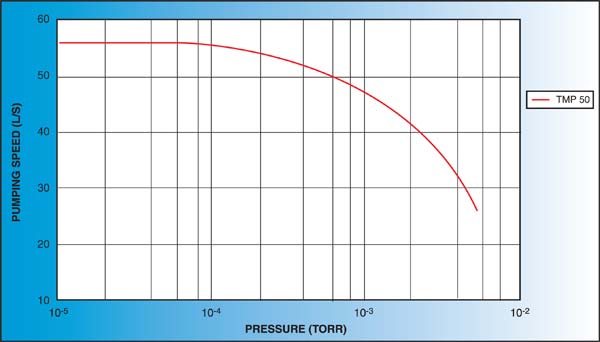

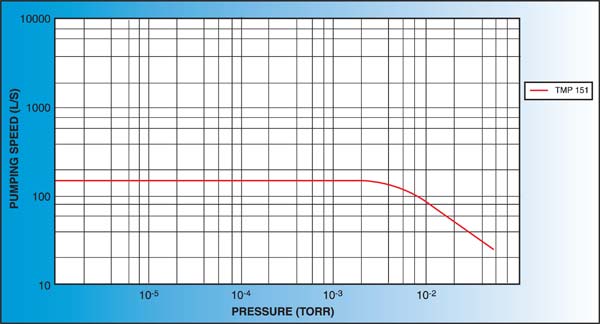

Charts

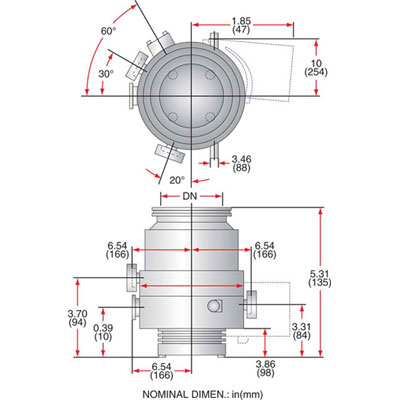

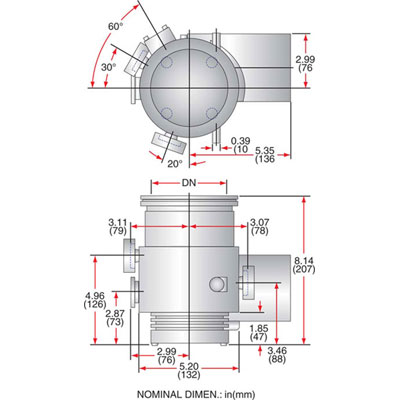

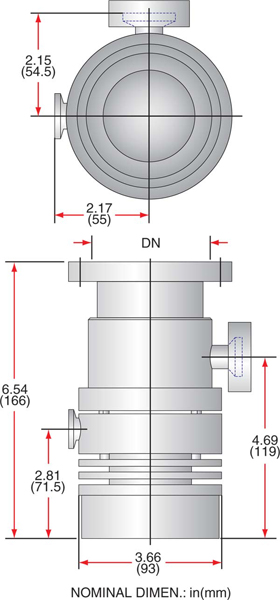

Dimensional Drawings

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

Pump
Model
Description Inlet
Flange
Manual PartNo Price Add To Cart
Pump
Model
Description Inlet
Flange
Manual PartNo Price Add To Cart
TMP151
Standard (TMP Series)
ISO100-K
Download PDF
LH-85631
P.O.R.
TMP151
Standard (TMP Series)
DN100CF (6.00" OD)
Download PDF
LH-85632
$7,719.30
TMP361
Standard (TMP Series)
ISO100-K
Download PDF
LH-85670
P.O.R.
TMP361
Standard (TMP Series)
DN100CF (6.00" OD)
Download PDF
LH-85671
$11,869.40
TMP361
Standard (TMP Series)
ISO160-K
Download PDF
LH-85672
$11,887.20
TMP361
Standard (TMP Series)
DN160CF (8.00" OD)
Download PDF
LH-85673
$12,072.00
TMP50
Standard (TMP Series)
KF40
Download PDF
LH-85400
$4,012.60
TMP50
Standard (TMP Series)
ISO63-K
Download PDF
LH-85401
$3,823.70
TMP50
Standard (TMP Series)
DN63CF (4.50" OD)
Download PDF
LH-85402
$3,829.40
