Spherical Chambers Spherical Chambers 1

Spherical Chambers

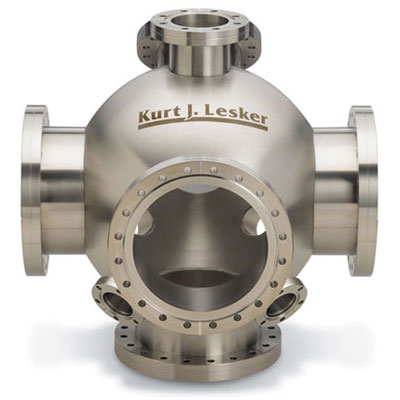

Spherical chambers are popular for surface science, pulsed laser deposition and UHV applications. It is a geometrically strong shape, allowing for many ports focusing on one or more points.

Notes: Standard sizes are now available with 316L bodies and 316LN flanges. Also available with electropolished finish.

Standard Features:

  • Chamber Body Manufactured from 304 Stainless Steel Hemispheres
  • ConFlat® Style Flanges (Through-Hole)
  • Radial Ports Focused on Chamber Center
  • Spherical Chambers Bakeable to 400°C When Fitted With Copper Gaskets
  • *Note: Items Mounted to Chamber Ports May Not Be Capable of Sustaining a 400°C Bake, Use Caution With Elevated Temperatures
  • Capable of Reaching Ultra High Vacuum (UHV) Levels
  • Part Numbers Below Ending With 'EP' Have an Electropolished Finish Inside & Outside

Available Options:

  • Customizable Port Configuration (Change/Move/Add/Subtract Ports)
  • 316LN flanges and 316L hemispheres available
  • Standard Frames - Extruded Aluminum & Carbon Steel
  • *Note: When Mounting to a Standard KJLC Frame the SPMGFGS Adapter Ring (See Accessories Table Below)

Downloads & Ordering

All of our standard chamber designs may be purchased through our website. Please contact us to discuss any required modifications or options. Additionally, we offer the following Chamber Downloads (see table below) to assist our customers with their chamber selection:

  • Dimensional 2D Drawings and 3D Models in Adobe PDF format
  • Engineering Files in DXF (2D) and STP (3D) formats

For problems downloading files, viewing 3D models, or other related questions read our Chamber Downloads FAQ.

Industry Leading
Water Cooling
We have extensive experience of managing projects where temperature control has been critical to the success. Click here to learn more.
Chamber Builder™
Create a custom product that fits your application with our Chamber Builders.
Chambers FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

X CLOSE
Description Drawing Material Chamber O.D. Ports Finish Part Number Price In Stock Add Item
VacuCADSM
Description Drawing Material Chamber O.D. Ports Finish Part Number Price In Stock Add Item
VacuCADSM

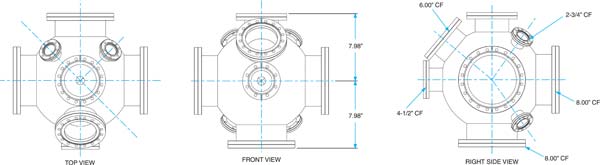

Spherical chamber, 12" OD hemispheres, (4) F0800X600N flanged ports, (2) F0600X400N flanged ports, (1) F0450X275N flanged port, (4) F0275X162N flanged ports, 304 Stainless steel, Finish to be brushed OD and ID, Approximate weight 52 lbs 304 SS 12" (4) 8.00" CF
