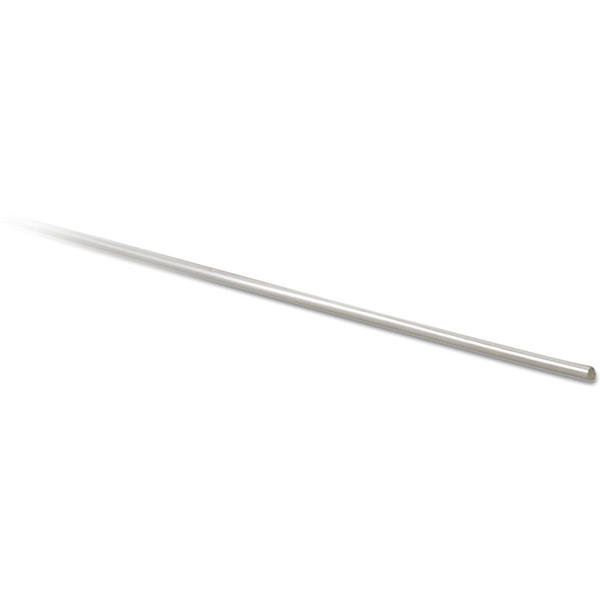

Aluminum (Al) Wire Evaporation Materials


We sell these pellets and pieces by unit weight for evaporation use in deposition processes. These approximate materials prices are published to provide budgetary guidelines. Actual prices can very and may be higher or lower, as determined by availability and market fluctuations. Contact international@lesker.com for current pricing.


Aluminum is one of the most common metals in the world. It can be found in kitchen utensils, cars, street lights, and the popular aluminum foil food packaging. Aluminum is a silvery-white, metallic material. It is light, malleable, ductile, and non-magnetic under normal conditions. It has a density of 2.7 g/cc, a melting point of 660°C, and a vapor pressure of 10-4 Torr at 1,010°C. Although it is not a strong material, it is a good conductor of heat and electricity and is able to form an oxide layer that is resistant to corrosion. Due to its high reactivity, it is rarely found in nature as a free element. When evaporated in a vacuum, aluminum layers form a reflective coating found on telescopes, automotive headlamps, mirrors, packages, and toys. It is widely used in the aerospace, automotive lighting, OLED, and optical industries.

Click here for the Aluminum SDS.
Request A Quote
Can't find the size or material you need? Please use our Materials Quotation Form to request.
Deposition Materials FAQ
Click here for answers to some of the most common questions we get asked.
Contact Us
To speak with someone directly, please call 1-412-387-9200 or email international@lesker.com.

Ordering Table

Material Size Quantity Purity Part # Price Add To
Material Size Quantity Purity Part # Price Add To
Aluminum 1.0 mm (0.040") Dia. 1 ft. 99.99% EVMAL40040 $3.00
Aluminum 1.0 mm (0.040") Dia. 100 m 99.999% EVMAL50040 $225.00
Aluminum 1.0 mm (0.040") Dia. 50 ft. 99.999% EVMAL5004050FT P.O.R.
Aluminum 1.0 mm (0.040") Dia. 1 ft. 99.999% EVMAL50040FT $4.00
Aluminum 1.5 mm (0.060") Dia. 1 lb. 99.99% EVMAL40060 $435.00
Aluminum 1.5 mm (0.060") Dia. 1 lb. 99.999% EVMAL50.062 P.O.R.
Clearance Item Aluminum 2.0 mm (0.080") Dia. 10 m 99.999% EVMAL502MM+ P.O.R.
Note Clearance Item = Limited availability and specially priced.
