TORUS Circular HV
Representative Image

TORUS® Circular HV (High Vacuum) Magnetron Sputtering Sources

KJLC offers a comprehensive line of circular TORUS® magnetron sputter sources suited for most R&D applications. Traditional indirect-cooled, clamped style target design with integral anode shield assembly. Optimal for low to mid power, R&D and small scale production applications. These sputter cathodes range in size from one to four inches in diameter, are functional with virtually any material, have exceptional target utilization, and can be driven by RF, DC, or Pulsed-DC power supplies.

Engineered for Optimum Performance:

  • Wide pressure range operation to 10-9 Torr
  • Low outgassing
  • Excellent thin film uniformity and deposition rates
  • Efficient sputter target utilization
  • Superior target hold down mechanism eliminates the need for thermal pastes, keepers, etc.
  • Compact, modular magnet array
  • Magnets NOT exposed to vacuum
  • Magnets NOT exposed to cooling water
  • Cooling water is not exposed to vacuum chamber during target change
  • Unbalanced operation and compatibility with magnetic materials is available (please contact us by clicking here for more information)
  • Full line of accessories available (gas injection, chimneys, shutters, cluster arrays, etc.)
  • Custom sputter source configurations available
TORUS® Dimensions & Available Options All TORUS® R&D circular sputter sources feature Type-N (male) power connectors, indirect water cooling, and balanced magnetic operation as standard. Unbalanced operation is available, please contact us by clicking here for more information.

Dimensional Drawings

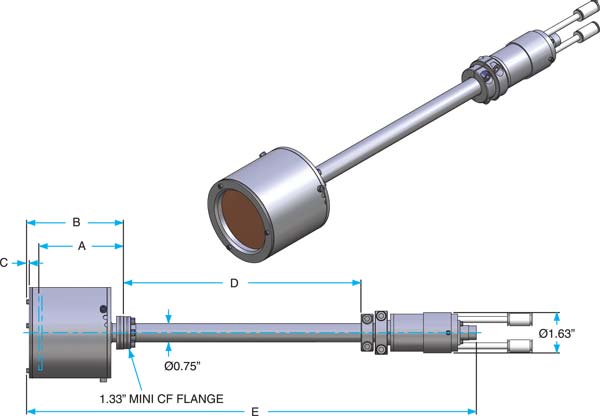

Fig. 1: TM03AS10

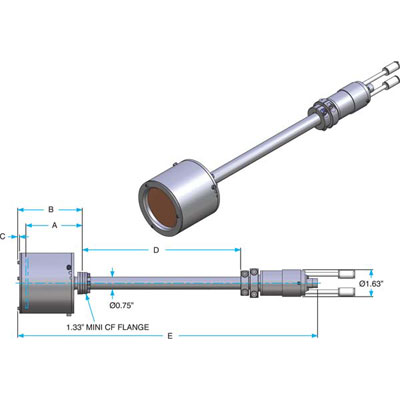

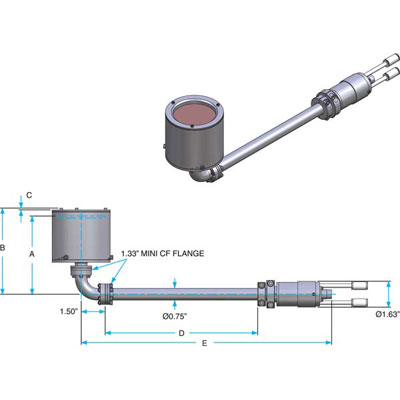

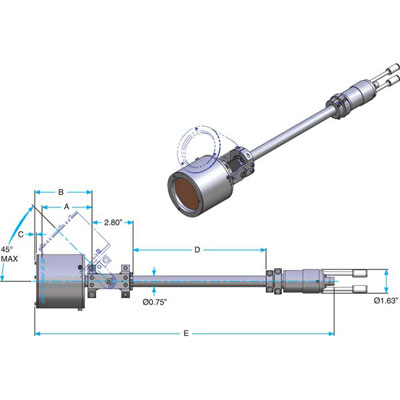

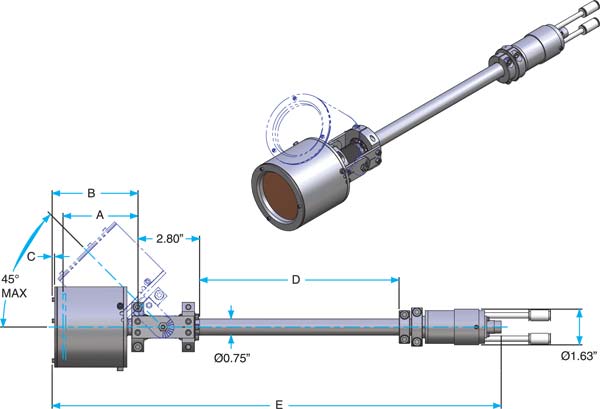

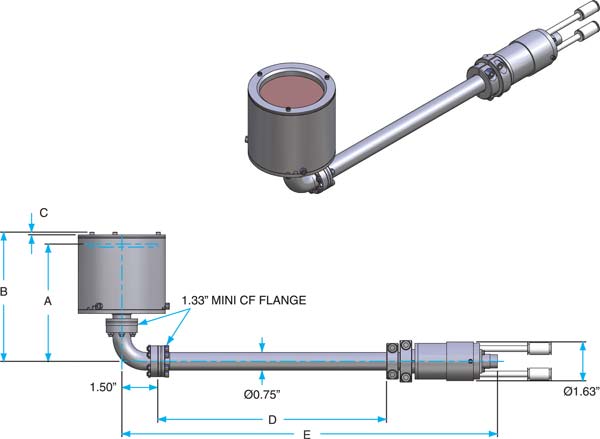

Fig. 1: TM03AS10 Fig. 2: TM03RS10 Fig. 3: TM03FS10

Practical Sputter Process Tips
Practical Sputter Process Tips
To learn more about sputtering rates, uniformity, and process tips click here.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications Table

X CLOSE
Model Figure Head
Mount
Style		 Target
Diam.		 Target
Thickness		 Dim. A Dim. B Dim. C Dim. D Dim. E Deposition
Chimney		 Gas
Injection
Ring		 Magnetic
Materials
TM1 Fig 1 Axial 1.0"
(25.4mm)		 0.063" - 0.125"
(1.6mm - 3.2mm)		 4.05"
(103mm)		 4.28"
(109mm)		 N/A 9.56"
(243mm)		 18.48"
(469mm)		 No No No
TM1 Fig 2 Right
Angle		 1.0"
(25.4mm)		 0.063" - 0.125"
(1.6mm - 3.2mm)		 4.05"
(103mm)		 4.28"
(109mm)		 N/A 9.56"
(243mm)		 20.76"
(527mm)		 No No No
TM1 Fig 3 Flex 1.0"
(25.4mm)		 0.063" - 0.125"
(1.6mm - 3.2mm)		 5.55"
(141mm)		 5.78"
(147mm)		 N/A 9.56"
(243mm)		 N/A No No No
TM2 Fig 1 Axial 2.0"
(50.8mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 4.08"
(104mm)		 4.38"
(111mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 18.58"
(472mm)		 Yes Yes Yes
TM2 Fig 2 Right
Angle		 2.0"
(50.8mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 4.08"
(104mm)		 4.38"
(111mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 20.88"
(530mm)		 Yes Yes Yes
TM2 Fig 3 Flex 2.0"
(50.8mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 5.58"
(142mm)		 5.88"
(149mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 N/A Yes Yes Yes
TM3 Fig 1 Axial 3.0"
(76mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 3.41"
(87mm)		 3.79"
(96mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 18.11"
(460mm)		 Yes Yes Yes
TM3 Fig 2 Right
Angle		 3.0"
(76mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 3.41"
(87mm)		 3.79"
(96mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 20.41"
(518mm)		 Yes Yes Yes
TM3 Fig 3 Flex 3.0"
(76mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 4.91"
(125mm)		 5.40"
(137mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 N/A Yes Yes Yes
TM4 Fig 1 Axial 4.0"
(102mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 3.66"
(93mm)		 4.05"
(103mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 18.37"
(466mm)		 Yes Yes Yes
TM4 Fig 2 Right
Angle		 4.0"
(102mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 3.66"
(93mm)		 4.05"
(103mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 20.67"
(525mm)		 Yes Yes Yes
TM4 Fig 3 Flex 4.0"
(102mm)		 0.080" - 0.25"
(2mm - 6.3mm)		 5.16"
(131mm)		 5.55"
(141mm)		 0.11"
(2.8mm)		 9.56"
(243mm)		 N/A Yes Yes Yes
X CLOSE

* NOTE: Dimensions involving flange-to-target thickness assume a standard target thickness of 1/8 inch. Add or subtract accordingly based on your particular sputter target size.

Start Your Configuration

Select from the configuration options below to create a part number and price for the particular TORUS® sputter source required. Be sure to reference the table above for valid options for a given source size.
Example Configuration: TM2RS10EGP is a 2in. OD right angle mount head on a 10in. long tube with a standard magnet array mounted to an 8in. CF flange with gas injection and pneumatic shaft-style shutter.

1. Target Diameter:
2. Mounting Style:
3. Magnet Array:
4. Tube Length:
5. Flange Size:
6. Gas Injection/Deposition Chimney:
7. Shutter:


Contact us by clicking here or +1 412 387 9200 to discuss your specific vacuum application and process equipment needs.

Note:

Accessories Table

X CLOSE
Accessory Type Description Reference Notes Part Number Price In Stock Add Item
Accessory Type Description Reference Notes Part Number Price In Stock Add Item
Interconnect Cable
CABLE,COAXIAL,RG213,3 FT OAL,MALE"HN" TO MALE "N"
Type HN Plug To Type N Plug, RG213, 3ft LG
 1 EJCBL3HN P.O.R. Contact KJLC for Availability
Interconnect Cable
CABLE,COAXIAL,RG213,3 FT OAL,MALE"N" TO MALE "N"
Type N Plug To Type N Plug, RG213, 3ft LG
 1 EJCBL3NN P.O.R. Contact KJLC for Availability
Interconnect Cable
CABLE,COAXIAL,RG213,3 FT OAL,MALE"N" TO PIGTAIL
Type N Plug To Pigtail (1/4"Ring Lug Center Connector And Flying Ground Wire), RG213, 3ft LG
 1 EJCBL3NP P.O.R. Contact KJLC for Availability
Interconnect Cable
CABLE,COAXIAL,RG213,3 FT OAL,MALE"N" TO MALE "UHF"
Type N Plug To UHF Plug, RG213, 3ft LG
 1 EJCBL3NU P.O.R. Contact KJLC for Availability
Power Supply
500WATT DC POWER SUPPLY,0-500V,0-2A,HN OUT,85-275V INPUT,CE
500 Watt DC, 85-275V Input
 - PD500X1 P.O.R. Contact KJLC for Availability
Power Supply
1 KW DC POWER SUPPLY,0-1000V,0-3A,HN OUT,85-275V INPUT,CE
1000 Watt DC, 85-275V Input
 - PD500X2 P.O.R. Contact KJLC for Availability
Power Supply
1.5KW DC POWER SUPPLY,0-1000V,0-4A,HN OUT,100-240V INPUT,CE,ETL
1500 Watt DC, 85-275V Input
 - PD500X3 P.O.R. In Stock
Power Supply
KJLC 300W,220V RF PWR PKG,SUP,A-MATCH,CONT,RK MT,CBLS,CE
300W RF, Typically Recommended For 2" And 3" Cathodes
 - RF03A22XX300 $9,895.00 Contact KJLC for Availability
Power Supply
KJLC 600W,220V RF PWR PKG,SUP,A-MATCH,CONT,RK MT,CBLS,CE
600W RF, Typically Recommended For 4" Cathodes
 - RF06A22XX300 $14,150.00 Contact KJLC for Availability
Rebuild Kit
REBUILD KIT,TM01
Torus 1 Cathode (Includes All Screws, Washers, O-Rings, And Water Tubing)
 - TM01CC-RBKIT P.O.R. Contact KJLC for Availability
Rebuild Kit
REBUILD KIT FOR TORUS 3
Torus 3 Cathode (Includes All Screws, Washers, O-Rings, And Water Tubing)
 - TM03CC-RBKIT P.O.R. Contact KJLC for Availability
Rebuild Kit
REBUILD KIT,TM04
Torus 4 Cathode (Includes All Screws, Washers, O-Rings, And Water Tubing)
 - TM04CC-RBKIT P.O.R. Contact KJLC for Availability
Rebuild Kit
REBUILD KIT,TRS2
Torus 2 Cathode (Includes All Screws, Washers, O-Rings, And Water Tubing)
 - TRS2CC-RBKIT P.O.R. Contact KJLC for Availability
X CLOSE

 Notes:
1.
Other cable lengths available by replacing the '3' with the desired length in feet.
