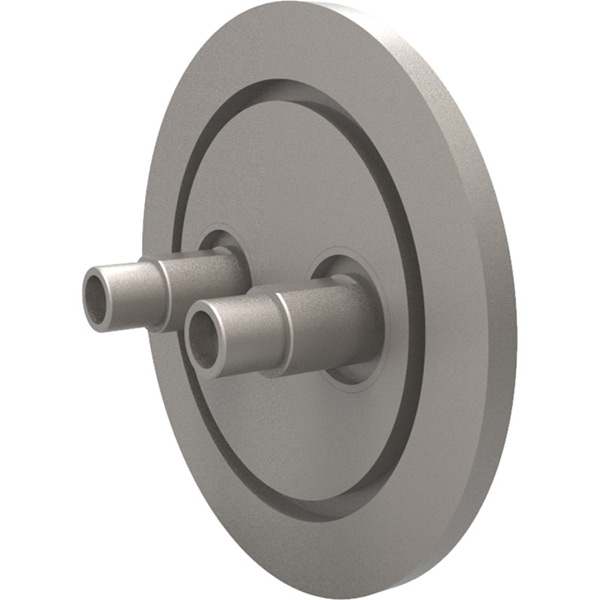

SMA Feedthroughs, 27GHz - KF Flange, Double-Ended

These instrumentation feedthroughs have SMA coaxial connectors (50 Ohm matched impedance) on the air-side and vacuum-side. SMA feedthroughs of this type are intended for higher frequency applications up to 27GHz.

Specifications Table

Vacuum Application HV
Temperature Max. Ramp Rate 25°C/minute
Cable Connectors Temperature Range -65°C to 165°C
Grounded Shields Max. Voltage 500V DC
VSWRTyp 1.25 @ 27GHz (max 1.4)
Insertion LossTyp 0.15 x √ f (GHz) db

Cabling Instructions
Follow the link below to view the SMA Feedthrough cabling diagrams & instructions.
