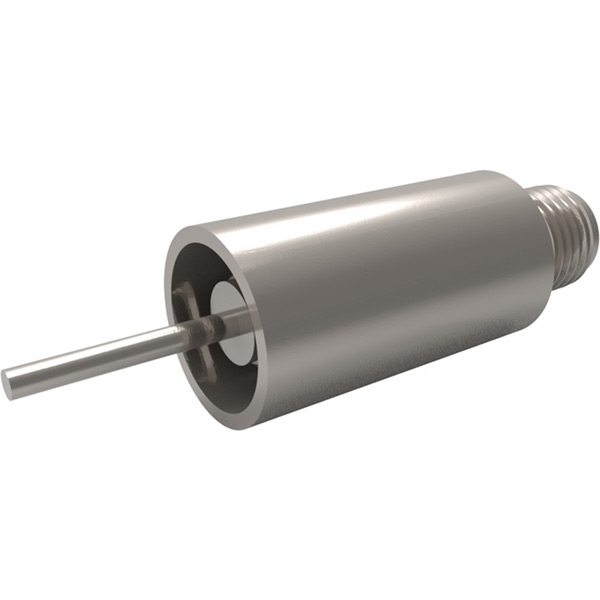

IFTCG012011 enlarge image tool
Representative Image

SMA Feedthroughs - Weldable, Single-Ended

These instrumentation feedthroughs have SMA coaxial connectors on the air-side. Air-side cable plugs are included with the feedthrough but vacuum-side connectors are not. Feedthroughs of this type are designed for welding into a suitably prepared through-hole in a flange.

Specifications Table

Cable RG-55/U, 58/U, 400/U, 303/U, 223/U, 142/U, 141/U
Vacuum Application UHV
Temperature Max. Ramp Rate 25°C/minute
Cable Connectors Temperature Range -65°C to 165°C
Floating Shields Max. Voltage
(Ground)		 2,500V DC
Floating Shields Max. Voltage
(Pin)		 700V DC
Grounded Shields Max. Voltage 500V DC

Cabling Instructions
Cabling Instructions
Follow the link below to view the SMA Feedthrough cabling diagrams & instructions.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656
Note:
  • special case note
    The electrical and thermal ratings specified are of safe operating limits determined by various factors including material properties, mechanical design, and the intended operating environment. All electrical ratings are based on operation with one side in dry atmosphere and the other side in vacuum of less than 1 x 10-4 Torr. All VacuCAD files as well as any dimensions shown or listed in our ordering tables do not include manufacturing tolerances and are provided for reference only.

Ordering Table

(Click column headers to sort data)

CloseX
CloseX
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in
Feedthrough Selection Guide
Feedthrough Selection Guide
Finding the right feedthrough has never been easier with our step by step Feedthrough Selection Guide. You can narrow down our feedthrough offering by simply choosing from a variety of different options suitable to your requirements. If you can't find the feedthrough you need or want a custom configuration, please contact us by clicking here or call +1 800 245 1656 with your inquiry.
