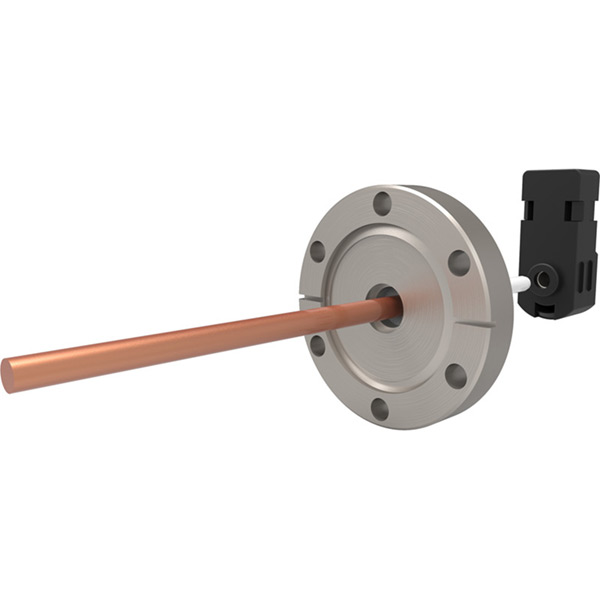

Representative Image

High Current Quick Connect Feedthroughs - CF Flanged 2500 Volts

High Current Quick Connect Feedthroughs are ideal for single conductor applications requiring safe and simple atmosphere side connectivity. These electrical power feedthroughs are rated up to 2500V with use of the supplied High Current Quick Connect Plug. Conductors are insulated with alumina and rated up to 200A. Conductors are silver plated on the atmosphere side to reduce contact resistance. With CF flanges, they are bakeable to 450°C and UHV-compatible.

Temperature Without Plug: -269°C to 450°C (0.154” and 0.250” Conductors)

Temperature Without Plug: -80°C to 450°C (0.375” Conductors)

Temperature With Plug: -55°C to 125°C

Feedthrough Connection
Follow the link below to view feedthrough connection examples.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656
  • special case note
    The electrical and thermal ratings specified are of safe operating limits determined by various factors including material properties, mechanical design, and the intended operating environment. All electrical ratings are based on operation with one side in dry atmosphere and the other side in vacuum of less than 1 x 10-4 Torr. All VacuCAD files as well as any dimensions shown or listed in our ordering tables do not include manufacturing tolerances and are provided for reference only.

Ordering Table

(Click column headers to sort data)

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in
Feedthrough Selection Guide
Feedthrough Selection Guide
Finding the right feedthrough has never been easier with our step by step Feedthrough Selection Guide. You can narrow down our feedthrough offering by simply choosing from a variety of different options suitable to your requirements. If you can't find the feedthrough you need or want a custom configuration, please contact us by clicking here or call +1 800 245 1656 with your inquiry.
