Radius 90° ConFlat® (CF) UHV Elbows

We fabricate these CF elbows for UHV systems from 304L stainless steel tubing and knife-edge (ConFlat) flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

CF Elbows Feature:

Radius or miter design
Both flanges rotatable with through-hole bolt holes

Got VacuCAD^SM?

VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

Flange Size/OD

Flange Material

Drawing

Nominal Tube OD

Dim A

Description

VacuCAD^SM

Part Number

Price

In Stock

Add To Cart

Accessories

Flange Size/OD

Flange Material

Drawing

Nominal Tube OD

Dim A

Description

VacuCAD^SM

Part Number

Price

In Stock

Add To Cart

Accessories

DN16CF (1.33" OD)

304L SS

0.75

1.50

ELBOW, RADIUS, 1.5"A, .75"OD, MINI FLANGE, UHV FITTING

(please log in)

L-0133

$117.20

DN25CF (2.13" OD)

304L SS

1.00

1.99

ELBOW,RADIUS,90 DEG,2-1/8"UHV FLG,1"OD TUBE,"A"-1.99"

(please log in)

L-0212

$163.00

DN35CF-DN40CF (2.75" OD)

304L SS

1.50

2.46

ELBOW, RADIUS, 2.46"A, 1.5"OD, 2.75" FLANGE, UHV FITTING

(please log in)

L-0275

$182.00

DN50CF (3.38" OD)

304L SS

2.00

3.22

ELBOW, RADIUS, 2" TUBE OD, 3.22" "A" DIM, 3-3/8" FLANGE

(please log in)

L-0337

$283.50

DN63CF (4.50" OD)

304L SS

2.50

4.12

ELBOW, RADIUS, 4.50"OD FLG, 2.50"OD TUBE, "A"-4.12"

(please log in)

L-0450

$428.25

DN75CF (4.63" OD)

304L SS

3.00

4.88

ELBOW,90 DEG,RADIUS,4-5/8"FLG, 3"OD TUBE,"A"-4.88"

(please log in)

L-0462

$574.00

DN100CF (6.00" OD)

304L SS

4.00

6.44

ELBOW,SS,RADIUS,4"OD TUBE,6" UHV FLGS,"A"-6.44"

(please log in)

L-0600

$645.00

DN160CF (8.00" OD)

304L SS

6.00

9.50

ELBOW,SS,RADIUS,6"OD TUBE,8" UHV FLGS,"A"-9.50"

(please log in)

L-0800

$969.05

CloseX

Flange Size/OD

Flange Material

Drawing

Nominal Tube OD

Dim A

Description

VacuCAD^SM

Part Number

Price

In Stock

Add To Cart

Accessories

Flange Size/OD

Flange Material

Drawing

Nominal Tube OD

Dim A

Description

VacuCAD^SM

Part Number

Price

In Stock

Add To Cart

Accessories

DN16CF (33.78 mm OD)

304L SS

19.050

38.100

ELBOW, RADIUS, 1.5"A, .75"OD, MINI FLANGE, UHV FITTING

(please log in)

L-0133

$117.20

DN25CF (53.98 mm OD)

304L SS

25.400

50.546

ELBOW,RADIUS,90 DEG,2-1/8"UHV FLG,1"OD TUBE,"A"-1.99"

(please log in)

L-0212

$163.00

DN35CF-DN40CF (69.85 mm OD)

304L SS

38.100

62.484

ELBOW, RADIUS, 2.46"A, 1.5"OD, 2.75" FLANGE, UHV FITTING

(please log in)

L-0275

$182.00

DN50CF (85.73 mm OD)

304L SS

50.800

81.788

ELBOW, RADIUS, 2" TUBE OD, 3.22" "A" DIM, 3-3/8" FLANGE

(please log in)

L-0337

$283.50

DN63CF (114.30 mm OD)

304L SS

63.500

104.648

ELBOW, RADIUS, 4.50"OD FLG, 2.50"OD TUBE, "A"-4.12"

(please log in)

L-0450

$428.25

DN75CF (117.48 mm OD)

304L SS

76.200

123.952

ELBOW,90 DEG,RADIUS,4-5/8"FLG, 3"OD TUBE,"A"-4.88"

(please log in)

L-0462

$574.00

DN100CF (152.40 mm OD)

304L SS

101.600

163.576

ELBOW,SS,RADIUS,4"OD TUBE,6" UHV FLGS,"A"-6.44"

(please log in)

L-0600

$645.00

DN160CF (203.20 mm OD)

304L SS

152.400

241.300

ELBOW,SS,RADIUS,6"OD TUBE,8" UHV FLGS,"A"-9.50"

(please log in)

L-0800

$969.05

CloseX

Flange Selection Guide

With a variety of flanges to choose from, the Flange Selection Guide is designed to help you find one to meet your vacuum requirements. Shop Now!
Can't find the flange you need or want a custom configuration? Please call us at +1 800 245 1656 or email salesus@lesker.com with your inquiry.

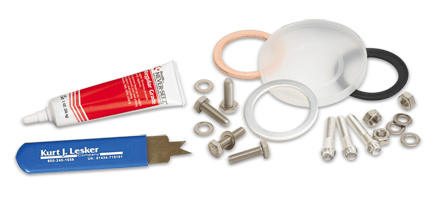

Accessories Table

Description

For

Per Package

Manual

VacuCAD^SM

Part Number

Price

In Stock

Add Item

Description

For

Per Package

Manual

VacuCAD^SM

Part Number

Price

In Stock

Add Item

Thread Lubricant, 4 Ounce Tube

All CF Flanges

—

N/A

VZTL-4OZ

$42.00

Gasket Removal Tool, For All Conflat (CF) Flange Sizes

All CF Flanges

—

N/A

VZGRT

$38.50

Gasket, Copper, DN16CF (1.33" OD) Flange , 0.837" OD, 0.640" ID, (10) Per Package

All 1-1/3" (DN16CF) Flanges

—

(please log in)

GA-0133

$26.35

Gasket, Copper, DN25 (2.125" OD) Flange, 1.291" OD, 1.010" ID, (10) Per Package

All 2-1/8" (DN25CF) Flanges

—

(please log in)

GA-0212

$29.05

Gasket, Copper, DN35CF-DN40CF (2.75" OD) Flange, 1.895" OD, 1.451" ID, (10) Per Package

All 2-3/4" (DN35-DN40CF) Flanges

—

(please log in)

GA-0275

$34.40

Gasket, Copper, DN50CF (3.375" OD) Flange, 2.425" OD, 2.010" ID, (10) Per Package

All 3-3/8" (DN50CF) Flanges

—

(please log in)

GA-0337

$37.15

Gasket, Copper, DN63CF (4.50" OD) Flange, 3.243" OD, 2.506" ID, (10) Per Package

All 4-1/2" (DN63CF) Flanges

—

(please log in)

GA-0450

$58.90

Gasket, Copper, DN75CF (4.625" OD) Flange, 3.598" OD x 3.010" ID, (10) Per Package

All 4-5/8" (DN75CF) Flanges

—

(please log in)

GA-0462

$60.85

Gasket, Copper, DN100CF (6.00" OD) Flange, 4.743" OD,4.006" ID, (10) Per Package

All 6" (DN100CF) Flanges

—

(please log in)

GA-0600

$75.80

Gasket, Copper, DN160CF (8.00" OD) Flange, 6.743" OD, 6.007" ID, (10) Per Package

All 8" (DN160CF) Flanges

—

(please log in)

GA-0800

$105.30

Socket Head Cap Screw & Nut Set, Stainless Steel, DN16CF (1.33" OD) Flange, (25) 8-32 x 0.75" Long Socket Head Cap Screws & (25) Hex Nuts

All 1-1/3" (DN16CF) Flanges

—

N/A

SBS832075S4-25

$40.00

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 1/4-28 x 1.38" Long Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 2-1/8" (DN25CF) Flanges

—

(please log in)

HBS25028138

$30.50

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 1/4-28 x 1.38" Long Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 2-3/4" (DN35-DN40CF) Flanges

—

(please log in)

HBS25028138

$30.50

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 5/16-24 x 1.75" Long Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 3-3/8" (DN50CF) Flanges

—

(please log in)

HBS31224175

$39.20

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 5/16-24 x 2.00" Long Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 4-1/2" (DN63CF) Flanges

—

(please log in)

HBS31224200

$33.20

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 5/16-24 x 2.00" Long Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 4-5/8" (DN75CF) Flanges

—

(please log in)

HBS31224200

$33.20

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 5/16-24 x 2.25" Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 6" (DN100CF) Flanges

—

(please log in)

HBS31224225

$39.20

Hex Bolt, Nut & Washer Set, Stainless Steel, (25) 5/16-24 x 2.25" Hex Bolts, (25) Hex Nuts, & (50) Flat Washers

All 8" (DN160CF) Flanges

—

(please log in)

HBS31224225

$39.20

Gasket Clips, For All Conflat (CF) Flange Sizes, (10) Per Package

All CF Flanges

N/A

VGC0275S

$106.00
