Representative Image

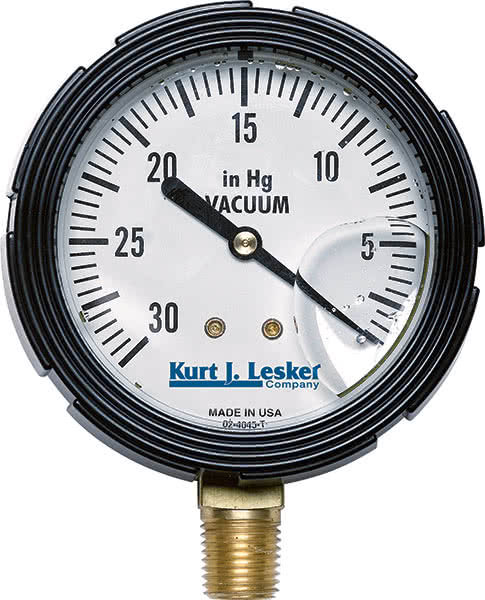

KJLC® BDG Series Bourdon Dial Gauges KJLC® BDG Series Bourdon Dial Gauges 1 KJLC® BDG Series Bourdon Dial Gauges 2

KJLC® BDG Series Bourdon Dial Gauges

Our liquid-filled bourdon vacuum gauges are industrial-grade dial gauges suitable for pressures down to 1 Torr (mbar).

Features

  • Bourdon tube constructed of phosphor bronze
  • Corrosion- and impact-resistant, industrial-grade Zytel nylon case
  • Removable Zytel nylon bezel design for easy calibration
  • Large 2-1/2" dial and non-yellowing clear glycerin fill for readability
  • Internal "breathing diaphragm" and diaphragm seal:
    • Virtually eliminates the air bubble in the mid-range of the gauge for improved readability
    • Prevents freezing, clogging, and corrosion of gauge
    • Compensates for temperature
  • Brass 1/4" NPT male stem-style connection
  • 3 major pressure measurement systems available:
    • Torr, mbar, and in. Hg

Specifications Table

Model Bourdon (Dial)
Technology Bourdon (Dial)
Measurements Torr
Min: 1.000 x 100
Max: 7.600 x 102

mbar
Min: 1.000 x 100
Max: 1.000 x 103

" Hg
Min: 3.000 x 101
Max: 0.000 x 10-0

Temperature Operating
65.0 ºC
150 ºF

Materials Exposed to Vacuum Brass
EPDM
Typical Accuracy
±10% of reading
Display Type
Analog
Recommended
Mounting Orientation
Any
X CLOSE
Gauges FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

X CLOSE
Description Technology Display Type Flange Units
VacuCADSM
Part Number Price In Stock Add To Cart Accessories
Description Technology Display Type Flange Units
VacuCADSM
Part Number Price In Stock Add To Cart Accessories
BORDON DIAL GAUGE,LIQUID FILLED,INCHES MERCURY,0-30"HG, 1/4"BRASS MALE NPT CONNECTION Bourdon (Dial) Analog 1/4" NPT Male " Hg
N/A
KJLDGINHG
$98.00 In Stock
BOURDON DIAL GAUGE,LIQUID FILLED,ATM - 1 MBAR, 1/4" BRASS MALE NPT CONNECTION Bourdon (Dial) Analog 1/4" NPT Male mbar
N/A
KJLDGMBAR
$98.00 In Stock
BOURDON DIAL GAUGE,LIQUID FILLED,TORR,760-1 TORR, 1/4"BRASS MALE NPT CONNECTION Bourdon (Dial) Analog 1/4" NPT Male Torr
N/A
KJLDGTORR
$98.00 In Stock
