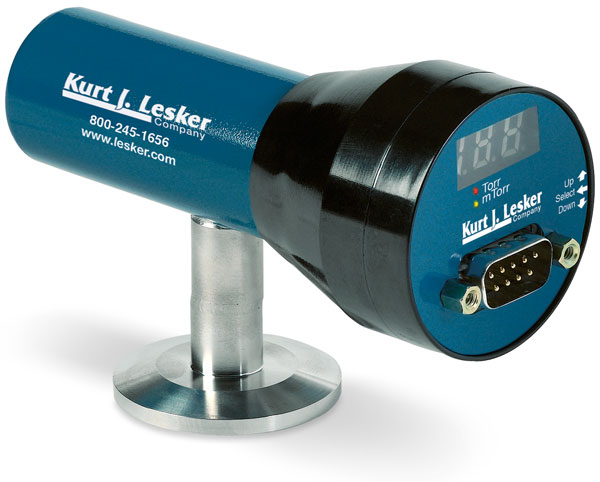

KJLC® 275i Series Gauge  with Integrated Controller & Display KJLC® 275i Series Gauge  with Integrated Controller & Display 1 KJLC® 275i Series Gauge  with Integrated Controller & Display 2

KJLC® 275i Series Gauge with Integrated Controller & Display

The 275i vacuum gauge modules are ideal for new applications or as low-cost drop-in replacements to the Mini-Convectron® brand of MKS / Granville-Phillips® gauges.

Features:

  • Performance identical to existing competitor's gauges
  • Less prone to damage from mechanical shock or vibration than competitor's tubes
  • Less outgassing and faster response to pressure changes than competitor's tubes
  • Built-in digital display
  • Wide measurement range: 10-4 to 1,000 Torr (10-4 to 1,333 mbar)
  • Wider measuring range and better accuracy than traditional thermocouple gauges
  • CE marked, RoHS compliant
  • NIST traceable calibration certificates available upon request. Note that this request must be made upon order of the unit.
  • Power supply sold separately.
  • Gauges are calibrated for direct readout of nitrogen or air. Do not attempt to use with other gases unless accurate conversion data for N2 to the other gas is properly used.

Specifications Table

Model KJLC 275i
Log-Linear
Torr
KJLC 275i
Log-Linear
mBar
KJLC 275i
Non-Linear
Torr
KJLC 275i
Non-Linear
mBar
Technology Convection Enhanced Pirani
Convection Enhanced Pirani
Convection Enhanced Pirani
Convection Enhanced Pirani
Measurements Torr
Min: 1.000 x 10-4
Max: 1.333 x 103

mbar
Min: 1.333 x 10-4
Max: 1.333 x 103

Torr
Min: 1.000 x 10-4
Max: 1.333 x 103

mbar
Min: 1.333 x 10-4
Max: 1.333 x 103

Torr
Min: 1.000 x 10-4
Max: 1.333 x 103

mbar
Min: 1.333 x 10-4
Max: 1.333 x 103

Torr
Min: 1.000 x 10-4
Max: 1.333 x 103

mbar
Min: 1.333 x 10-4
Max: 1.333 x 103

Temperature Operating
Min: 0.00 ºC
Max: 50.0 ºC
Min: 32.0 ºF
Max: 122 ºF

Storage
Min: -40.00 ºC
Max: 70.0 ºC
Min: -40.00 ºF
Max: 158 ºF

Bakeout
150 ºC
302 ºF

Operating
Min: 0.00 ºC
Max: 50.0 ºC
Min: 32.0 ºF
Max: 122 ºF

Storage
Min: -40.00 ºC
Max: 70.0 ºC
Min: -40.00 ºF
Max: 158 ºF

Bakeout
150 ºC
302 ºF

Operating
Min: 0.00 ºC
Max: 50.0 ºC
Min: 32.0 ºF
Max: 122 ºF

Storage
Min: -40.00 ºC
Max: 70.0 ºC
Min: -40.00 ºF
Max: 158 ºF

Bakeout
150 ºC
302 ºF

Operating
Min: 0.00 ºC
Max: 50.0 ºC
Min: 32.0 ºF
Max: 122 ºF

Storage
Min: -40.00 ºC
Max: 70.0 ºC
Min: -40.00 ºF
Max: 158 ºF

Bakeout
150 ºC
302 ºF

Typical Accuracy
0.1 mTorr resoution (5.00 x 10-4

to 1.00 x 10-3

Torr)
±10% of reading (1.00 x 10-3

to 400 Torr)
±2.5% of reading (400 Torr to atm)
0.1 mTorr resoution (5.00 x 10-4

to 1.00 x 10-3

Torr)
±10% of reading (1.00 x 10-3

to 400 Torr)
±2.5% of reading (400 Torr to atm)
0.1 mTorr resoution (5.00 x 10-4

to 1.00 x 10-3

Torr)
±10% of reading (1.00 x 10-3

to 400 Torr)
±2.5% of reading (400 Torr to atm)
0.1 mTorr resoution (5.00 x 10-4

to 1.00 x 10-3

Torr)
±10% of reading (1.00 x 10-3

to 400 Torr)
±2.5% of reading (400 Torr to atm)
Display Type
Digital
Digital
Digital
Digital
Set-Point Relays
1 1 1 1
Relay Response
1A at 30 VDC resistive or AC non-inductive
1A at 30 VDC resistive or AC non-inductive
1A at 30 VDC resistive or AC non-inductive
1A at 30 VDC resistive or AC non-inductive
Analog Output
log-linear 1 to 8 Vdc
1 V/decade
log-linear 1 to 8 Vdc
1 V/decade
non-linear analog S-curve 0.375 to 5.659 VDC; MKS Equivlanet
non-linear analog S-curve 0.375 to 5.659 VDC; MKS Equivlanet
Recommended
Mounting Orientation
Horizontal
Horizontal
Horizontal
Horizontal
Input Power
12 to 28 VDC
2 W
12 to 28 VDC
2 W
12 to 28 VDC
2 W
12 to 28 VDC
2 W
Communications
(standard)
Analog
Analog
Analog
Analog
Filament Count
1 1 1 1
Filament Type
Gold-Plated Tungsten
Gold-Plated Tungsten
Gold-Plated Tungsten
Gold-Plated Tungsten
X CLOSE
Product Downloads
Gauges FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Notes:
  • Other plug ends available. Please see manual for available options and part numbers.
  • Power supply is not included - Please order separate.
