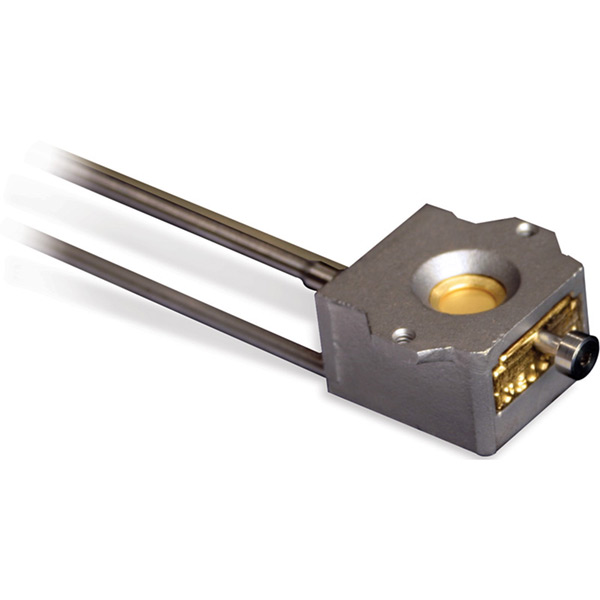

Representative Image

Cool Drawer Single Sensor

Overview

The Cool Drawer Single Sensors allow crystal installation into the sensor from the side, convenient for systems with insufficient room for front load crystal installation. The Cool Drawer Single Sensor employs the Cool Drawer Crystal Holder which is thermally shielded by the water-cooled housing insuring excellent crystal performance.

One or more of these sensors should be purchased with each controller. Each sensor comes completely assembled and includes integral water tubes, In-vacuum coaxial cable (Front Load) or In-vacuum conduit (Cool Drawer), water tube bending tool, crystal snatcher(Front Load), and operating instructions. All air and water tubes (except the bakeable sensor) are 1/8 inch (0.32cm) O.D. All shuttered sensors require the 750-420-G1 pneumatic control valve. Limited use with other controllers is possible - call KJLC at +1 412 387 9200 or click here to contact us with any technical questions.

Features

No internal cables
Cool Drawer crystal holder
Easy installation
Bakeable if ordered with welded CF40 flange
Available with: CF40 feedthrough and 2.54 cm (1") bolt feedthrough
Adjustable length if ordered with compression fittings
No brazing required if ordered with compression fittings
Sensor/feedthrough combination available welded to customer specified lengths

Specifications

	Cool Drawer Single Sensor
Finish	Stainless steel, gold plated Cool Drawer™
Cooling water	0.2 GPM using 1/8" O.D. tube (Do not allow to freeze)
Crystal	Industry standard 0.550" diameter
Air supply	Shuttered sensors require 55-60 psi regulated
Electrical connection	One standard female BNC on atmosphere side
1" Bolt and Compression Fitting Terminations
Materials	304 stainless steel, Teflon^®, ceramic, beryllium nickel, VITON^®
Temperature	Operational environment to 300° C with water cooling or 165° C without<
Mounting	1.015" ±0.010" diameter aperture
CF 40 Welded Terminations
Materials	304 stainless steel, Teflon, ceramic, beryllium nickel
Temperature	Operational environment to 450° C with water cooling or 200° C without
Mounting	Mates with 2.75" ConFlat type flanges with 1.375" I.D. min.

X CLOSE

Configuration Options

Ordering Code Example: CDS-A0F37-66

Type of Sensor (includes user manual, crystals sold separately)	Code	Configuration
Standard cool drawer (water lines parallel to crystal face)	A	A
Right angle cool drawer (water lines perpendicular to crystal face)	B	A
Shutter Assembly	Code	Configuration
None	0	0
Standard shutter	1	0
Length of Sensor (see notes 1 and 3)	Code	Configuration
Length: 10-66cm (4-26")	F	F
Feedthrough (see notes 2 and 4)	Code	Configuration
1" bolt	3	3
CF40	4	3
Feedthrough Connection (see notes 2, 3, and 4)	Code	Configuration
Sensor welded to feedthrough	7	7
Feedthrough equipped with Ultra-Torr compression fittings (allows for adjustable sensor length). NOT AVAILABLE WITH CF40 FEEDTHROUGH AND SHUTTER COMBINATION.	8	7
Welded Sensor Length (see notes 1 and 2) (Use only when feedthrough connection is 7 Not required when feedthrough connection option is 8)	Code	Configuration
Weld length in centimeters, 10-66 cm (4-26") Other lengths may be available: contact factory. Other lengths will be considered a special order and will be subject to additional cost and lead time.	10-66	66

NOTES

Orders for a WELDED sensor/feedthrough combination are measured from center of the crystal to the vacuum side (sealing surface) of the feedthrough. Once a welded sensor order is confirmed, it can not be canceled.
Feedthrough configuration varies depending on options selected (type of feedthrough and connection). Example: CDS-A1F47-XX and -B1F47-XX use a two-piece hybrid feedthrough design due to dimensional limits of a standard CF40.
For sensors ordered without a weld connection (option "8"), tubes are made to a length of approximately 76.2 cm (30") for standard Cool Drawer Sensors and approximately 66cm (26") for Right Angle Cool Drawer Sensors.
Cool Drawer Sensors are not available without a feedthrough and must be either welded or connected with Ultra-Torr fittings.
The following combinations are not available: CDS-A1F48, CDS-B1F48 Examples of non-valid part numbers include all options with compression fittings and a welded sensor length; for example, CDS-A0F48-20, etc.

A Complete Package Consists of

Note: Below you will find common methods to either monitor or control the deposition rate of your process. Please note that not all controllers are listed. If you do not see the equipment that you need, please contact your local KJLC Sales Representative.

If you would like to monitor the deposition rate:

STM-2
FTM-2400

If you would like to control the deposition rate:

FTC-2800
XTC/3S
XTC/3M
IC6

Compatible Part	Description	Components Needed
Inficon STM-2 USB Thin Film Thickness/Rate Deposition Monitor	The STM-2 is a USB powered thin film monitor that allows for deposition monitoring via a laptop of 1 QCM. Up to 8 STM-2’s can be connected to a laptop at once.	Inficon Cool Drawer Single Sensor with feedthrough STM-2, and Crystals; oscillator, 6-inch BNC cable (oscillator to feedthrough), and 16 ft. USB cable (oscillator to computer) are included. Note: Shuttered units cannot be used with the STM-2.
KJLC FTM-2400 Multi-Channel Quartz Crystal Monitor	The KJLC FTM-2400 is a user-friendly deposition monitor with digital input, relay outputs, and the capability to connect up to 6 single QCMs or 1 dual QCM for sequential display.	Inficon Cool Drawer Single Sensor with feedthrough, KJLC FTM-2400, oscillator kit, and crystals.
KJLC FTC-2800 Multi-Channel Quartz Crystal Controller	The KJLC FTC-2800 is an economical, user-friendly deposition controller, able to control your deposition rate and connect up to 4 single QCMs or 2 dual QCMs. The KJLC FTC-2800C also allows for co-deposition.	Inficon Cool Drawer Single Sensor with feedthrough, KJLC FTC-2800, oscillator kit, and crystals.
Inficon XTC/3S Deposition Controller	The Inficon XTC/3S is a deposition controller that includes the patented ModeLock frequency measurement to provide highly accurate control of a single layer process. The XTC/3S allows the control of up to 2 sources, 2 single QCMs, or 2 dual QCMs.	Inficon Cool Drawer Single Sensor with feedthrough, Inficon XTC/3S, ModeLock oscillator kit, and crystals.
Inficon XTC/3M Multi-Layer Deposition Controller	The Inficon XTC/3M is a deposition controller that includes the patented ModeLock frequency measurement to provide highly accurate control of a multi-layer process. The XTC/3M allows the control of up to 2 sources, 2 single QCMs, or 2 dual QCMs.	Inficon Cool Drawer Single Sensor with feedthrough, Inficon XTC/3S, ModeLock oscillator kit, and crystals.
Inficon IC6 Thin Film Deposition Controller	The Inficon IC6 is the industry standard for deposition and includes the patented ModeLock frequency measurement for high-resolution rates and thicknesses. The IC6 has the capability to control up to 6 sources, 8 single QCMs or 4 dual QCMs.	Inficon Cool Drawer Single Sensor with feedthrough, Inficon IC6, ModeLock oscillator kit, and crystals.

Start Your Configuration

1. Base Unit:	Cool Drawer Single Sensor [CDS-]
2. Type of Sensor:
3. Shutter Assembly:
4. Length of Sensor:	10-66cm (4-26") [F]
5. Feedthrough:
6. Feedthrough Connection:
7. Length:

NOTES

All shuttered sensors require the 750-420-G1 pneumatic control valve.
Orders for sensors welded to the feedthroughs should be requested with a length, in cm, between 20 and 99 cm. If another length is needed, please contact us by clicking here . Once special length or manufactured order is confirmed, it can not be canceled.
Sensor lengths are measured from center of the crystal to the vacuum side (sealing surface) of the feedthrough.
For sensors ordered without a weld connection (option "0" or "8"), tubes are made to a length of 29.75" (756mm) for "E" length and Cool Drawer sensors and 44.75" (1137mm) for "G" length sensors.
For sensors ordered with the Ultra Torr compression fittings, the length will be set to the maximum length (76 cm). This length can then be adjusted.
The following combinations are not available: CDS-A1F48, CDS-B1F48.
The STM-2 USB Thin Film Thickness/Rate Deposition Monitor cannot be used with shuttered versions of this sensor.

Accessories Table

X CLOSE

Description	Reference	Type	Part Number	Price	In Stock	Add Item
Description	Reference	Type	Part Number	Price	In Stock	Add Item
CRYSTALTWO SWITCH, INFICON, TWO 6” BNC CABLES.	CRYSTALTWO Switch, INFICON, Two 6" BNC Cables	Spare Part	779-220-G1	P.O.R.
CRYSTALTWO SWITCH, INFICON, TWO 20” BNC CABLES.	CRYSTALTWO Switch, INFICON, Two 20" BNC Cables	Spare Part	779-220-G2	P.O.R.
—	* Hex nut	Spare Parts	084-026	P.O.R.
—	* Lockwasher	Spare Parts	084-064	P.O.R.
—	Conduit Brazed assembly - long pin	Spare Parts	123223-1	P.O.R.
RETAINER ASSEMBLY W/CERAMIC INSULATOR, "THE NEXT GENERATION"	Cool Drawer Sensor Crystal Retainer	Spare Parts	123259	P.O.R.
RETAINER ASSEMBLY W/CERAMIC INSULATOR, "THE NEXT GENERATION"	Cool Drawer Sensor Crystal Retainer	Spare Parts	123259	P.O.R.
CRYSTAL DRAWER AND RETAINER ASSEMBLY, THE NEXT GENERATION	Cool Drawer Sensor Drawer and Retainer Combo	Spare Parts	123260	P.O.R.
—	Shutter bracket	Spare Parts	123417	P.O.R.
—	Bellows cover	Spare Parts	123418	P.O.R.
—	Shutter	Spare Parts	123419	P.O.R.
—	PSV100 PNEUMATIC VALVE 12 VDC	Spare Parts	147202	P.O.R.
PNEUMATIC SHUTTER ACTUATOR CONTROL VALVE,24V AC/DC	Solenoid Valve, 24V	Valve	750-420-G1	P.O.R.
