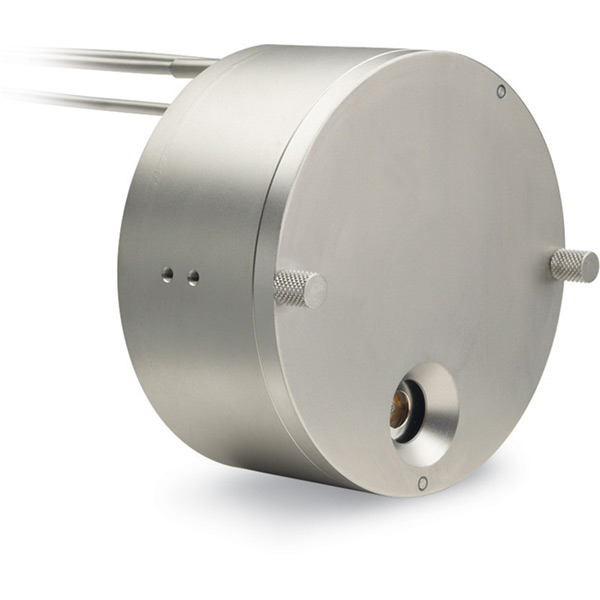

Inficon Crystal 12 Sensor

CrystalTwelve Sensors - Twelve crystals contained in one sensor. Provides continuity for long processes by automatically rotating to a back up crystal should a crystal failure occur.

Overview
A Complete Package Consists of

Notes:

Auto Crystal Switch only with IC6, Cygnus2, XTC/3M, XTC/3S, FTC-2800, and FTC-2800C.
The Crystal 12 sensor requires the 750-420-G1 solenoid valve with orifice installed (PN 059-0189, included in Crystal 12 ship kit).
All in-vacuum lengths are supported with IC6, Cygnus2, and XTC/3. FTC-2800 and FTC-2800C support in-vacuum lengths up to 78 cm (30.75 in.) only.
Position feedback is not available with FTC-2800 or FTC-2800C.
**Crystal 12 does not include a feedthrough

Videos

INFICON Crystal 12 Sensor Crystal Exchange

INFICON technical support representative presents step-by-step instructions on how to properly replace quartz monitor crystals in the Crystal 12 Sensor.

Runtime: 3:43

A Complete Package Consists of

Note: Below you will find common methods to either monitor or control the deposition rate of your process. Please note that not all controllers are listed. If you do not see the equipment that you need, please contact your local KJLC Sales Representative.

If you would like to control the deposition rate:

FTC-2800
XTC/3S
XTC/3M
IC6

Compatible Part	Description	Components Needed
KJLC FTC-2800 Multi-Channel Quartz Crystal Controller	The KJLC FTC-2800 is an economical, user-friendly deposition controller, able to control your deposition rate and connect up to 4 single QCMs or 2 dual QCMs or 1 Crystal 12. The KJLC FTC-2800C also allows for co-deposition.	Inficon Crystal 12, feedthrough, KJLC FTC-2800, oscillator kit, and crystals.
Inficon XTC/3S Deposition Controller	The Inficon XTC/3S is a deposition controller that includes the patented ModeLock frequency measurement to provide highly accurate control of a single layer process. The XTC/3S allows the control of up to 2 sources, 2 single QCMs, or 2 dual QCMs or 1 Crystal 12.	Inficon Crystal 12, feedthrough, Inficon XTC/3S, ModeLock oscillator kit, and crystals.
Inficon XTC/3M Multi-Layer Deposition Controller	The Inficon XTC/3M is a deposition controller that includes the patented ModeLock frequency measurement to provide highly accurate control of a multi-layer process. The XTC/3M allows the control of up to 2 sources, 2 single QCMs, or 2 dual QCMs or 1 Crystal 12.	Inficon Crystal 12, feedthrough, Inficon XTC/3S, ModeLock oscillator kit, and crystals.
Inficon IC6 Thin Film Deposition Controller	The Inficon IC6 is the industry standard for deposition and includes the patented ModeLock frequency measurement for high-resolution rates and thicknesses. The IC6 has the capability to control up to 6 sources, 8 single QCMs or 4 dual QCMs, or 8 Crystal 12's.	Inficon Crystal 12, feedthrough, Inficon IC6, ModeLock oscillator kit, and crystals.

Start Your Configuration

1. Base Unit:	Inficon Crystal 12 Sensor [XL12-1]
2. In-Vacuum Cable Assembly Length:
3. Crystal Carousel Assembly:
4. Front Deposition Shield:
5. Mounting Post with Hardware:
6. Solenoid Valve:

Accessories Table

X CLOSE

Description	Reference	Type	Part Number	Price	In Stock	Add Item
Description	Reference	Type	Part Number	Price	In Stock	Add Item
CABLE,IN VACUUM,FOR HV SENSORS MICRODOT CONNECTOR,1032 THREAD, 30.75 INCHES (78.1 CM) LONG	In-vacuum cable, 78.1 cm (30.75 in.)	Cable	007-044	$120.00
IN-VACUUM CABLE 36" CONNECTS SENSOR HEAD TO FEEDTHROUGH	In-vacuum cable, 91.4 cm (36 in.)	Cable	007-059	$120.00
LEYBOLD INFICON IN-VACUUM CABLE,2FT LONG	In-vacuum cable, 61.0 cm (24 in.)	Cable	321-039-G11	P.O.R.
LEYBOLD INFICON IN-VACUUM CABLE ASSEMBLY, 6 INCH LENGTH	In-vacuum cable, 15.2 cm (6 in.)	Cable	321-039-G12	P.O.R.
—	0.125 in. x 30 in. (3.175 mm x 762 mm) seamless tubing	Spare Parts	007-126	P.O.R.
—	Ball bearing	Spare Parts	070-0779	P.O.R.
—	Shaft spacer	Spare Parts	070-0867	P.O.R.
—	Dowel pin	Spare Parts	070-1253	P.O.R.
—	E-Ring (spindle component)	Spare Parts	070-1254	P.O.R.
—	Spindle bearing (spindle component)	Spare Parts	070-1268	P.O.R.
—	#2 Split lock washer	Spare Parts	070-170	P.O.R.
—	#4-40 X 3.12 Hex head screw	Spare Parts	070-177	P.O.R.
—	Retaining ring	Spare Parts	070-398	P.O.R.
—	#0-80 x .170 Flat washer	Spare Parts	080-007-P1	P.O.R.
—	#0-80 X .188 Socket head screw	Spare Parts	080-009-P1	P.O.R.
—	#0-80 Split washer	Spare Parts	080-013	P.O.R.
—	#0-80 x .375 Phillips pan head screw	Spare Parts	080-038	P.O.R.
—	#2 Flat washer	Spare Parts	082-022	P.O.R.
—	#2-56 x .250 Hex socket screw	Spare Parts	082-024	P.O.R.
—	#2 Internal lock washer	Spare Parts	082-032	P.O.R.
—	#2-56 x .187 Phillips screw	Spare Parts	082-045	P.O.R.
—	#4-40 X .187 Hex socket head screw	Spare Parts	084-004	P.O.R.
—	#4-40 x .250 Flat head screw	Spare Parts	084-048	P.O.R.
—	#4 Split lock washer	Spare Parts	084-054	P.O.R.
—	#4-40 x 1.125 Socket head screw	Spare Parts	084-093	P.O.R.
—	#6-32 x 3/8 socket head screw	Spare Parts	086-036	P.O.R.
—	#6 Split lock washer	Spare Parts	086-038	P.O.R.
—	#6 Flat washer	Spare Parts	086-041	P.O.R.
—	#6-21 x 1/8 set screw	Spare Parts	086-084-P2	P.O.R.
—	Leaf spring (carousel component)	Spare Parts	321-038-P6	P.O.R.
—	Spring post	Spare Parts	750-252-P2	P.O.R.
EXTENSION SPRING	Extension spring	Spare Parts	750-256-P2	P.O.R.
—	Bearing Shaft	Spare Parts	750-258-P2	P.O.R.
—	Actuator cover	Spare Parts	750-276-P3	P.O.R.
—	Pneumatic actuator	Spare Parts	750-286-P2	P.O.R.
—	Detent	Spare Parts	750-291-P1	P.O.R.
—	Detent spacer	Spare Parts	750-292-P2	P.O.R.
RATCHET	Ratchet	Spare Parts	750-293-P2	P.O.R.
—	Stop ratchet	Spare Parts	750-294-P2	P.O.R.
—	Pawl and actuator	Spare Parts	750-295-G1	P.O.R.
—	Resistor Network	Spare Parts	750-642-G1	P.O.R.
—	Housing	Spare Parts	750-644-G1	P.O.R.
—	Spindle	Spare Parts	750-647-P1	P.O.R.
—	Electrical connection	Spare Parts	750-649-G1	P.O.R.
APERTURE PLATE	Aperture plate (without dowel pin)	Spare Parts	750-650-P1	P.O.R.
—	Resistor network support	Spare Parts	750-651-P1	P.O.R.
—	Carousel	Spare Parts	750-652-G1	P.O.R.
—	Resistor network insulator	Spare Parts	750-655-P1	P.O.R.
—	Crystal insulator (carousel component)	Spare Parts	750-656-P1	P.O.R.
—	Grounding leaf spring	Spare Parts	750-657-P1	P.O.R.
—	Deposition shield	Spare Parts	750-658-G1	P.O.R.
—	Location screw (spindle component)	Spare Parts	750-660-P1	P.O.R.
—	Contact terminal (carousel component)	Spare Parts	750-661-P1	P.O.R.
—	#2-56 Torsion spring shoulder screw	Spare Parts	750-665-P1	P.O.R.
—	Torsion spring	Spare Parts	750-671-P1	P.O.R.
