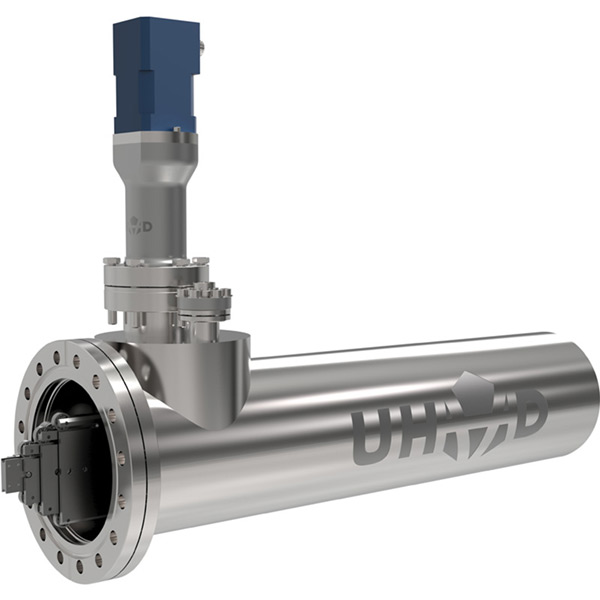

LTTA - Linear Telescopic Transfer Arm

Key Features

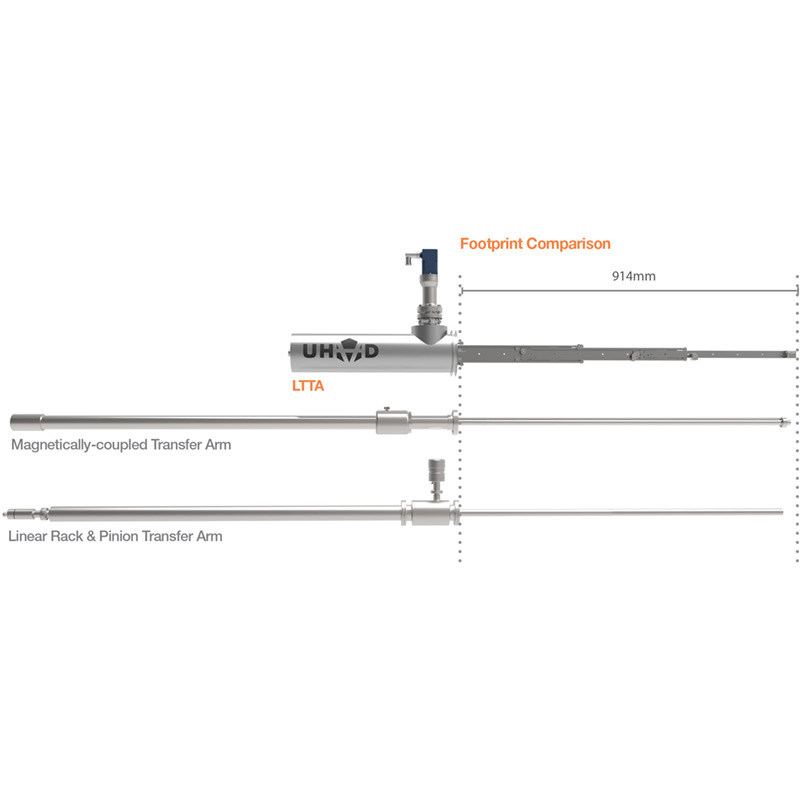

  • Ultra-compact footprint (less than half of a conventional transfer arm)
  • Up to 914mm extension
  • Fast Entry Loadlock options
  • 20mm lift/lower option
  • Low vertical deflection under load

Telescoping transfer arm with 914mm travel, specifically designed for use in situations where installation space is a limiting factor or a compact system footprint is desired. Available with options for 20mm of arm lift/lower, motorized actuation and choice of Fast Entry Loadlock.

Available with manual or motorized actuation and additional 20mm arm lift/lower option to facilitate sample hand-off. With less than 3.0mm vertical deflection under a 5.0N load the LTTA is a compact alternative to conventional magnetically-coupled transfer arms. The LTTA can be supplied complete with a Fast Entry Lock (FEL) for convenience.

Product Datasheet
For a download of the product datasheet, click here.
Manipulation and Motion FAQ
Click here for answers to some of the most common questions we are asked.
