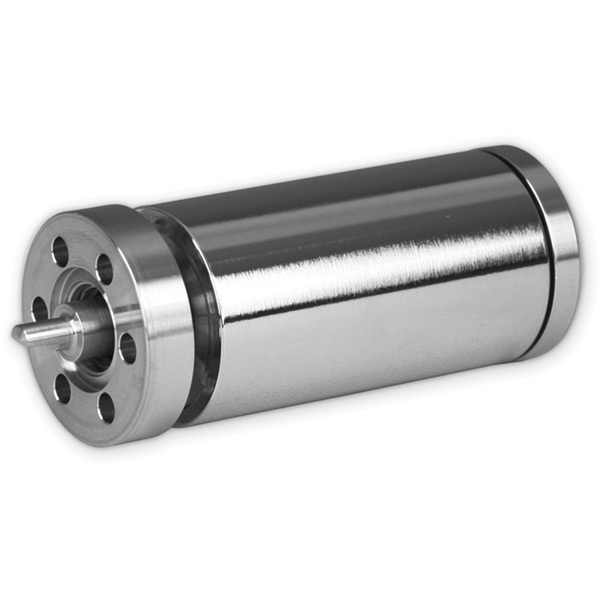

Representative Image

MD10 (CF10, 1"OD) MicroDrive Magnetically Coupled Rotary Motion Feedthroughs

Features

Smallest UHV drive on market
High torque / size ratio
No bellows or dynamic seals
Bakeable to 250°C
Zero-backlash under low load

This miniature drive is made possible through the use of the new CF10 Micro-Flange, which has an outside diameter of just 25.4 mm. The body diameter is no bigger than the flange OD, which makes the MD10 ideal for rotating small instrumentation loads, in applications where space is at a premium.

Specifications Table

MagiDrive Body	MD10
System Mounting Flange	DN10CF, 25.4 mm (1" O.D.)
Construction	Machined from one piece of 316L
Shaft Style	Stub Shaft with Flat
Breakaway-Away Torque	0.18 Nm (0.13 lbf)
Maximum No-Load Spin Speed (Standard Bearings)	230 rpm
Maximum Shaft Axial Thrust	20N (4.5 lbf ft)
Bakeout	250°C

Dimensional Drawings

Charts

Manual Options

Code	Actuation Method	Description
T	Standard Drive	The standard manual drive.
TF	Standard w/friction control	An adjustable friction system enables the drive to hold its position when the desired position is reached. Resistance to turn is adjusted by tightening/loosening a single screw located at the rear of the drive.
CB	Calibrated thimble w/friction control	A calibrated thimble gives a visual indication of the drive position with one degree increments. It is fitted with the friction control system as standard.
P	Timing Pulley	A pulley is mounted on the end of the drive allowing users to install their own motor assembly.
D	Dual Shaft	MagiDrives can be supplied with both input & output shafts. This allows the customer to retrofit their own motorization option or to fit a position encoder

Motorization Options

Code	Actuation Method	Description
IS	In-Line Stepper Motor	A co-axially mounted stepper motor providing minimum lateral footprint.
ID	In-Line DC Motor	A co-axially mounted DC motor providing minimum lateral footprint.

Pneumatic Options

Code	Actuation Method	Description
RA	Rotary Actuator	Pneumatically actuated MagiDrives are fitted with an adjustable rotary actuator providing from 30-170° sweep. Flow controllers enable input and exhaust to be throttled to control speed.
RAI	Stepper Motor Driven	As above but fitted with two reed switches to provide position feedback for system interlock facilities. This option also includes LEDs allowing the user to see the position of the shutter in open or closed states.

Gear Option Table

Drive	Motor Type	Gear Option	Maximum Output Torque (Nm)	Maximum Output Spin Speed (RPM)
MD 10	Inline DC (ID)	1	0.18	230
		2	0.18	135
		3	0.18	70
		4	0.18	42
	Inline Stepper (IS)	1	0.07	200
		2	0.18	23
		3	0.18	16
		4	0.18	8

Configure a new MD10
Stocked Products

Start Your Configuration

Configured Part

Please configure the product below and then add to cart or submit a quote enquiry. A KLJC representative will contact you as quickly as possible to provide further information.

In the interim, you can fill out the form below to get in touch with our product specialist.

* Please explain what part you are looking for:

* Name:

* Company Name:

* Country of Origin:

* State (if US):

* City:

* Zip/Mail Code:

* Email Address:

* Phone number:

By clicking this box you agree to our Privacy Notice *

Ordering Table

X CLOSE

	Description	Flange Size	Shaft	Actuation	Bearings	Part Number	Price	In Stock	Add To Cart
	Description	Flange Size	Shaft	Actuation	Bearings	Part Number	Price	In Stock	Add To Cart
	MANUALLY ACTUATED MD10 MICRODRIVE MOUNTED ON A CF10 MICROFLANGE. FITTED WITH A STUB SHAFT, EXTERNAL FRICTION CONTROL SYSTEM AND STANDARD BEARINGS.	DN10CF (1.00" OD)	Stub	Manual	Standard	MD10TFX000Z	P.O.R.
