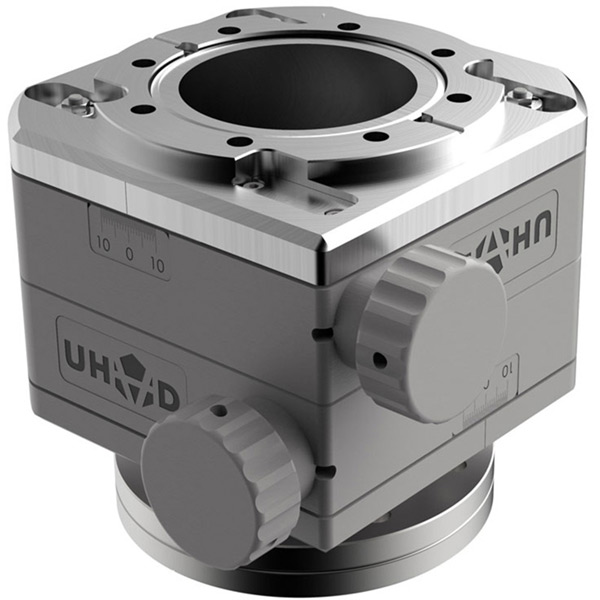

XY Aligner

Key Features

  • CF40 (2.75" OD), CF64 (4.5" OD), CF100 (6" OD) mounting options
  • CF40 mounting flange option provides 38mm clear bore
  • CF64 & CF100 mounting flange options provide 65mm clear bore
  • XY Stroke +/-10mm with 0.5mm repeatability
  • Max applied load in vertical axis: 100N
  • Max applied load in horizontal axis: 10Nm

The XYA provides basic X & Y manipulation for low duty-cycle applications where high precision is not required. Available in CF40 (2.75" OD) , CF63 (4.5" OD) and CF100 (6" OD) mounting flange options with clear bores of 38mm and 65mm respectively. All options provide +/-10mm of X & Y motion with typical repeatability of 0.5mm (based on mid position between 1mm increments).

If precision or motorization are required then the Multibase XY products are the right choice.

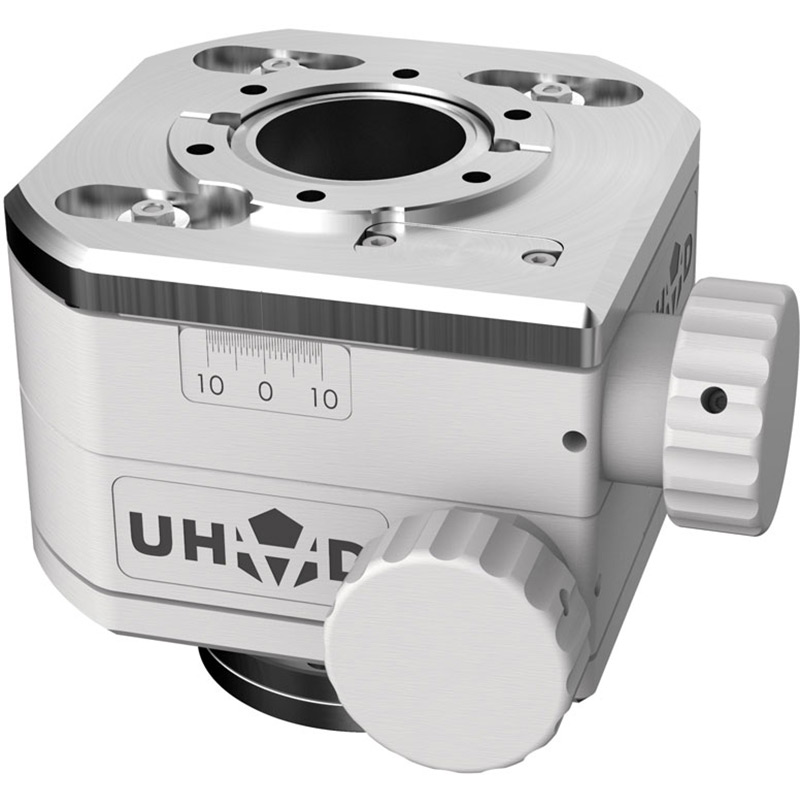

XYA40 Specifications

Traveling flange: CF40 (2.75" OD) tapped holes

  • Clear bore: 38mm
  • XY stroke: +/-10mm
  • Typical repeatability: 0.5mm (based on mid position between 1mm increments)
  • Max applied load in vertical axis: 100N
  • Max applied load in horizontal axis: 10Nm
  • Bakeout to 250°C
  • Fully adjustable mounting orientation

Mounting flange options and part numbers

  • CF40 (2.75"OD) clear holes - Part Number XYA40-40-H
  • CF63 (4.5"OD) clear holes - Part Number XYA40-63-H

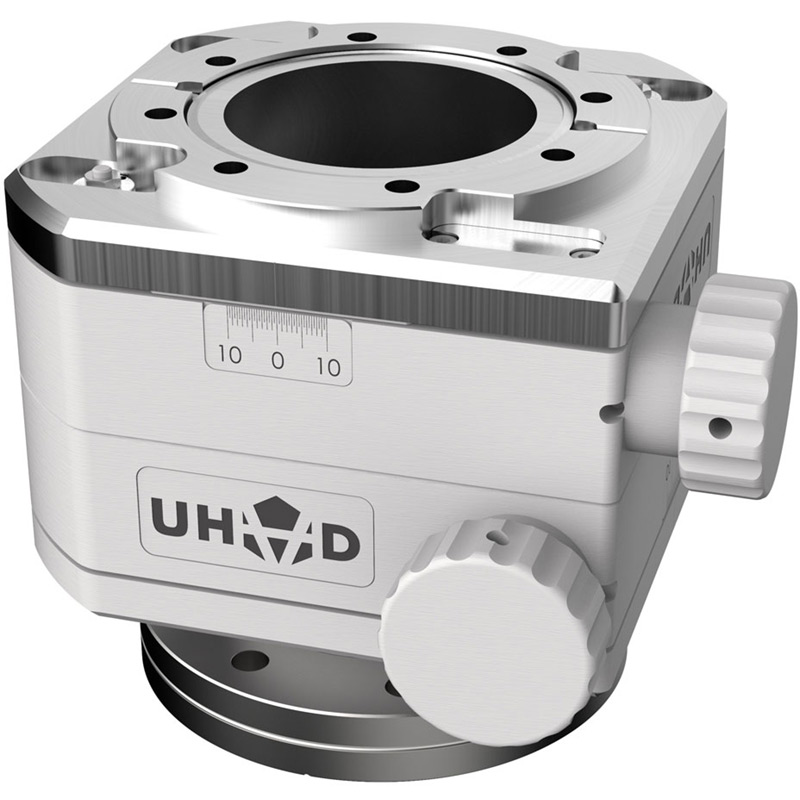

XY63 Specifications

Traveling flange: CF63 (4.5" OD) tapped holes

  • Clear bore: 65mm
  • XY stroke: +/-10mm
  • Typical repeatability: 0.5mm (based on mid position between 1mm increments)
  • Max applied load in vertical axis: 100N
  • Max applied load in horizontal axis: 10Nm
  • Bakeout to 250°C
  • Fully adjustable mounting orientation

Mounting flange options and part numbers

  • CF63 (4.5"OD) clear holes - Part Number XYA63-63-H
  • CF100 (6.0"OD) clear holes - Part Number XYA63-100-H
VacuCADSM Download
To download 3D STP files for the XY Aligner, please click here to login to your account and the files will be available.
Product Downloads
For a downloadable datasheet on this product, please click here.
Manipulation and Motion FAQ
Click here for answers to some of the most common questions we are asked.
