Representative Image
Fast-Entry Access Load Lock Doors Fast-Entry Access Load Lock Doors 1

Fast-Entry Access Load Lock Doors

Enable quick and convenient access into vacuum vessels, such as process chambers and load locks.

Features

  • Offered in a wide range of UHV flange sizes, with or without viewport glass
  • Precision-hinged access doors seal with a fluorocarbon o-ring
  • KJLC's® unique counterbored mounting bolt design enables a maximum diameter opening through the door (order appropriate socket head bolt sets and kits below)
  • Viewport glass is sealed with an o-ring and is easily removed for cleaning or replacement
  • Threaded knob is engaged to keep door closed during pumpdown
  • Comes standard with Tempered Pyrex viewport glass. Replacement Quartz glass available.

NOTE:

  • It is recommended the knob be disengaged during the vent cycle to prevent overpressurization of the vessel.
  • For more information, please go to Fast-Entry Access Doors Hardware.

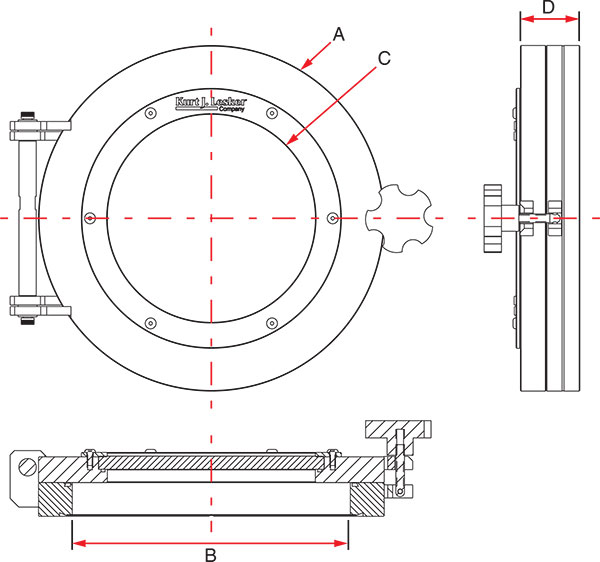

Dimensional Drawings


Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Ordering Table

X CLOSE
Description A Flange Size B Door Opening C Viewport Diameter D Thickness Part Number
VacuCADSM
Price In Stock Add To Cart
Description A Flange Size B Door Opening C Viewport Diameter D Thickness Part Number
VacuCADSM
Price In Stock Add To Cart
LOADLOCK DOOR ASSM,4.5"OD UHV NO VIEWPORT
4-1/2" CF
2.51"
N/A
1.28"
DS-LL0450
(please log in)
$793.95 In Stock
LOAD LOCK DOOR ASSM,4.5"OD UHV WITH VIEWPORT
4-1/2" CF
2.51"
2.50"
1.28"
DS-LL0450VP
(please log in)
$1,175.00 Contact KJLC for Availability
LOADLOCK DOOR ASSM,6"OD UHV NO VIEWPORT
6" CF
4.01"
N/A
1.42"
DS-LL0600
(please log in)
$904.50 In Stock
LOAD LOCK DOOR ASSM,6"OD UHV WITH VIEWPORT
6" CF
4.01"
4.00"
1.42"
DS-LL0600VP
(please log in)
$926.65 In Stock
LOADLOCK DOOR ASSM,8"OD UHV NO VIEWPORT
8" CF
6.02"
N/A
1.41"
DS-LL0800
(please log in)
$1,206.00 In Stock
LOADLOCK DOOR ASY,8"OD UHV WITH VIEWPORT
8" CF
6.02"
6.00"
1.42"
DS-LL0800VP
(please log in)
$1,133.65 In Stock
LOADLOCK DOOR ASSM,10"OD UHV NO VIEWPORT
10" CF
8.02"
N/A
1.72"
DS-LL1000
(please log in)
$1,281.40 In Stock
LOAD LOCK DOOR ASSEMBLY,10", WITH VIEWPORT
10" CF
8.02"
6.00"
1.72"
DS-LL1000VP
(please log in)
$1,340.70 In Stock
LOADLOCK DOOR ASSY,12"OD UHV, NO VIEWPORT
12" CF
10.02"
N/A
1.78"
DS-LL1200
(please log in)
$3,065.00 Contact KJLC for Availability
LOAD LOCK DOOR ASSEMBLY WITH VIEWPORT,12"
12" CF
10.02"
6.00"
1.78"
DS-LL1200VP
(please log in)
$2,686.40 Contact KJLC for Availability
LOAD LOCK DOOR ASSEMBLY,13-1/4 WITHOUT VIEWPORT
13-1/4" CF
10.02"
N/A
1.83"
DS-LL1325
(please log in)
P.O.R. Contact KJLC for Availability
LOAD LOCK DOOR ASSY,13-1/4" OD UHV,W/ VIEWPORT
13-1/4" CF
10.02"
6.00"
1.83"
DS-LL1325VP
(please log in)
$3,675.00 Contact KJLC for Availability
LOAD LOCK DOOR ASSEMBLY WITHOUT VIEWPORT,14"
14" CF
11.47"
N/A
1.83"
DS-LL1400
(please log in)
$3,085.35 Contact KJLC for Availability
LOAD LOCK DOOR ASSM,14"OD UHV WITH VIEWPORT
14" CF
11.47"
6.00"
1.83"
DS-LL1400VP
(please log in)
$3,644.15 Contact KJLC for Availability
X CLOSE

Accessories Table

X CLOSE
Description Reference Fits LL Door Part No. Part Number Price In Stock Add To Cart
VacuCADSM
Description Reference Fits LL Door Part No. Part Number Price In Stock Add To Cart
VacuCADSM
BOLT KIT,FOR DS-LL0450,DS- LL0450VP,TPD MTG FLG,(8)BOLTS Bolt Kit for Tapped Mating Flange DS-LL0450
DS-LL0450VP
SBK31224075S4-8 P.O.R. In Stock
N/A
BOLT KIT,FOR DS-LL0600,DS- LL0600VP,TPD MTG FLG,(16)BOLTS Bolt Kit for Tapped Mating Flange DS-LL0600
DS-LL0600VP
SBK31224100S4-16 P.O.R. In Stock
N/A
BOLT KIT,FOR DS-LL0800,DS- LL0800VP,TPD MTG FLG,(20)BOLTS Bolt Kit for Tapped Mating Flange DS-LL0800
DS-LL0800VP
SBK31224100S4-20 $12.90 Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL1000,DS- LL1000VP,TPD MTG FLG,(24)BOLTS Bolt Kit for Tapped Mating Flange DS-LL1000
DS-LL1000VP
SBK31224100S4-24 $37.50 Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL1200,DS- LL1200VP,STD MTG FLG,(32)B&W Bolt Kit for Tapped Mating Flange DS-LL1200
DS-LL1200VP
SBK31224100S4-32 P.O.R. In Stock
N/A
BOLT KIT FOR DS-LL1325,DS-LL1325VP,DS-LL1400,DS-LL1400VP,TPD Bolt Kit for Tapped Mating Flange DS-LL1325
DS-LL1325VP
DS-LL1400
DS-LL1400VP
SBK37524125S4-30 P.O.R. Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL0600,DS- LL0600VP,STD MTG FLG,(16)B,N,W Bolt Set for Standard Mating Flange DS-LL0600
DS-LL0600VP
SBS31224150S4-16 $25.75 Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL0450,DS- LL0450VP,STD MTG FLG,(8)B,N&W Bolt Set for Standard Mating Flange DS-LL0450
DS-LL0450VP
SBS31224150S4-8 $12.90 Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL0800,DS- LL0800VP,STD MTG FLG,(20)B,N,W Bolt Set for Standard Mating Flange DS-LL0800
DS-LL0800VP
SBS31224175S4-20 $39.20 In Stock
N/A
BOLT KIT,FOR DS-LL1000,DS- LL1000VP,STD MTG FLG,(24)B,N,W Bolt Set for Standard Mating Flange DS-LL1000
DS-LL1000VP
SBS31224200S4-24 $83.45 In Stock
N/A
BOLT KIT,FOR DS-LL1200,DS- LL1200VP,STD MTG FLG,(32)B,N,W Bolt Set for Standard Mating Flange DS-LL1200
DS-LL1200VP
SBS31224200S4-32 $54.30 Contact KJLC for Availability
N/A
BOLT KIT,FOR DS-LL1325VP,DS- LL1400VP,STD MTG FLG,(30)B,N,W Bolt Set for Standard Mating Flange DS-LL1325
DS-LL1400
DS-LL1325VP
DS-LL1400VP
SBS37524225S4-30 $67.35 Contact KJLC for Availability
N/A
WINDOW,POLISHED QUARTZ,3-1/8"OD, 3/8"THICK Window, Polished Quartz, 3-1/8" OD, 3/8" Thick 4-1/2" Doors VPW31QRT037 P.O.R. In Stock
N/A
WINDOW,TEMPERED PYREX,3-1/8" OD,3/8"THICK,GROUND EDGES Window, Tempered Pyrex, 3-1/8" OD,3/8" Thick, Ground Edges 4-1/2" Doors VPW31TPYR037 $100.50 In Stock
N/A
WINDOW,POLISHED FUSED QUARTZ,4-1/2" OD,3/8"THICK Window, Polished Fused Quartz, 4-1/2" OD, 3/8" Thick 6" & 6-3/4" Doors VPW45QRT037 P.O.R. Contact KJLC for Availability
N/A
WINDOW,TEMPERED PYREX,4-1/2" OD,3/8"THICK,GROUND EDGES Window, Tempered Pyrex, 4-1/2" OD,3/8" Thick, Ground Edges 6" & 6-3/4" Doors VPW45TPYR037 $97.50 In Stock
N/A
WINDOW,POLISHED QUARTZ,6-1/2"OD 3/8"THICK Window, Polished Quartz, 6-1/2" OD 3/8" Thick 8" through 14-1/2" Doors VPW65QRT037 P.O.R. Contact KJLC for Availability
N/A
WINDOW,TEMPERED PYREX,6-1/2"OD 3/8"THICK,GROUND EDGES Window, Tempered Pyrex, 6-1/2" OD 3/8" Thick, Ground Edges 8" through 14-1/2" Doors VPW65TPYR037 $100.50 In Stock
N/A
