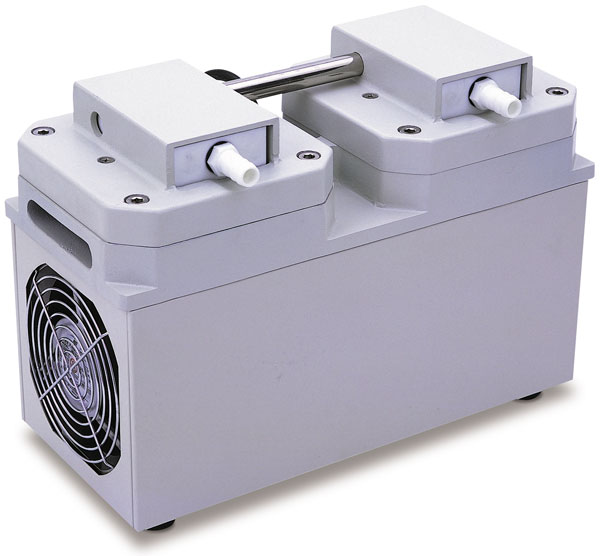

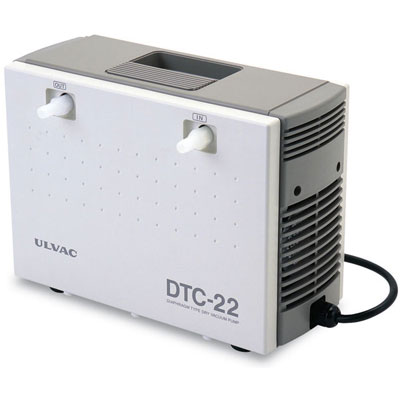

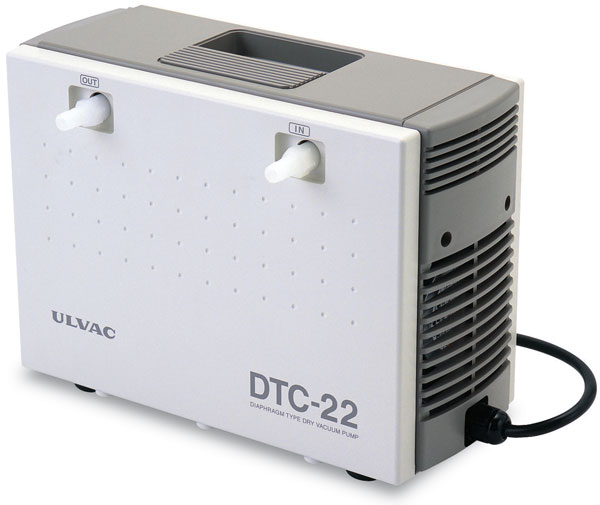

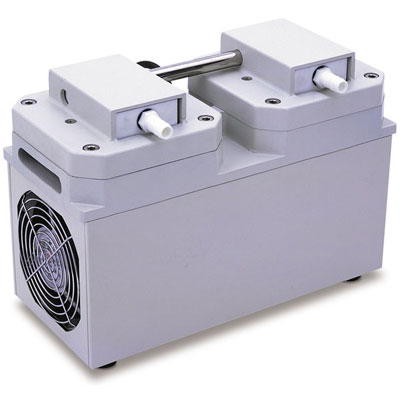

Ulvac DTC22 Ulvac DTC41 Ulvac DTC60 Ulvac DTC120

ULVAC® Chemical—DTC Series

ULVAC DTC Series diaphragm pumps feature integral forced-air cooling. They have two-stage PTFE diaphragms that are ideal for pumping corrosive gases and organic solvents.

Features:

  • Only PTFE components are exposed to vacuum-ideal for corrosive applications
  • Designed to back most hybrid turbo pumps

Applications:

  • Rotary evaporator
  • Evaporating system
  • Vacuum concentrator
  • Vacuum filtration
  • Vacuum drying systems
  • Laser-gas circulation

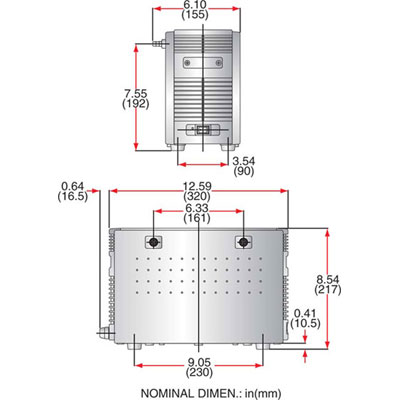

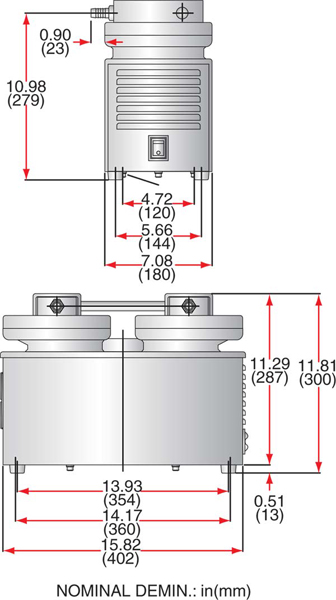

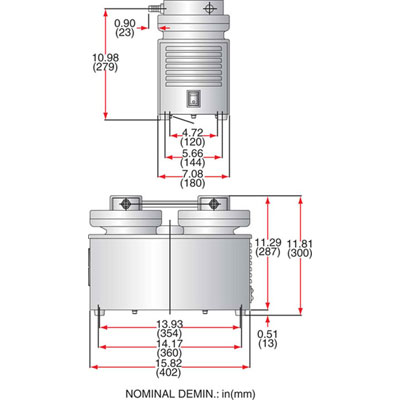

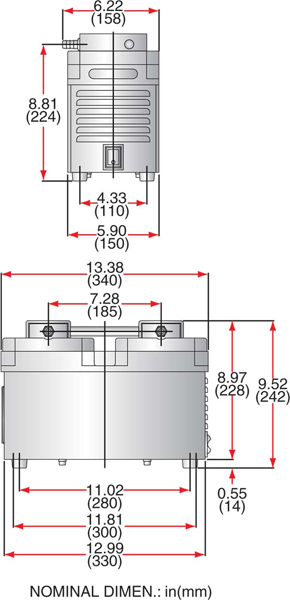

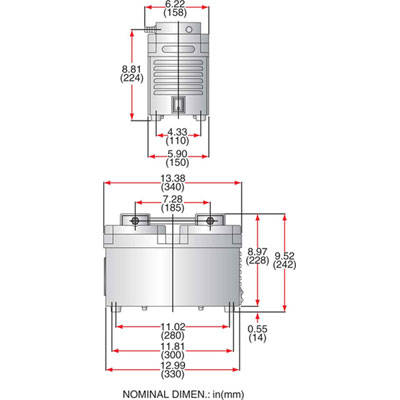

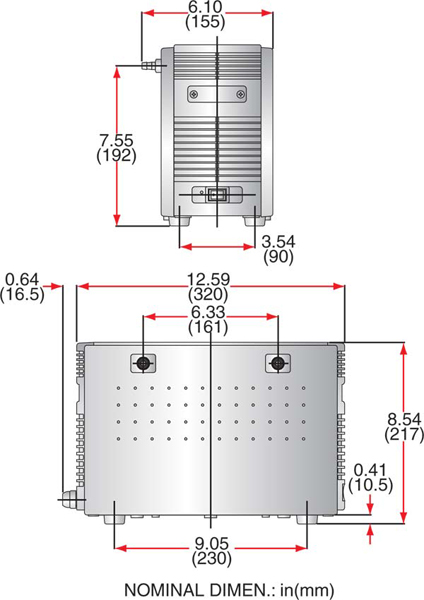

Dimensional Drawings


Ulvac DTC22 Ulvac DTC41 Ulvac DTC60 Ulvac DTC120

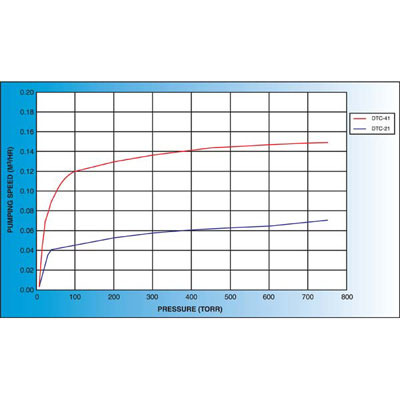

Charts


ULVAC DTC 21-41 ULVAC DTC 60-120

Specifications Table

Pump Model DTC-120 DTC-22 DTC-41 DTC-60
Pumping Speeds
50 (Hz)
4.24 CFM
120 L/min
2.00 L/s
7.20 m3/hr
60 (Hz)
5.00 CFM
141 L/min
2.35 L/s
8.49 m3/hr
50 (Hz)
0.85 CFM
24.0 L/min
0.40 L/s
1.44 m3/hr
60 (Hz)
1.20 CFM
34.0 L/min
0.56 L/s
2.04 m3/hr
50 (Hz)
1.41 CFM
40.0 L/min
0.67 L/s
2.40 m3/hr
60 (Hz)
1.70 CFM
48.1 L/min
0.80 L/s
2.89 m3/hr
50 (Hz)
2.12 CFM
60.0 L/min
1.00 L/s
3.60 m3/hr
60 (Hz)
2.50 CFM
70.8 L/min
1.17 L/s
4.25 m3/hr
Ultimate Pressure
Total Without Gas Ballast
1.00 x 101 hPA
1.00 x 101 mbar
1.00 x 103 Pa
7.50 x 100 Torr
Total Without Gas Ballast
1.00 x 101 hPA
1.00 x 101 mbar
1.00 x 103 Pa
7.50 x 100 Torr
Total Without Gas Ballast
1.00 x 101 hPA
1.00 x 101 mbar
1.00 x 103 Pa
7.50 x 100 Torr
Total Without Gas Ballast
1.00 x 101 hPA
1.00 x 101 mbar
1.00 x 103 Pa
7.50 x 100 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 0.54 ( 0.40 ) 0.07 ( 0.05 ) 0.13 ( 0.10 ) 0.27 ( 0.20 )
Inlet Flange 16 mm Hose Barb
9 mm Hose Barb
9 mm Hose Barb
14 mm Hose Barb
Exhaust Flange 16 mm Hose
9 mm Hose
9 mm Hose
14 mm Hose
Noise db(A) 72.0 54.0 53.0 65.0
Series Chemical
Chemical
Chemical
Chemical
Weight Lbs (kg) 59.4 ( 27.0 ) 16.0 ( 7.30 ) 23.1 ( 10.5 ) 39.6 ( 18.0 )
Dimensions in. (mm.) 16.2 x 7.99 x 11.8
(411 x 203 x 300 )
11.4 x 5.59 x 7.95
(289 x 142 x 202 )
13.3 x 6.10 x 8.54
(337 x 155 x 217 )
13.4 x 6.22 x 9.53
(340 x 158 x 242 )
Lubrication Type Dry
Dry
Dry
Dry
Technology Type Diaphragm
Diaphragm
Diaphragm
Diaphragm
X CLOSE
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Description Part Number Price In Stock Add To Cart
Pump Model Inlet Flange Voltage & Phases Description Part Number Price In Stock Add To Cart
DTC-120 16 mm Hose Barb 115 VAC, 50/60 Hz, 1-Ø PUMP,DIAPHRAGM,5 CFM,7.5 TORR, 16MM TUBE INLET,115V,50/60HZ, 1PH DTC-120-1 $3,644.00 Contact KJLC for Availability
