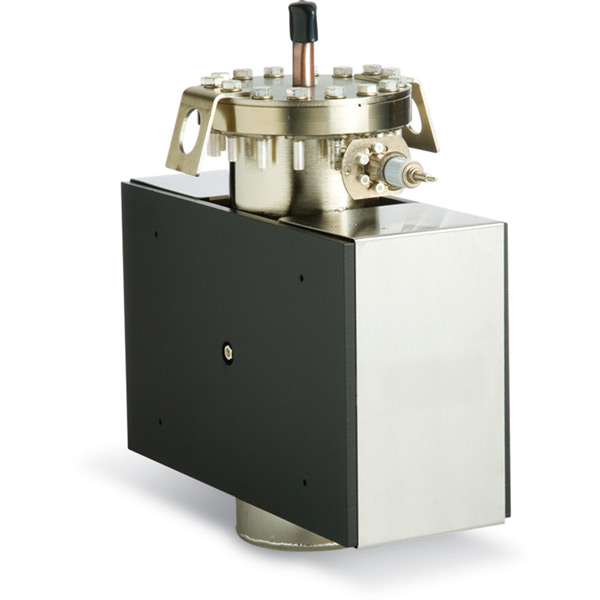

Representative Image

Gamma Low Profile Ion Pumps (100L - 1200LX)

Ion pumps are used in a wide variety of high and ultra-high vacuum (UHV) environments. They can reach the lowest possible vacuum for an economical cost.

Features:

Vibration free operation.
Low maintenance & low operational cost.
Non-contaminating technology.
Radiation tolerance.
Long operational life.

Applications:

X-Ray Sources
Semiconductor
Electron Microscopes
Accelerators
Beam Lines

Dimensional Drawings

100L

Charts

100L

Specifications Table

Pump Model	100L	200L	300L	400L	400LX	600L	600LX	800LX	1200LX
Pumping Speeds	Conventional Diode N2: 100 L/s Noble Diode (DI) N2: 80.0 L/s Triode N2: 80.0 L/s	Conventional Diode N2: 200 L/s Noble Diode (DI) N2: 160 L/s Triode N2: 160 L/s	Conventional Diode N2: 300 L/s Noble Diode (DI) N2: 240 L/s Triode N2: 240 L/s	Conventional Diode N2: 400 L/s Noble Diode (DI) N2: 320 L/s Triode N2: 320 L/s	Conventional Diode N2: 400 L/s Noble Diode (DI) N2: 320 L/s Triode N2: 320 L/s	Conventional Diode N2: 600 L/s Noble Diode (DI) N2: 480 L/s Triode N2: 480 L/s	Conventional Diode N2: 600 L/s Noble Diode (DI) N2: 480 L/s Triode N2: 480 L/s	Conventional Diode N2: 800 L/s Noble Diode (DI) N2: 640 L/s Triode N2: 640 L/s	Conventional Diode N2: 1200 L/s Noble Diode (DI) N2: 960 L/s Triode N2: 960 L/s
Ultimate Pressure	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr	Ultimate 1.00 x 10^-11 mbar 7.50 x 10^-12 Torr
Max Start Pressure	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr	1.00 x 10^-3 mbar 7.50 x 10^-4 Torr
Types	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode	• Conventional Diode • Noble Diode (DI) • Triode

X CLOSE

Note:

P/N's below are configured for a standard order offering. Other element styles, feedthrough options, port orientations, heater, and TSP options are available. Contact us for a quotation on other ion pump not listed below.

Accessories Table

	Description	For Pump Model(s)	Accessory Type	Part Number	Price	In Stock	Add To Cart
	Description	For Pump Model(s)	Accessory Type	Part Number	Price	In Stock	Add To Cart
	Bolting Kit, For DN160CF (8.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket	100L, 1200LX, 200L, 300L, 400L, 400LX, 600L, 600LX, 800LX	CF Hardware Kit	DN160CF-HDKIT	$134.00
	Bolting Kit, For DN200CF (10.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket	1200LX, 600L, 600LX, 800LX	CF Hardware Kit	DN200CF-HDKIT	$144.35
	Bolting Kit, For Dn100CF (6.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket	100L, 200L	CF Hardware Kit	DN100CF-HDKIT	$108.25
	Gamma Digetel™ Multi Pump Controller, Positive Polarity, with Safeconn Connector, Single Channel, 110V NEMA 5-15	100L-1200LX	Pump Controller	MPCQ1PS1U1SSNI	P.O.R.
	Gamma Digetel™ Multi Pump Controller, Positive Polarity, with Safeconn Connector, Single Channel, 220V NEMA 6-15	100L-1200LX	Pump Controller	MPCQ1PS1U2SSNI	P.O.R.
	Gamma Digetel™ Multi Pump Controller, Positive Polarity, with Safeconn Connector, Single Channel, 230V CEE 7.7	100L-1200LX	Pump Controller	MPCQ1PS1E2SSNI	P.O.R.
	Gamma Digetel™ Multi Pump Controller, Positive Polarity, with Safeconn Connector, Single Channel, 230V Type G	100L-1200LX	Pump Controller	MPCQ1PS1K2SSNI	P.O.R.
	Gamma Digetel™ Quad Pump Controller with Safeconn Connector, Single Channel, 110VAC NEMA 5-15	100L-300L	Pump Controller	QPC1PS1U1SSNI	P.O.R.
	Gamma Digetel™ Quad Pump Controller with Safeconn Connector, Single Channel, 220VAC NEMA 6-15	100L-300L	Pump Controller	QPC1PS1U2SSNI	P.O.R.
	Gamma Digetel™ Quad Pump Controller with Safeconn Connector, Single Channel, 230VAC CEE 7-7	100L-300L	Pump Controller	QPC1PS1E2SSNI	P.O.R.
	Gamma Digetel™ Quad Pump Controller with Safeconn Connector, Single Channel, 230VAC Type G	100L-300L	Pump Controller	QPC1PS1K2SSNI	P.O.R.
	Gamma High Voltage Cable,Safeconn to Safeconn Connector, 30m Length	100L-1200LX	Interconnect Cable	SCPSC30SC	P.O.R.
	Gamma High Voltage Cable,Safeconn to Safeconn Connector, 6m Length	100L-1200LX	Interconnect Cable	SCPSC6SC	P.O.R.
