Leybold ECODRY plus Multi-Stage Roots Vacuum Pumps

The ECODRY plus series of multi-stage roots vacuum pumps are designed to provide high performance while maintaining the lowest noise level in applications such as mass spectrometers, large scale accelerators, electron microscopes, and ultra-high vacuum (UHV).

Features

  • Designed to serve - Quietly
  • Minimal vibration for ultra-sharp microscopy
  • Robust and reliable
  • No contamination, extra-low maintenance
  • Clean, mobile, and strong

Applications

  • Mass Spectrometers
  • Electron Microscopes
  • Cryo Pump Regeneration
  • Large Scale Accelerators
  • Ultra-High Vacuum (UHV)

Dimensional Drawings


Charts


Videos

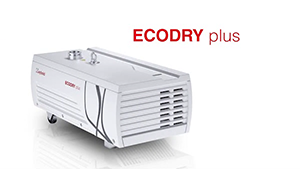

Leybold ECODRY Plus

Runtime: 2:50

Specifications Table

Pump Model ECODRY 25 Plus ECODRY 35 Plus ECODRY 40 Plus ECODRY 65 Plus
Pumping Speeds
50 (Hz)
14.7 CFM
416 L/min
6.90 L/s
25.0 m3/hr
60 (Hz)
14.7 CFM
416 L/min
6.90 L/s
25.0 m3/hr
50 (Hz)
20.6 CFM
583 L/min
9.70 L/s
35.0 m3/hr
60 (Hz)
20.6 CFM
583 L/min
9.70 L/s
35.0 m3/hr
50 (Hz)
23.5 CFM
666 L/min
11.1 L/s
40.0 m3/hr
60 (Hz)
23.5 CFM
666 L/min
11.1 L/s
40.0 m3/hr
50 (Hz)
32.0 CFM
907 L/min
15.1 L/s
54.4 m3/hr
60 (Hz)
32.0 CFM
907 L/min
15.1 L/s
54.4 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
300 g/hr 500 g/hr
Ultimate Pressure
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 Pa
7.50 x 10-3 Torr
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 Pa
7.50 x 10-3 Torr
Total With Gas Ballast
3.00 x 10-2 hPA
3.00 x 10-2 mbar
3.00 Pa
2.30 x 10-2 Torr
Total With Gas Ballast
3.00 x 10-2 hPA
3.00 x 10-2 mbar
3.00 Pa
2.30 x 10-2 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 0.80 ( 0.60 ) 0.80 ( 0.60 ) 0.80 ( 0.60 ) 0.80 ( 0.60 )
Inlet Flange KF25
KF25
KF25
KF40
Exhaust Flange KF25
KF25
KF16
KF16
Noise db(A) 52.0 52.0 52.0 52.0
Compression Stages 7
7
7
7
Series Standard
Standard
Standard
Standard
Weight Lbs (kg) 63.9 ( 29.0 ) 63.9 ( 29.0 ) 94.8 ( 43.0 ) 94.8 ( 43.0 )
Dimensions in. (mm.) 19.5 x 9.76 x 12.0
(494 x 248 x 304 )
19.5 x 9.76 x 12.0
(494 x 248 x 304 )
23.6 x 12.6 x 11.7
(600 x 320 x 298 )
23.6 x 12.6 x 11.7
(600 x 320 x 298 )
Lubrication Type Dry
Dry
Dry
Dry
Technology Type Multi-Stage Roots
Multi-Stage Roots
Multi-Stage Roots
Multi-Stage Roots
X CLOSE
Product Brochure
For the ECODRY 25-35 Plus brochure, please click here.

For the ECODRY 40-65 Plus brochure, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Product Cross-Reference Inquiry
Click here to fill out our form and KJLC can cross-reference your vacuum product and suggest either a replacement or equivalent product.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Manual Description Part Number Price In Stock Add To Cart Accessories
Pump Model Inlet Flange Voltage & Phases Manual Description Part Number Price In Stock Add To Cart Accessories
ECODRY 40 Plus KF25 120VAC, 60 Hz Download PDF PUMP, MULTI-STAGE ROOTS LEYBOLD ECODRY 40 PLUS KF25, 23.5CFM / M^3/HR, 120V SINGLE PHASE 161040V21 P.O.R. Contact KJLC for Availability
ECODRY 40 Plus KF25 220VAC, 50 Hz Download PDF PUMP, MULTI-STAGE ROOTS LEYBOLD ECODRY 40 PLUS KF25, 23.5CFM / M^3/HR, 200-240V SINGLE PHASE 161040V22 P.O.R. Contact KJLC for Availability
ECODRY 65 Plus KF40 120VAC, 60 Hz Download PDF PUMP, MULTI-STAGE ROOTS LEYBOLD ECODRY 65 PLUS KF40, 32CFM / M^3/HR, 120V SINGLE PHASE 161065V21 P.O.R. Contact KJLC for Availability
ECODRY 65 Plus KF40 220VAC, 50 Hz Download PDF PUMP, MULTI-STAGE ROOTS LEYBOLD ECODRY 65 PLUS KF40, 32CFM / M^3/HR, 200-240V SINGLE PHASE 161065V22 P.O.R. Contact KJLC for Availability
ECODRY 25 Plus KF25 120VAC, 60 Hz Download PDF LEYBOLD ECODRY 25 PLUS, MULTI-STAGE ROOTS PUMP, KF25 INLET FLANGE, 100-127V / 200-240V, (SWITCHABLE) 50/60 Hz SINGLE PHASE, 25 M^3/HR 162025V001 $14,291.00 Contact KJLC for Availability
Accessories Menu
ECODRY 35 Plus KF25 120VAC, 60 Hz Download PDF LEYBOLD ECODRY 35 PLUS, MULTI-STAGE ROOTS PUMP, KF25 INLET FLANGE, 100-127V / 200-240V, (SWITCHABLE) 50/60 Hz SINGLE PHASE, 35 M^3/HR 162035V001 P.O.R. Contact KJLC for Availability
Accessories Menu
CloseX
X CLOSE
Can't Find The Pump You're Looking For? Pump Selection Guide Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart
Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart
Auto-Soft Flow Actuated Check Valve (KF40) ECODRY 65 Plus
Hardware
225-0040
$246.00
Contact KJLC for Availability
Cable, DSUB 9 to USB Adaptor for X104 Interface, Ecodry Plus ECODRY 25 Plus, ECODRY 35 Plus
Rough Pump Accessory
161820USB
P.O.R.
Contact KJLC for Availability
Cable, USB Connection A/B, Ecodry Plus ECODRY 25 Plus, ECODRY 35 Plus
Rough Pump Accessory
800110V0180
P.O.R.
Contact KJLC for Availability
Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring ECODRY 40 Plus
KF Hardware Kit
QF25-HDKIT
$19.60
Contact KJLC for Availability
Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring ECODRY 65 Plus
KF Hardware Kit
QF40-HDKIT
$26.05
Contact KJLC for Availability
Connection Cable for Secuvac to Ecodry Plus ECODRY 25 Plus, ECODRY 35 Plus
Rough Pump Accessory
800103V0040
P.O.R.
Contact KJLC for Availability
Inlet Valve, Leybold Secuvac, 24V, KF25 ECODRY 25 Plus, ECODRY 35 Plus
Rough Pump Accessory
215065
P.O.R.
Contact KJLC for Availability
KJLC 300 Convection Enhanced Pirani, KF16 ECODRY 40 Plus, ECODRY 65 Plus
Gauge
KJL300806
$795.00
Contact KJLC for Availability
Leybold Mesh Inlet Dirt Trap, KF25 ECODRY 40 Plus
Foreline Accessory
ES41170206
$122.00
Contact KJLC for Availability
Leybold Mesh Inlet Dirt Trap, KF40 ECODRY 65 Plus
Foreline Accessory
E41170121
P.O.R.
Contact KJLC for Availability
Mains Cable with CEE 7/7 Plug (Northern Europe) for single phase pumps, 2m length ECODRY 40 Plus, ECODRY 65 Plus
Mains Cable
161810EU
P.O.R.
Contact KJLC for Availability
Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase, 2m length ECODRY 40 Plus, ECODRY 65 Plus
Mains Cable
141103US
$77.00
In Stock
Mains Cable with NEMA 6-15 (N.A.) Plug for single phase, 2.5m length ECODRY 40 Plus, ECODRY 65 Plus
Mains Cable
161810US
$75.00
In Stock
Mains Cable with Type G (UK) Plug for single phase pumps, 2m length ECODRY 40 Plus, ECODRY 65 Plus
Mains Cable
161810UK
P.O.R.
Contact KJLC for Availability
Mounting Kit, Leybold Ecodry 25 and 25 Plus ECODRY 25 Plus, ECODRY 35 Plus
Rough Pump Accessory
162800A001
P.O.R.
Contact KJLC for Availability
Power Supply, KJLC 275i or 300, US Plug End ECODRY 40 Plus, ECODRY 65 Plus
Gauge Power Cable
KJLPS401A
$96.00
Contact KJLC for Availability
