Adixen™ (Pfeiffer®) Analytical Pascal Series

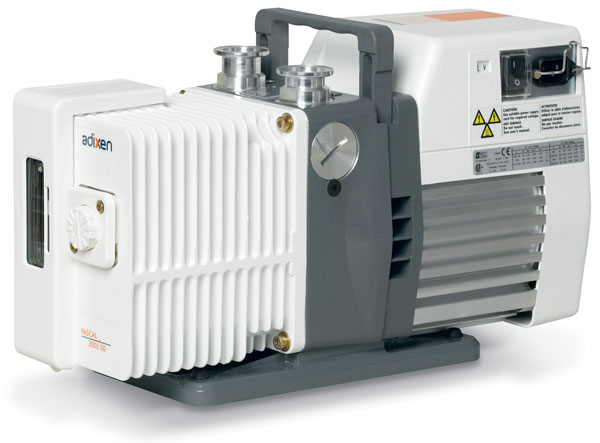

Representative Image

Adixen™ (Pfeiffer®) Analytical Pascal Series

Features:

Operates more quietly than the Adixen standard series pump
Low operating temperatures decrease oil vapor backstreaming while improving ultimate vacuum

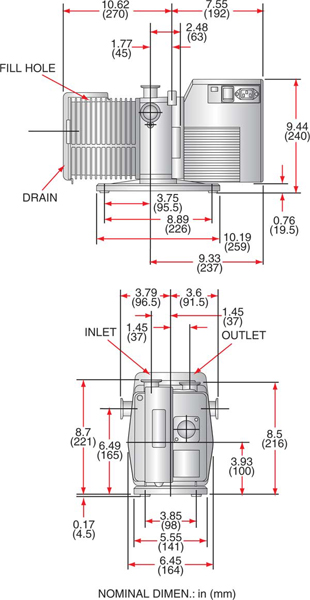

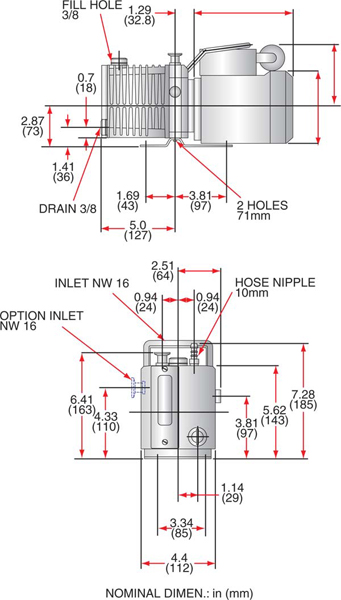

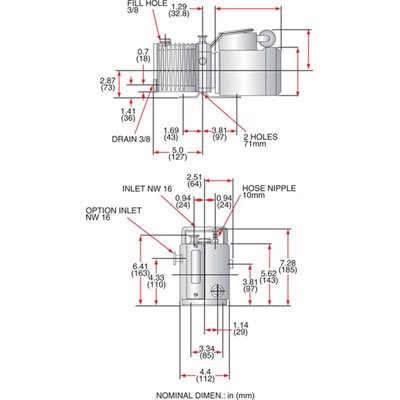

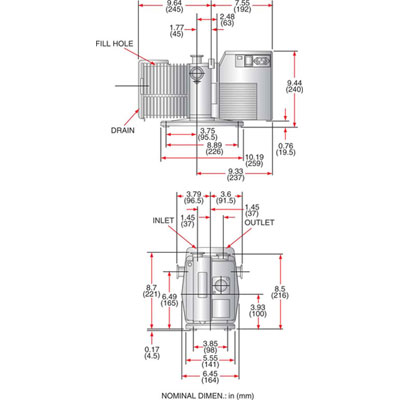

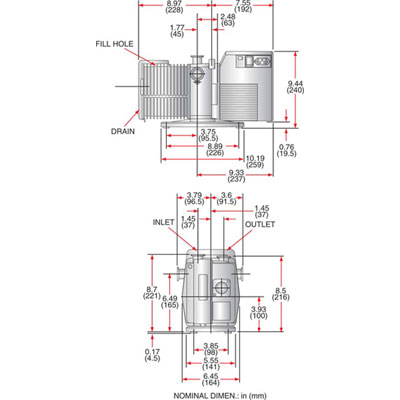

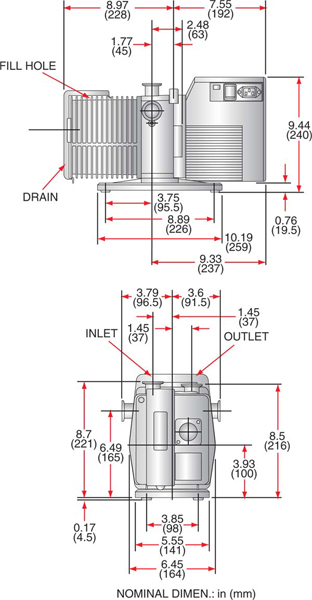

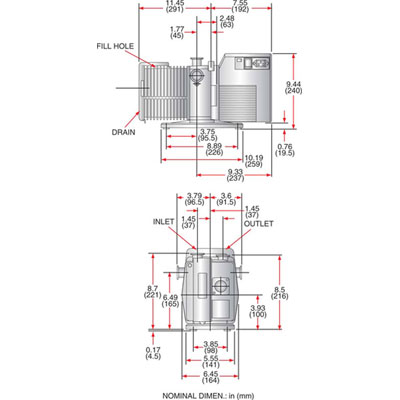

Dimensional Drawings

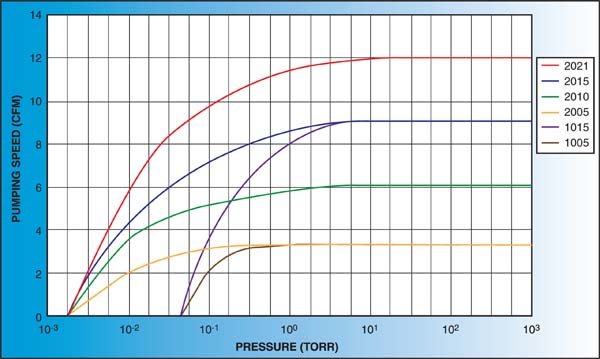

Charts

Adixen™ (Pfeiffer®) Analytical Pascal Serieschart

Specifications Table

Pump Model	2005I	2010I	2015I	2021I
Pumping Speeds	50 (Hz) 2.94 CFM 83.3 L/min 1.38 L/s 5.00 m3/hr 60 (Hz) 3.50 CFM 99.1 L/min 1.64 L/s 5.95 m3/hr	50 (Hz) 5.30 CFM 149 L/min 2.49 L/s 9.00 m3/hr 60 (Hz) 6.20 CFM 175 L/min 2.91 L/s 10.5 m3/hr	50 (Hz) 8.24 CFM 233 L/min 3.87 L/s 14.0 m3/hr 60 (Hz) 9.70 CFM 274 L/min 4.56 L/s 16.5 m3/hr	50 (Hz) 10.6 CFM 299 L/min 4.98 L/s 18.0 m3/hr 60 (Hz) 13.0 CFM 368 L/min 6.11 L/s 22.1 m3/hr
Max Water Vapor Pumping Rate (with gas ballast)	120 g/hr	125 g/hr	110 g/hr	90.0 g/hr
Ultimate Pressure	Partial With Gas Ballast 1.00 x 10^-4 hPA 1.00 x 10^-4 mbar 1.00 x 10^-2 Pa 7.50 x 10^-4 Torr Partial Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr Total With Gas Ballast 1.00 x 10^-2 hPA 1.00 x 10^-2 mbar 1.00 Pa 7.50 x 10^-3 Torr Total Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr	Partial With Gas Ballast 1.00 x 10^-4 hPA 1.00 x 10^-4 mbar 1.00 x 10^-2 Pa 7.50 x 10^-4 Torr Partial Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr Total With Gas Ballast 1.00 x 10^-2 hPA 1.00 x 10^-2 mbar 1.00 Pa 7.50 x 10^-3 Torr Total Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr	Partial With Gas Ballast 1.00 x 10^-4 hPA 1.00 x 10^-4 mbar 1.00 x 10^-2 Pa 7.50 x 10^-4 Torr Partial Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr Total With Gas Ballast 1.00 x 10^-2 hPA 1.00 x 10^-2 mbar 1.00 Pa 7.50 x 10^-3 Torr Total Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr	Partial With Gas Ballast 1.00 x 10^-4 hPA 1.00 x 10^-4 mbar 1.00 x 10^-2 Pa 7.50 x 10^-4 Torr Partial Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr Total With Gas Ballast 1.00 x 10^-2 hPA 1.00 x 10^-2 mbar 1.00 Pa 7.50 x 10^-3 Torr Total Without Gas Ballast 5.00 x 10^-4 hPA 5.00 x 10^-4 mbar 5.00 x 10^-2 Pa 3.75 x 10^-4 Torr
Cooling Method(s)	Method Convection	Method Convection	Method Convection	Method Convection
Motor Power HP (kW)	0.74 ( 0.55 )	0.74 ( 0.55 )	0.74 ( 0.55 )	0.74 ( 0.55 )
Inlet Flange	KF25	KF25	KF25	KF25
Exhaust Flange	KF25	KF25	KF25	KF25
Oil Type(s)	Hydrocarbon Oil Part: KJLSS19Q1	Hydrocarbon Oil Part: KJLSS19Q1	Hydrocarbon Oil Part: KJLSS19Q1	Hydrocarbon Oil Part: KJLSS19Q1
Oil Capacity Quarts (Liters) *Unless otherwise noted	0.87 ( 0.83 )	1.00 ( 0.95 )	1.00 ( 0.95 )	1.03 ( 0.98 )
Noise db(A)	55.0	55.0	56.0	56.0
Compression Stages	2	2	2	2
Series	Analytical	Analytical	Analytical	Analytical
Weight Lbs (kg)	55.0 ( 25.0 )	57.0 ( 26.0 )	59.5 ( 27.0 )	62.0 ( 28.0 )
Dimensions in. (mm.)	8.98 x 7.20 x 4.55 (228 x 183 x 115 )	9.65 x 8.03 x 5.37 (245 x 204 x 136 )	10.6 x 8.86 x 6.20 (270 x 225 x 157 )	11.5 x 9.69 x 7.03 (291 x 246 x 178 )
Lubrication Type	Wet	Wet	Wet	Wet
Technology Type	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive

X CLOSE

Notes:

Hydrocarbon prepared pumps will be shipped with one charge of oil.
PFPE prepared pumps will require purchase of PFPE oil separately.

Got VacuCAD^SM?

VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in
