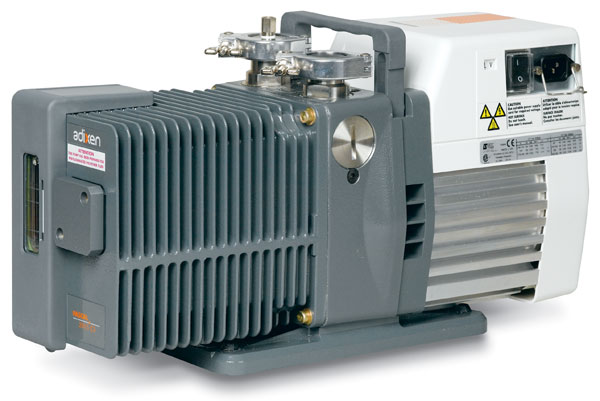

Representative Image
Adixen™ (Pfeiffer®) Chemical Pascal C1 Series 2033C1

Adixen™ (Pfeiffer®) Chemical Pascal C1 Series

NOTE: The 2033 and 2063 Models are no longer available. Please contact us by clicking here or +1 412 387 9200 for available alternatives. Manuals still available, click here.

Pascal C1 Series 2 Stage:

Specially designed for pumping corrosive or aggressive gases in the chemical industry and R&D, meeting strict requirements with regard to material compatibility and corrosion resistance.

C1 Series rotary vane pumps are adapted to different applications involving corrosive media; free of sensitive materials, they offer reliable operation even in aggressive conditions.

  • Stainless steel, gray cast iron, aluminum
  • FPM seals
  • High strength oil sight glass
  • Integrated anti-suckback activated by the oil pump, providing vacuum integrity
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications Table

Pump Model 2005C1 2010C1 2015C1 2021C1
Pumping Speeds
50 (Hz)
2.94 CFM
83.3 L/min
1.38 L/s
5.00 m3/hr
60 (Hz)
3.50 CFM
99.1 L/min
1.64 L/s
5.95 m3/hr
50 (Hz)
5.30 CFM
149 L/min
2.49 L/s
9.00 m3/hr
60 (Hz)
6.20 CFM
175 L/min
2.91 L/s
10.5 m3/hr
50 (Hz)
8.24 CFM
233 L/min
3.87 L/s
14.0 m3/hr
60 (Hz)
9.70 CFM
274 L/min
4.56 L/s
16.5 m3/hr
50 (Hz)
10.6 CFM
299 L/min
4.98 L/s
18.0 m3/hr
60 (Hz)
13.0 CFM
368 L/min
6.11 L/s
22.1 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
110 - 120 g/hr 125 g/hr 110 g/hr 90.0 g/hr
Ultimate Pressure
Partial With Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-4 Torr
Partial Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Total Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Partial With Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-4 Torr
Partial Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Total Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Partial With Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-4 Torr
Partial Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Total Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Partial With Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-4 Torr
Partial Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-3 Torr
Total With Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Total Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 0.74 ( 0.55 ) 0.74 ( 0.55 ) 0.74 ( 0.55 )
Inlet Flange KF25
KF25
KF25
KF25
Exhaust Flange KF25
KF25
KF25
KF25
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Oil Capacity Quarts (Liters)
*Unless otherwise noted
0.87 ( 0.83 ) 1.00 ( 0.95 ) 1.00 ( 0.95 ) 1.03 ( 0.98 )
Noise db(A) 55.0 55.0 56.0 56.0
Compression Stages 2
2
2
2
Series Corrossive
Corrossive
Corrosive
Corrosive
Weight Lbs (kg) 55.0 ( 25.0 ) 57.0 ( 26.0 ) 59.5 ( 27.0 ) 62.0 ( 28.0 )
Dimensions in. (mm.) 8.98 x 7.20 x 4.55
(228 x 183 x 115 )
9.65 x 8.03 x 5.37
(245 x 204 x 136 )
10.6 x 8.86 x 6.20
(270 x 225 x 157 )
11.5 x 9.69 x 7.03
(291 x 246 x 178 )
Lubrication Type Wet
Wet
Wet
Wet
Technology Type Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
X CLOSE
Note:
  • One charge of hydrocarbon oil will be provided with each pump.

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Manual Note Description Part Number Price In Stock Add To Cart Accessories
Pump Model Inlet Flange Voltage & Phases Manual Note Description Part Number Price In Stock Add To Cart Accessories
2005C1 KF25 180-254 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,2005 C1,180-254V,50/60HZ,1-PHASE 205C1MHEM P.O.R. Contact KJLC for Availability
2005C1 KF25 90–132 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,CHEM,3.5CFM, 110V,50/60HZ,1PH 205C1MLAM $3,848.00 Contact KJLC for Availability
2005C1 KF25 342-520 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL,2005 C1,342-520V,50/60HZ,3-PHASE 205C1THEM P.O.R. Contact KJLC for Availability
2005C1 KF25 170-300 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL,2005 C1,170-300V,50/60HZ,3-PHASE 205C1TLAM P.O.R. Contact KJLC for Availability
2010C1 KF25 180-254 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,CHEM,6.8CFM, 180-254V,50/60HZ,1PH 210C1MHEM P.O.R. Contact KJLC for Availability
2010C1 KF25 90–132 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,CHEM,6.8CFM, 90-132V,50/60HZ,1PH 210C1MLAM $4,482.00 Contact KJLC for Availability
2010C1 KF25 342-520 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL,2010 C1,342-520V,50/60HZ,3-PHASE 210C1THEM P.O.R. Contact KJLC for Availability
2015C1 KF25 180-254 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,2015 C1,180-254V,50/60HZ,1-PHASE 215C1MHEM P.O.R. Contact KJLC for Availability
2015C1 KF25 90–132 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,CHEM,10.6CFM,90-132V 50/60HZ,1PH 215C1MLAM $4,928.00 Contact KJLC for Availability
2015C1 KF25 342-520 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL,2015 C1,342-520V,50/60HZ,3-PHASE 215C1THEM P.O.R. Contact KJLC for Availability
2015C1 KF25 170-300 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL SER,10.6CFM, 170-300V 50/60HZ ,3PH 215C1TLAM $4,928.00 Contact KJLC for Availability
2021C1 KF25 180-254 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,2021 C1,180-254V,50/60HZ,1-PHASE 221C1MHEM P.O.R. Contact KJLC for Availability
2021C1 KF25 90-132 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,MECH,PASCAL,CHEM,14.8CFM, 90-132V,50/60HZ,1PH 221C1MLAM $5,400.00 Contact KJLC for Availability
2021C1 KF25 342-520 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL,2021 C1,342-520V,50/60HZ,3-PHASE 221C1THEM P.O.R. Contact KJLC for Availability
2021C1 KF25 170-300 VAC, 50/60 Hz, 3-Ø Download PDF 1 PUMP,MECH,PASCAL SER,14.8CFM,170-300V, 50/60HZ ,3PH 221C1TLAM P.O.R. Contact KJLC for Availability
CloseX
X CLOSE

 Notes:
1.
Power cord is not included and will need to be purchased separately based on regional plug type.
Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart
For Pump Model(s) Description Part Number Price In Stock Add To Cart
2005C1, 2010C1, 2015C1, 2021C1 Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
QF25-HDKIT
P.O.R.
Contact KJLC for Availability
2033C1, 2063C1 Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring
QF40-HDKIT
P.O.R.
Contact KJLC for Availability
All C1 Series Pumps Hydro Oil, Semi-Synthetic, 1 Gal.
KJLSS19G1
$45.00
In Stock
All C1 Series Pumps Hydro Oil, Semi-Synthetic, 1 Quart
KJLSS19Q1
$17.00
In Stock
2005C1, 2010C1, 2015C1, 2021C1 KF25 Centering Ring
QF25-100-SRV
$8.55
In Stock
2005C1, 2010C1, 2015C1, 2021C1 KF25 Clamp
QF25-100-C
P.O.R.
In Stock
2033C1, 2063C1 KF40 Centering Ring
QF40-150-SRV
$13.10
In Stock
2033C1, 2063C1 KF40 Clamp
QF40-150-C
P.O.R.
In Stock
2005C1 Major Repair Kit
104976
P.O.R.
Contact KJLC for Availability
2005C1, 2010C1, 2015C1, 2021C1 Minor Repair Kit
104975
P.O.R.
Contact KJLC for Availability
2015C1 Major Repair Kit
104978
P.O.R.
Contact KJLC for Availability
2021C1 Major Repair Kit
104979
P.O.R.
Contact KJLC for Availability
2033C1 Major Repair Kit
054289
P.O.R.
In Stock
2063C1 Major Repair Kit
054489
P.O.R.
Contact KJLC for Availability
2033C1 Minor Repair Kit
054286
P.O.R.
Contact KJLC for Availability
2063C1 Minor Repair Kit
054488
P.O.R.
Contact KJLC for Availability
2010C1 Major Repair Kit
104977
P.O.R.
In Stock
2005C1, 2010C1, 2015C1, 2021C1 OME25 C/H
066849
P.O.R.
Contact KJLC for Availability
OME25 C/H OME25 C/H Element
066800
$32.00
In Stock
2033C1, 2063C1 OME40 C1
068785
P.O.R.
Contact KJLC for Availability
OME40 C1 OME40 C1 Element
068778
P.O.R.
Contact KJLC for Availability
All Pascal Series Pumps Power Cord 220V
14575
P.O.R.
Contact KJLC for Availability
All Pascal Serie Pumps Power Cord Europe
103566
P.O.R.
Contact KJLC for Availability
All Pascal Series Pumps Power Cord Japan
104559
P.O.R.
Contact KJLC for Availability
All Pascal Series Pumps Power Cord Swiss
A459212
P.O.R.
Contact KJLC for Availability
All Pascal Series Pumps Power Cord UK
104411
P.O.R.
Contact KJLC for Availability
