Representative Image
Edwards RV Series Edwards RV Series 1 Edwards RV Series 2 Edwards RV Series 3

Edwards RV Series

RV Series:

  • Feature dual pumping modes to optimize gas throughput or ultimate vacuum, corrosion-resistant polymer blades, printed gasket technology, a singledirection outer shaft seal, and an electronic start relay
  • Quiet operation levels (less than 48 dBA)

Dimensional Drawings


BOCEd RV3 BOCEd RV5 BOCEd RV8 BOCEd RV12

Charts


Videos

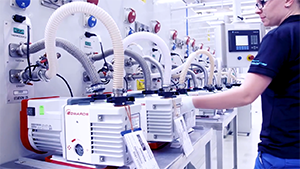

Edwards Presents Oil Sealed Rotary Vane Pumps

The RV series of rotary vane pumps are the result of more than 75 years’ experience and a clean sheet design programme to produce the ultimate range of small oil sealed rotary vane pumps.

Runtime: 02:42

Product Brochure
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Product Cross-Reference Inquiry
Click here to fill out our form and KJLC can cross-reference your vacuum product and suggest either a replacement or equivalent product.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications Table

Pump Model RV3 RV5 RV8 RV12
Pumping Speeds
50 (Hz)
1.94 CFM
55.0 L/min
0.91 L/s
3.30 m3/hr
60 (Hz)
2.30 CFM
65.0 - 65.1 L/min
1.08 L/s
3.90 m3/hr
50 (Hz)
3.00 CFM
85.0 L/min
1.41 L/s
5.10 m3/hr
60 (Hz)
3.65 CFM
103 L/min
1.72 L/s
6.20 m3/hr
50 (Hz)
5.00 CFM
141 L/min
2.35 - 2.36 L/s
8.50 m3/hr
60 (Hz)
5.90 CFM
166 - 167 L/min
2.77 - 2.78 L/s
10.0 m3/hr
50 (Hz)
7.06 CFM
199 L/min
3.32 L/s
12.0 m3/hr
60 (Hz)
8.35 CFM
236 L/min
3.92 L/s
14.2 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
220 g/hr 220 g/hr 220 g/hr 290 g/hr
Ultimate Pressure
Partial Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Total With Gas Ballast
1.20 x 10-1 hPA
1.20 x 10-1 mbar
12.0 Pa
9.00 x 10-2 Torr
Total Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Partial Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Total With Gas Ballast
1.00 x 10-1 hPA
1.00 x 10-1 mbar
10.0 Pa
7.50 x 10-2 Torr
Total Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Partial Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Total With Gas Ballast
6.00 x 10-2 hPA
6.00 x 10-2 mbar
6.00 Pa
4.50 x 10-2 Torr
Total Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.00 x 10-3 Torr
Partial Without Gas Ballast
3.00 x 10-3 hPA
3.00 x 10-3 mbar
3.00 x 10-1 Pa
2.25 x 10-3 Torr
Total With Gas Ballast
6.00 x 10-2 hPA
6.00 x 10-2 mbar
6.00 Pa
4.50 x 10-2 Torr
Total Without Gas Ballast
3.00 x 10-3 hPA
3.00 x 10-3 mbar
3.00 x 10-1 Pa
2.25 x 10-3 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 0.34 ( 0.25 ) 0.40 ( 0.30 ) 0.74 ( 0.55 ) 0.74 ( 0.55 )
Inlet Flange KF25
KF25
KF25
KF25
Exhaust Flange KF25
KF25
KF25
KF25
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Oil Capacity Quarts (Liters)
*Unless otherwise noted
0.71 ( 0.68 ) 0.71 ( 0.68 ) 0.80 ( 0.76 ) 1.11 ( 1.06 )
Noise db(A) 48.0 48.0 48.0 48.0
Compression Stages 2
2
2
2
Series Standard
Standard
Standard
Standard
Weight Lbs (kg) 47.3 ( 21.6 ) 43.0 ( 21.5 ) 57.0 ( 26.0 ) 58.0 ( 26.3 )
Dimensions in. (mm.) 16.9 x 6.22 x 8.70
(430 x 158 x 221 )
16.9 x 6.22 x 8.70
(430 x 158 x 221 )
18.5 x 6.22 x 8.70
(470 x 158 x 221 )
19.3 x 6.22 x 8.70
(490 x 158 x 221 )
Lubrication Type Wet
Wet
Wet
Wet
Technology Type Rotary Vane - Direct Drive
Rotary Vane - Direct Drive
Rotary Vane - Direct Drive
Rotary Vane - Direct Drive
X CLOSE

Notes:
  • ATEX versions available; please call or visit our website for more information.
  • Hydrocarbon prepared pumps will be shipped with one charge of oil.
  • Power cord is not included and will need to be purchased separately based on regional plug type.
  • PFPE prepared pumps will require purchase of PFPE oil separately.

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
RV3 KF25 230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,RTRY VANE,RV3,110-240V,50/60HZ,1PH,SET AT 230V A65201903 $3,779.49 Contact KJLC for Availability
RV3 KF25 115 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,ROTARY VANE, RV3, 110-240V, 50/60HZ, 1PH, SET AT 115V, MAINS POWER LEAD SOLD SEPARATELY A65201906 $3,835.80 Contact KJLC for Availability
RV3 KF25 115 VAC, 50/60 Hz, 1-Ø Hydrocarbon oil Download PDF KJLC Remanufactured REMANUFACTURED, PUMP,ROTARY VANE,RV3, 2.6CFM 115/230V, 50/60HZ,1PH,2.7CF SN# A65201906-R P.O.R. In Stock
RV3 KF25 115/230V Fomblin Download PDF KJLC Remanufactured PUMP,REMANUFACTURED, RV3,2.7CFM, *PFPE PREP* 110-240V,50/60HZ,1PH, WIRED for 115V SN# A65201906-RP P.O.R. In Stock
RV5 KF25 230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,RTRY VANE,RV5,110-240V,50/60HZ,1PH,SET AT 240V A65301903 $4,235.84 Contact KJLC for Availability
RV5 KF25 115 VAC, 50/60 Hz, 1-Ø Download PDF PUMP, ROTARY VANE, RV5, 110-240V, 50/60HZ, 1 PHASE, MAINS POWER CORD SOLD SEPARATELY A65301906 $4,236.00 In Stock
RV5 KF25 115 VAC, 50/60 Hz, 1-Ø Hydrocarbon oil Download PDF KJLC Remanufactured REMANUFACTURED, PUMP,ROTARY VANE,RV5(VLP120), 3.7CFM 115/240V, 50/60HZ,1PH A65301906-R P.O.R. In Stock
RV8 KF25 230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,RTRY VANE,RV8,110-240V,50/60HZ,1PH,SET AT 240V A65401903 $4,637.34 Contact KJLC for Availability
RV8 KF25 115 VAC, 50/60 Hz, 1-Ø Download PDF PUMP, ROTARY VANE, RV8, 110-240V, 50/60HZ, 1PH, SET AT 115V, MAINS POWER LEAD SOLD SEPARATELY A65401906 $4,637.34 Contact KJLC for Availability
RV12 KF25 230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP, ROTARY VANE, RV12, 110-240V, 50/60HZ, 1PH, SET AT 240V, MAINS POWER LEAD SOLD SEPARATELY A65501903 $5,336.35 Contact KJLC for Availability
RV12 KF25 115 VAC, 50/60 Hz, 1-Ø Download PDF PUMP, ROTARY VANE, RV12, 110-240V, 1PH, 50/60HZ A65501906 $5,336.35 In Stock
RV12 KF25 115 VAC, 50/60 Hz, 1-Ø Hydrocarbon oil Download PDF KJLC Remanufactured PUMP,REMANUFACTURED, RV12, 10CFM, 110-240V,50/60HZ,1PH, SET AT 115V SN# A65501906-R P.O.R. In Stock
CloseX
X CLOSE
Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart
Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart
Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring RV12, RV3, RV5, RV8
KF Hardware Kit
QF25-HDKIT
P.O.R.
Contact KJLC for Availability
KJLC 300 Convection Enhanced Pirani, KF16 RV3, RV5, RV8, RV12
Gauge
KJL300806
$795.00
Contact KJLC for Availability
Power Supply, KJLC 275i or 300, US Plug End RV3, RV5, RV8, RV12
Gauge Power Cable
KJLPS401A
$96.00
Contact KJLC for Availability
Edwards Major Repair Kit for RV Series Pumps RV3, RV5, RV8, RV12
Repair Kit
A65201131
$393.00
Contact KJLC for Availability
Edwards Replacement Vane Kit for RV3 Pumps RV3
Repair Kit
A65201130
$145.00
Contact KJLC for Availability
Replacement Blade (Vane) Kit RV5
A65301130
P.O.R.
Contact KJLC for Availability
Replacement Blade (Vane) Kit RV8
A65401130
P.O.R.
Contact KJLC for Availability
Replacement Blade (Vane) Kit RV12
A65501130
P.O.R.
Contact KJLC for Availability
Edwards EMF20 Oil Mist Eliminator RV12
Exhaust Accessory
A46229000
$482.00
Contact KJLC for Availability
Edwards EMF10 Oil Mist Eliminator RV3, RV5, RV8
Exhaust Accessory
A46226000
$404.52
Contact KJLC for Availability
KJLC™ Pressure Release Oil Mist Eliminator, KF25 Flange (8CFM) RV3, RV5, RV8, RV12
Exhaust Accessory
PFEGL915QF25
$173.00
In Stock
Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase, 2m length RV3, RV5, RV8, RV12
Mains Cable
A50507000
$56.59
In Stock
Mains Cable with flying leads for single phase pumps, 2m length RV3, RV5, RV8, RV12
Mains Cable
A50508000
$18.81
Contact KJLC for Availability
Mains Cable with CEE 7.7 Plug (Northern Europe) for single phase pumps, 2m length RV3, RV5, RV8, RV12
Mains Cable
A50506000
P.O.R.
Contact KJLC for Availability
Mains Cable with Type G (UK) Plug for single phase pumps, 2m length RV3, RV5, RV8, RV12
Mains Cable
A50505000
P.O.R.
Contact KJLC for Availability
KJLSS19 Hydrocarbon Oil (1 quart) RV3, RV5, RV8, RV12
Hydrocarbon Oil
KJLSS19Q1
$22.00
In Stock
KJLSS19 Hydrocarbon Oil (1 Gallon) RV3, RV5, RV8, RV12
Hydrocarbon Oil
KJLSS19G1
$57.00
In Stock
Fluorocarbon Centering Ring for KF25 RV3, RV5, RV8, RV12
Hardware
QF25-100-SRV
$11.25
In Stock
Clamp for KF25 RV3, RV5, RV8, RV12
Hardware
QF25-100-C
P.O.R.
In Stock
