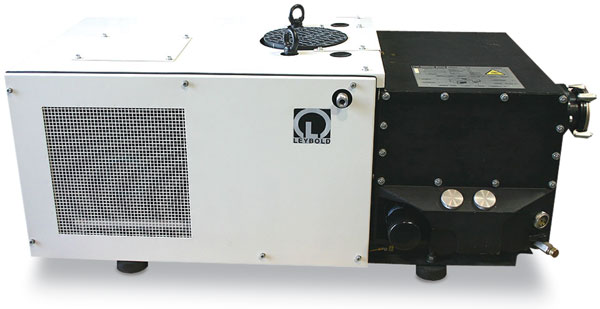

Leybold Coarse Vacuum (Sogevac® SV Series—Large) Leybold Coarse Vacuum (Sogevac® SV Series—Large) 1 SV630B SV100B SV100B SV200B SV300B SV300B SV300B

Leybold Coarse Vacuum (Sogevac® SV Series—Large)

Sogevac SV Series:

These compact and extremely easy-to-operate rotary coarse vane pumps are designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr (29.9 in. Hg).

Additional Components:

  • Integral demister in the oil casing filters oil aerosols and returns coalesced oil to the fluid sump
  • Relief valve prevents pressure buildup should the demisting filters become clogged
  • External spin-on filter removes particulates before the oil recirculates
  • Feature internal mounted fans for air-cooling
  • Larger sizes (SV630B and SV1200) include cooling radiators
  • Models SV100B through SV1200 have three-phase, NEMA T.E.F.C. 208/230/460 VAC, 60 Hz motors

Charts

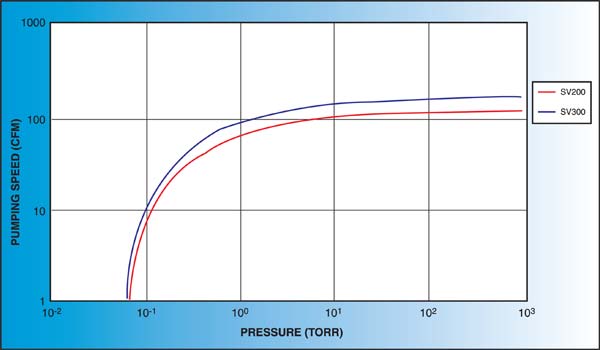

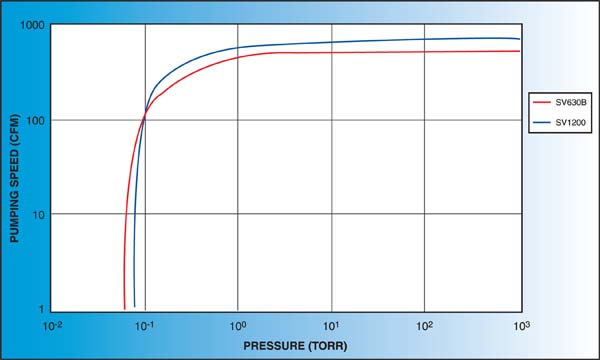

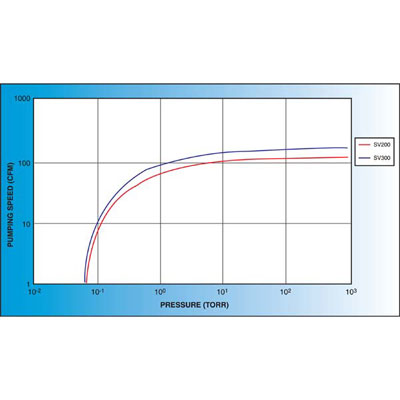

SV200-300 SV630B-1200
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications Table

Pump Model SV100B SV200 SV300B SV500B SV630B SV1200
Pumping Speeds
50 (Hz)
51.5 CFM
1457 L/min
24.2 L/s
87.5 m3/hr
60 (Hz)
61.8 CFM
1749 L/min
29.0 L/s
104 m3/hr
50 (Hz)
100 CFM
2832 L/min
47.0 L/s
170 m3/hr
60 (Hz)
117 CFM
3332 L/min
55.3 L/s
199 m3/hr
50 (Hz)
141 CFM
3999 L/min
66.4 L/s
240 m3/hr
60 (Hz)
170 CFM
4833 L/min
80.2 L/s
290 m3/hr
50 (Hz)
335 CFM
9497 L/min
157 L/s
570 m3/hr
60 (Hz)
336 CFM
9514 L/min
157 L/s
570 m3/hr
50 (Hz)
376 CFM
10664 L/min
177 L/s
640 m3/hr
60 (Hz)
444 CFM
12584 L/min
208 L/s
755 m3/hr
50 (Hz)
630 CFM
17835 L/min
296 L/s
1070 m3/hr
60 (Hz)
630 CFM
17839 L/min
296 L/s
1070 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
1600 g/hr 5700 g/hr 10000 g/hr 24000 g/hr
Ultimate Pressure
Partial Without Gas Ballast
5.00 x 10-1 hPA
5.00 x 10-1 mbar
5.00 x 101 Pa
3.75 x 10-1 Torr
Total With Gas Ballast
1.50 x 100 hPA
1.50 x 100 mbar
1.50 x 102 Pa
1.13 x 100 Torr
Total Without Gas Ballast
5.00 x 10-1 hPA
5.00 x 10-1 mbar
5.00 x 101 Pa
3.75 x 10-1 Torr
Partial Without Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Total With Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Partial Without Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Total With Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Partial Without Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
Total With Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
Total Without Gas Ballast
8.00 x 10-3 hPA
8.00 x 10-3 mbar
8.00 x 10-1 Pa
6.00 x 10-3 Torr
Partial Without Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Total With Gas Ballast
8.00 x 10-2 - 7.00 x 10-1 hPA
8.00 x 10-2 - 7.00 x 10-1 mbar
8.00 x 100 - 7.00 x 101 Pa
6.00 x 10-2 - 5.25 x 10-1 Torr
Partial Without Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Total With Gas Ballast
8.00 x 10-2 hPA
8.00 x 10-2 mbar
8.00 x 100 Pa
6.00 x 10-2 Torr
Total Without Gas Ballast
8.00 x 10-3 hPA
8.00 x 10-3 mbar
8.00 x 10-1 Pa
6.00 x 10-3 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 4.69 ( 3.50 ) 6.17 ( 4.60 ) 8.45 ( 6.30 ) 25.0 ( 18.6 ) 29.5 ( 22.0 )
Inlet Flange 1 1/4" Female NPT
2" Female NPT
2" Female NPT
4" ANSI
4" ANSI
6" ANSI
Exhaust Flange G1 1/4
NPT 2
NPT 2
ISO100
ISO160
Oil Type(s) Hydrocarbon Oil
Part: KJLSS70G1
Hydrocarbon Oil
Part: KJLSS70G1
Hydrocarbon Oil
Part: KJLSS70G5
Hydrocarbon Oil
Part: KJLSS70G5
Hydrocarbon Oil
Part: KJLSS70G5
Oil Capacity Quarts (Liters)
*Unless otherwise noted
2.10 ( 2.00 ) 7.35 ( 7.00 ) 10.5 ( 10.0 ) 0.00 23.0 ( 21.9 ) 63.0 ( 60.0 )
Noise db(A) 64.0 73.0 74.0 75.0 78.0
Compression Stages 1
1
1
1
1
1
Series Standard
Standard
Standard
Standard
Standard
Weight Lbs (kg) 180 ( 82.2 ) 352 ( 160 ) 440 ( 200 ) 1440 ( 654 ) 3021 ( 1373 )
Dimensions in. (mm.) 29.7 x 15.7 x 11.4
(755 x 400 x 290 )
37.0 x 21.1 x 16.3
(940 x 535 x 415 )
42.9 x 21.9 x 17.7
(1090 x 555 x 450 )
61.7 x 35.8 x 29.1
(1566 x 909 x 740 )
59.4 x 35.8 x 29.1
(1510 x 909 x 740 )
65.4 x 39.6 x 41.3
(1660 x 1005 x 1050 )
Lubrication Type Wet
Wet
Wet
Wet
Wet
Wet
Technology Type Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
X CLOSE

Note:
  • One charge of hydrocarbon oil will be provided with each pump.

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
Pump Model Inlet Flange Voltage & Phases Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
SV200 2" Female NPT 230/460 VAC, 50/60 Hz, 3-Ø Download PDF EUDF-SUPP PUMP,RTRY VANE,SV200,127CFM, 7-1/2HP,208-230/460V,60HZ,3PH 95027 $10,482.00 Call for Availability
SV1200 6" ANSI 230/460 VAC, 50/60 Hz, 3-Ø Download PDF KJLC Remanufactured PUMP, REMANUFACTURED, SV1200, 630CFM, DN125, DN160ISOK, 230/460V@60HZ, 3PH SN# 95070-R P.O.R. In Stock
SV100B 1 1/4" Female NPT 230/460 VAC, 50/60 Hz, 3-Ø Download PDF EUDF-SUPP PUMP,ROTARY VANE,SV100B,69CFM, 208-230/460V,3PH,60HZ,WITH OIL FILTER 960514 $6,173.00 Call for Availability
SV300B 2" Female NPT 230/460 VAC, 50/60 Hz, 3-Ø Download PDF PUMP,RTRY VANE,SV300B,198CFM, 10HP,208-230/460V,60HZ,3PH 960707 $13,777.00 Call for Availability
SV1200 6" ANSI 230/460 VAC, 50/60 Hz, 3-Ø Download PDF Leybold Sogevac SV1200 LH-95070 P.O.R. Call for Availability
SV500B 4" ANSI 230/460 VAC, 50/60 Hz, 3-Ø Leybold Sogevac SV500B LH-960855V P.O.R. Call for Availability
SV630B 4" ANSI 230/460 VAC, 50/60 Hz, 3-Ø Download PDF Leybold Sogevac SV630B LH-960865 P.O.R. Call for Availability
