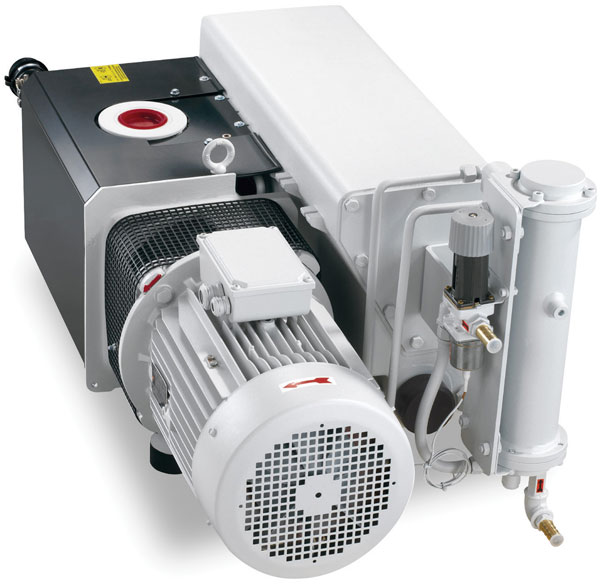

Representative Image

Leybold Coarse Vacuum (Sogevac^® SV Series—Small to Medium)

Sogevac SV Series

These compact and extremely easy-to-operate rotary coarse vane pumps are designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr (29.9 in. Hg).

Additional Components

Integral demister in the oil casing filters oil aerosols and returns coalesced oil to the fluid sump
Relief valve prevents pressure buildup should the demisting filters become clogged
External spin-on filter (featured on all models except SV16B and SV25B) removes particulates before the oil recirculates
Feature internal mounted fans for air-cooling
Models SV10B and SV25B have single-phase (115 VAC or 230 VAC) or three-phase (208/230/460 VAC) motors
Models SV40B and SV65B through SV1200 have three-phase, NEMA T.E.F.C. 208/230/460 VAC, 60 Hz motors

Applications

Food Packaging
Mettalurgy / Furnaces
Degassing / Drying
Vacuum Coating
Chucking

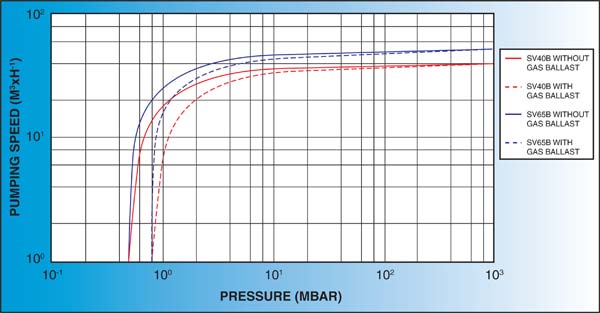

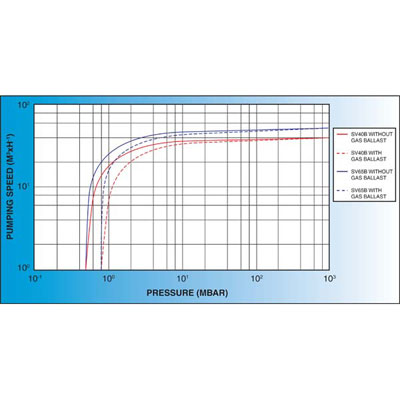

Charts

Specifications Table

Pump Model	SV10B	SV16B	SV25B	SV40B	SV65B
Pumping Speeds	50 (Hz) 5.59 CFM 158 L/min 2.63 L/s 9.50 m3/hr 60 (Hz) 6.80 CFM 192 L/min 3.20 L/s 11.5 m3/hr	50 (Hz) 8.83 CFM 249 L/min 4.15 L/s 15.0 m3/hr 60 (Hz) 10.0 CFM 283 L/min 4.70 L/s 17.0 m3/hr	50 (Hz) 13.2 CFM 374 L/min 6.22 L/s 22.5 m3/hr 60 (Hz) 14.7 CFM 417 L/min 6.92 L/s 25.0 m3/hr	50 (Hz) 22.7 CFM 641 L/min 10.7 L/s 38.5 m3/hr 60 (Hz) 27.7 CFM 783 L/min 13.1 L/s 47.0 m3/hr	50 (Hz) 31.8 CFM 899 L/min 14.9 L/s 54.0 m3/hr 60 (Hz) 37.7 CFM 1067 L/min 17.7 L/s 64.0 m3/hr
Max Water Vapor Pumping Rate (with gas ballast)	20.0 g/hr	30.0 g/hr	85.0 g/hr	760 g/hr	1000 g/hr
Ultimate Pressure	Partial Without Gas Ballast 1.50 hPA 1.50 mbar 150 Pa 1.10 Torr Total With Gas Ballast 2.00 hPA 2.00 mbar 200 Pa 1.50 Torr Total Without Gas Ballast 1.00 hPA 1.00 mbar 100 Pa 7.50 x 10^-1 Torr	Partial Without Gas Ballast 1.00 hPA 1.00 mbar 100 Pa 7.50 x 10^-1 Torr Total With Gas Ballast 2.50 hPA 2.50 mbar 250 Pa 1.88 Torr Total Without Gas Ballast 2.00 hPA 2.00 mbar 200 Pa 1.50 Torr	Partial Without Gas Ballast 5.00 x 10^-1 hPA 5.00 x 10^-1 mbar 50.0 Pa 3.75 x 10^-1 Torr Total With Gas Ballast 8.00 x 10^-1 hPA 8.00 x 10^-1 mbar 80.0 Pa 6.00 x 10^-1 Torr Total Without Gas Ballast 5.00 x 10^-1 hPA 5.00 x 10^-1 mbar 50.0 Pa 3.75 x 10^-1 Torr	Partial Without Gas Ballast 5.00 x 10^-1 hPA 5.00 x 10^-1 mbar 50.0 Pa 3.75 x 10^-1 Torr Total With Gas Ballast 1.50 hPA 1.50 mbar 150 Pa 1.13 Torr	Partial Without Gas Ballast 5.00 x 10^-1 hPA 5.00 x 10^-1 mbar 50.0 Pa 3.75 x 10^-1 Torr Total With Gas Ballast 1.50 hPA 1.50 mbar 150 Pa 1.13 Torr Total Without Gas Ballast 5.00 x 10^-1 hPA 5.00 x 10^-1 mbar 50.0 Pa 3.75 x 10^-1 Torr
Cooling Method(s)	Method Convection	Method Convection	Method Convection	Method Convection	Method Convection
Motor Power HP (kW)	1.01 ( 0.75 )	1.01 ( 0.75 )	1.48 ( 1.10 )	2.95 ( 2.20 )	2.41 ( 1.80 )
Inlet Flange	G3/4 and G1/2	G3/4 and G1/2	3/4" Female NPT	1 1/4" Female NPT	1 1/4" Female NPT
Exhaust Flange	0		0	KF40	G1 1/4
Oil Type(s)	Hydrocarbon Oil Part: KJLSS70Q1	Hydrocarbon Oil Part: KJLSS70Q1	Hydrocarbon Oil Part: KJLSS70Q1	Hydrocarbon Oil Part: KJLSS70Q1	Hydrocarbon Oil Part: KJLSS70Q1
Oil Capacity Quarts (Liters) *Unless otherwise noted	0.53 ( 0.50 )	0.53 ( 0.50 )	0.53 ( 0.50 )	2.52 ( 2.40 )	2.10 ( 2.00 )
Noise db(A)	67.0	67.0	67.0	59.0	64.0
Compression Stages	1	1	1	1	1
Series	Standard	Standard	Standard	Standard	Standard
Weight Lbs (kg)	41.6 ( 18.9 )	45.3 ( 20.6 )	60.0 ( 27.3 )	160 ( 73.0 )	114 ( 52.2 )
Dimensions in. (mm.)	12.4 x 11.0 x 8.50 (315 x 279 x 215 )	12.4 x 7.83 x 11.1 (315 x 199 x 281 )	14.0 x 10.8 x 9.69 (356 x 275 x 246 )	29.9 x 10.4 x 14.0 (760 x 264 x 355 )	18.9 x 12.6 x 10.4 (480 x 320 x 264 )
Lubrication Type	Wet	Wet	Wet	Wet	Wet
Technology Type	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive
