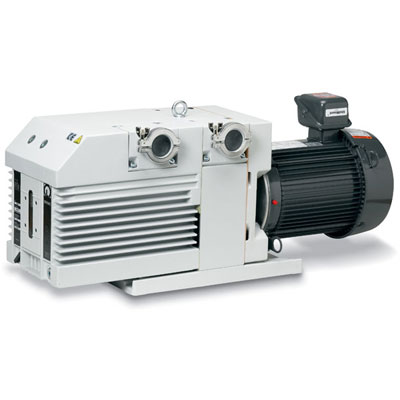

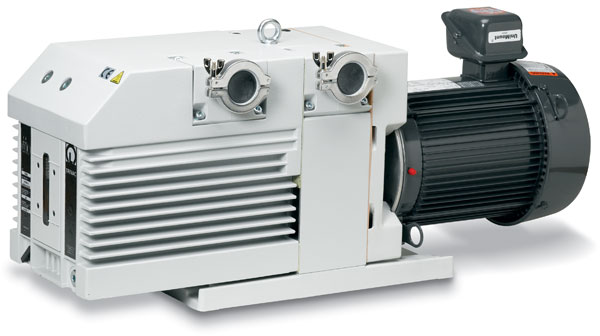

Representative Image
D16B D25B D40B D4B D65B D8B

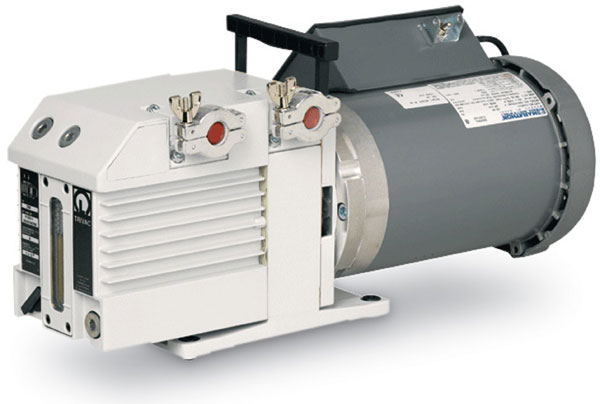

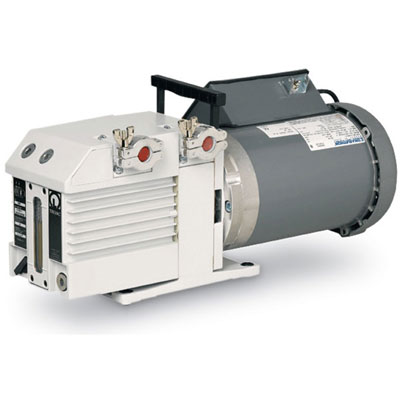

Leybold HV Standard – Trivac® B Series

Features:

  • Direct-drive
  • Small footprint, end-mounted sight glass, end-mounted controls, and inlet/outlet ports that can be positioned either vertically or horizontally

About Its Design:

  • Incorporates forced-feed oil lubrication and all solvent-resistant seals and gaskets
  • Oil-casing, coupling housing, inlet, and exhaust ports are made of aluminum (not made of corrosion-prone nonferrous heavy metals)
  • Running these pumps continuously in rough vacuum requires a Mist Eliminator with oil return.

Applications:

  • Chemistry / Pharmaceutical
  • Vacuum Coating
  • Lamps / Tubes Mfg.
  • Freeze Drying
  • Cooling and Air Conditioning
  • Vacuum Degasing
  • Metallurgy / Furnaces
  • Leak Detection
  • Backing Pump for High Vacuum Pump

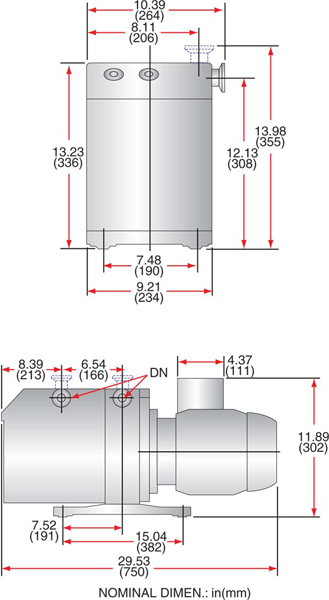

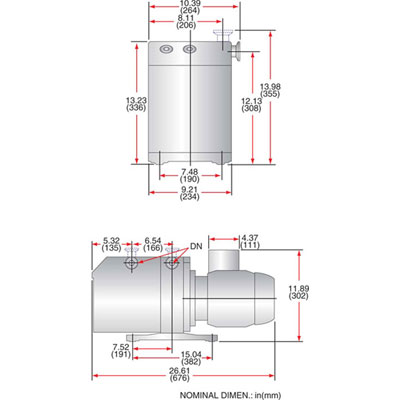

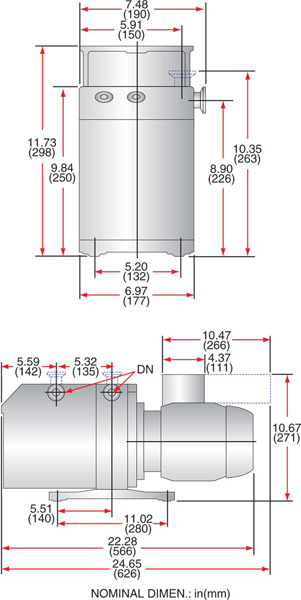

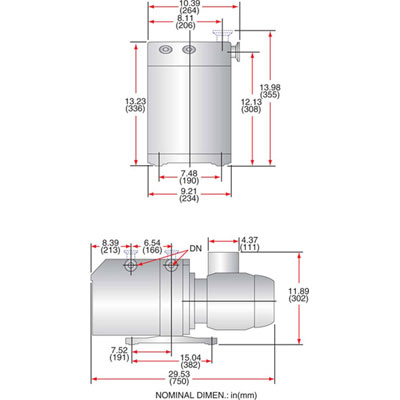

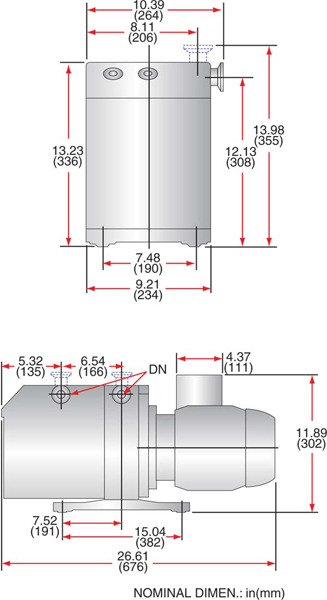

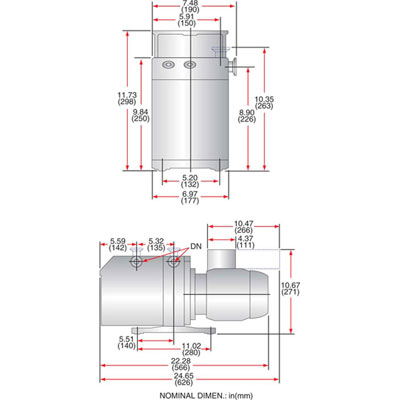

Dimensional Drawings


Leybold D4B Leybold D8B Leybold D16B Leybold D16BCS Leybold D25B Leybold D40B Leybold D65B

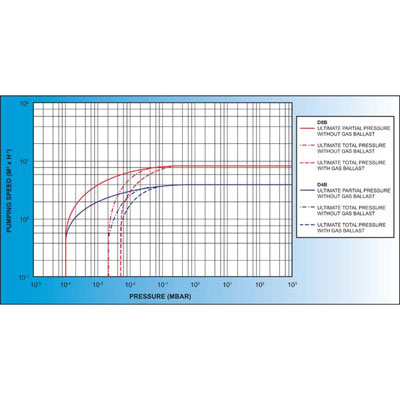

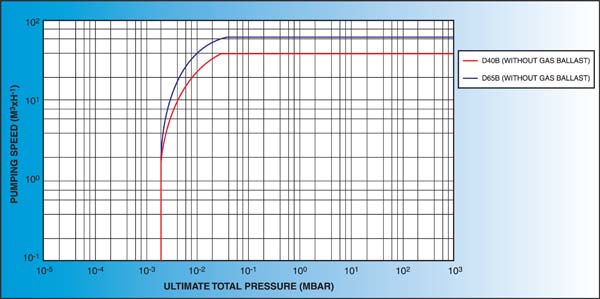

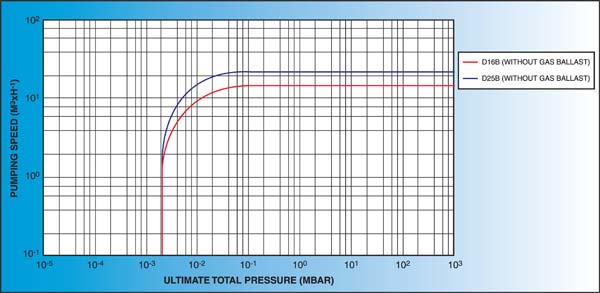

Charts

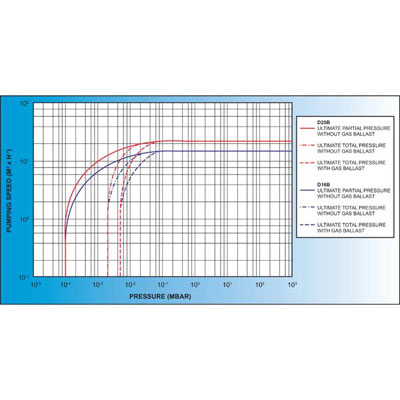

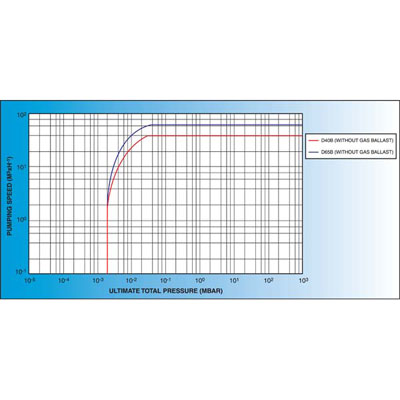

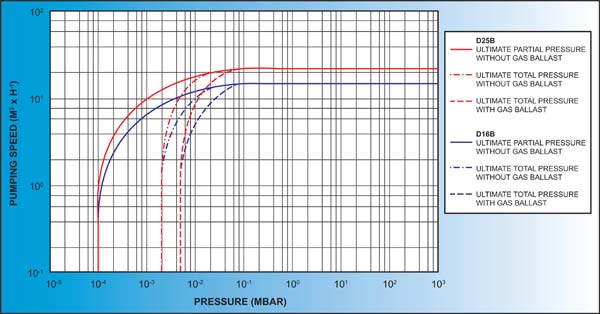

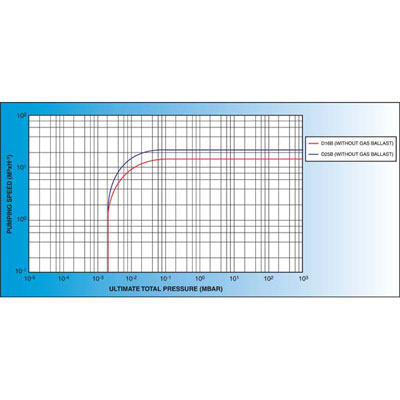

Leybold D25B Leybold D40B-D65B Leybold D4B-D8B Leybold D16B-D25B

Videos

TRIVAC B Function Principles

This movie shows the function principles of the Leybold oil-sealed rotary vane vacuum pumps TRIVAC B.

Runtime: 04:14

Product Brochure
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications Table

Pump Model D4B D8B D16B D25B D40B D65B
Pumping Speeds
50 (Hz)
2.47 CFM
70.0 L/min
1.16 L/s
4.20 m3/hr
60 (Hz)
2.80 CFM
79.3 L/min
1.32 L/s
4.76 m3/hr
50 (Hz)
5.00 CFM
141 L/min
2.35 L/s
8.50 m3/hr
60 (Hz)
5.00 CFM
141 L/min
2.35 L/s
8.49 m3/hr
50 (Hz)
9.71 CFM
274 L/min
4.56 L/s
16.5 m3/hr
60 (Hz)
11.7 CFM
331 L/min
5.50 L/s
19.9 m3/hr
50 (Hz)
15.1 CFM
428 L/min
7.10 L/s
25.7 m3/hr
60 (Hz)
18.1 CFM
513 L/min
8.60 L/s
30.8 m3/hr
50 (Hz)
23.5 CFM
666 L/min
11.1 L/s
40.0 m3/hr
60 (Hz)
28.3 CFM
800 L/min
13.3 L/s
48.0 m3/hr
He: 999 amu
50 (Hz)
38.3 CFM
1083 L/min
18.0 L/s
65.0 m3/hr
60 (Hz)
38.3 CFM
1083 L/min
18.0 L/s
65.0 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
93.0 g/hr 147 - 157 g/hr 305 g/hr 476 g/hr 1184 g/hr 1925 g/hr
Ultimate Pressure
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.70 x 10-3 Torr
Total Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.50 x 10-3 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.70 x 10-3 Torr
Total Without Gas Ballast
2.00 x 10-3 hPA
2.00 x 10-3 mbar
2.00 x 10-1 Pa
1.50 x 10-3 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
1.00 x 10-5 hPA
1.00 x 10-5 mbar
1.00 x 10-3 Pa
7.50 x 10-5 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-2 - 5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
1.00 x 10-5 hPA
1.00 x 10-5 mbar
1.00 x 10-3 Pa
7.50 x 10-5 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
8.00 x 10-4 hPA
8.00 x 10-4 mbar
8.00 x 10-2 Pa
6.00 x 10-4 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
8.00 x 10-4 hPA
8.00 x 10-4 mbar
8.00 x 10-2 Pa
6.00 x 10-4 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 0.67 ( 0.50 ) 0.89 ( 0.66 ) 1.01 ( 0.75 ) 1.01 ( 0.75 ) 2.95 ( 2.20 ) 2.95 ( 2.20 )
Inlet Flange KF16
KF16
KF25
KF25
KF40
KF40
Exhaust Flange KF16
KF16
KF25
KF25
KF40
KF40
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19Q1
Hydrocarbon Oil
Part: KJLSS19G1
Hydrocarbon Oil
Part: KJLSS19G1
Oil Capacity Quarts (Liters)
*Unless otherwise noted
0.63 ( 0.60 ) 0.63 ( 0.60 ) 0.79 ( 0.75 ) 1.16 ( 1.10 ) 2.52 ( 2.40 ) 2.73 ( 2.60 )
Noise db(A) 52.0 52.0 56.0 56.0 59.0 59.0
Compression Stages 2
2
2
2
2
2
Series Standard
Standard
Standard
Standard
Standard
Standard
Weight Lbs (kg) 41.2 ( 18.7 ) 50.6 ( 23.0 ) 81.4 ( 37.0 ) 79.2 ( 36.0 ) 160 ( 73.0 ) 180 ( 82.0 )
Dimensions in. (mm.) 19.1 x 6.38 x 9.06
(485 x 162 x 230 )
21.9 x 6.38 x 9.06
(555 x 162 x 230 )
22.0 x 7.48 x 10.4
(560 x 190 x 263 )
26.0 x 7.48 x 10.4
(660 x 190 x 263 )
29.9 x 10.4 x 14.0
(760 x 264 x 355 )
33.1 x 10.4 x 14.0
(840 x 264 x 355 )
Lubrication Type Wet
Wet
Wet
Wet
Wet
Wet
Technology Type Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
X CLOSE

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart Accessories
D4B KF16 200–230/380–460 VAC 50/60 Hz, 3-Ø Download PDF PUMP, ROATRY VANE, D4B, 3PH, 220-240/380-420V, 50HZ, 240-265/415-480V, 6HZ 11246 $2,675.00 Contact KJLC for Availability
D16B KF25 200-230/380-460 VAC 50/60HZ, 3- Ø Download PDF PUMP,TRIVAC D16B,RTRY VNE,13.4CFM 1HP,230/460V,50/60HZ,3PH 11266 $5,194.00 Contact KJLC for Availability
D25B KF25 200–230/380–460 VAC, 50/60 Hz, 3-Ø Download PDF PUMP,TRIVAC B,RTRY VANE,20CFM, 1-1/2HP,230/460V,3PH,D25B REPLACEMNT FOR LH-91276-2 11276 $7,097.00 Contact KJLC for Availability
D40B KF40 200–230/380–460 VAC, 50/60 Hz, 3-Ø Download PDF PUMP,TRIVAC B,RTRY VNE,32.5CFM 3HP,230/460V,50/60HZ,3PH,D40B 11286 P.O.R. In Stock
D40B KF40 200–230/380–460 VAC, 50/60 Hz, 3-Ø Hydrocarbon oil Download PDF KJLC Remanufactured PUMP,REMANUFACTURED, TRIVAC D40B, 32.5CFM, 3HP,230/460V,50/60HZ SN# 11286-R P.O.R. In Stock
D65B KF40 200–230/380–460 VAC, 50/60 Hz, 3-Ø Download PDF PUMP,ROTARY VANE,D65B,53CFM, 3PH EURO MOTOR,3PH,230/400V 50HZ,250/400V 60HZ 11296 P.O.R. Contact KJLC for Availability
D4B KF16 110-115/210-230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,TRIVAC,D4B,ROT VANE,3.4CFM,95-120V/200-240V,50/60HZ,1PH, MAINS POWER CORD SOLD SEPARATELY 140081 P.O.R. In Stock
D8B KF16 110-115/210-230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,TRIVAC,D8B,ROT VANE,6.9CFM,95-120V/200-240V,50/60HZ,1PH,MAINS POWER CORD SOLD SEPARATELY 140082 P.O.R. Contact KJLC for Availability
D8B KF16 110-115/210-230 VAC, 50/60 Hz, 1-Ø KJLC Remanufactured PUMP,REMANUFACTURED, TRIVAC D8B,6.9CFM, 220V ONLY,3/4 HP,50/60HZ,1PH (Fisher Maxima C) 91255-1R P.O.R. In Stock
D8B KF16 200-230/380-460 VAC, 50/60HZ, 3- Ø Download PDF PUMP,TRIVAC B,6.9CFM,1HP,230/ 460V,3PH,D8B,INLET QF16 91256-2 $3,100.00 Contact KJLC for Availability
D16B KF25 110-115 VAC 50/60 Hz, 1- Ø Download PDF PUMP,TRIVAC B,RTRY VNE,13.4CFM 1 HP,115V,50/60HZ,1PH,D16B, INCLUDES MAINS CORD WITH NEMA PLUG 91265-1 $5,541.00 In Stock
D16B KF25 200-230 VAC 50/60HZ, 1- Ø Download PDF PUMP,TRIVAC B,RTRY VNE,13.4CFM 1HP,230V,50/60HZ,1PH,D16B, INCLUDES MAINS CORD WITH NEMA PLUG 91265-2 P.O.R. Contact KJLC for Availability
D25B KF25 200–230 VAC, 50/60 Hz, 1-Ø Download PDF PUMP,TRIVAC B,RTRY VANE,20CFM, 1-1/2HP,230V,50/60HZ,1PH,D25B, INCLUDES MAINS CORD WITH NEMA PLUG 91275-2 $5,790.70 Contact KJLC for Availability
CloseX
X CLOSE
Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart
For Pump Model(s) Description Part Number Price In Stock Add To Cart
D4B, D8B 115V Nema Plug (100-120V)
20081090
$93.00
In Stock
D4B, D8B 230V Euro Plug
20081091
P.O.R.
In Stock
D4B, D8B 230V Nema Plug (200-240V)
20081141
$65.80
Contact KJLC for Availability
D4B, D8B 230V UK Plug
20081097
P.O.R.
Contact KJLC for Availability
D40B, D65B Auto-Soft Flow Actuated Check Valve (KF40)
225-0040
P.O.R.
Contact KJLC for Availability
D4B, D8B Clamp for KF16 Flange
QF16-075-C
P.O.R.
In Stock
D16B, D25B Clamp for KF25 Flange
QF25-100-C
P.O.R.
In Stock
D40B, D65B Clamp for KF40 Flange
QF40-150-C
P.O.R.
In Stock
D4B, D8B Clamping Kit, For QF16 Flange, Including Aluminum Clamp and FKM Centering Ring
QF16-HDKIT
P.O.R.
Contact KJLC for Availability
D16B, D25B Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
QF25-HDKIT
P.O.R.
Contact KJLC for Availability
D40B, D65B Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring
QF40-HDKIT
P.O.R.
Contact KJLC for Availability
D4B, D8B Fluorocarbon Centering Ring for KF16 Flange
QF16-075-SRV
$6.75
In Stock
D4B, D8B, D16, D25B Fluorocarbon Centering Ring for KF25 Flange
QF25-100-SRV
$8.55
In Stock
D40B, D65B Fluorocarbon Centering Ring for KF40 Flange
QF40-150-SRV
$13.10
In Stock
All Trivac® B Series Pumps KJLSS70 Hydrocarbon Oil (1 Gallon)
KJLSS70G1
$45.00
In Stock
All Trivac® B Series Pumps KJLSS70 Hydrocarbon Oil (1 Quart)
KJLSS70Q1
$17.00
In Stock
All Trivac® B Series Pumps KJLSS70 Hydrocarbon Oil (5 Gallon Pail)
KJLSS70G5
$160.00
In Stock
All Trivac® B Series Pumps KJLSS70 Hydrocarbon Oil (55 Gallon Drum)
KJLSS70G55
$1,400.00
Contact KJLC for Availability
D16B Major Repair Kit
EK110002618
$290.00
Contact KJLC for Availability
D25B Major Repair Kit
EK110002616
P.O.R.
Contact KJLC for Availability
D40B Major Repair Kit
EK110002613
P.O.R.
Contact KJLC for Availability
D4B Major Repair Kit
LH-EK110002622
P.O.R.
Contact KJLC for Availability
D65B Major Repair Kit
EK110002612
$695.00
Contact KJLC for Availability
D8B Major Repair Kit
EK110002620
$389.00
Contact KJLC for Availability
D16B, D25B Minor Repair Kit
19721
P.O.R.
Contact KJLC for Availability
D40B, D65B Minor Repair Kit
19722
$342.00
Contact KJLC for Availability
D4B, D8B Minor Repair Kit
19720
P.O.R.
Contact KJLC for Availability
D16B, D25B Oil Mist Eliminator
18911
$846.00
Contact KJLC for Availability
D40B, D65B Oil Mist Eliminator
18916
$1,191.00
Contact KJLC for Availability
D4B, D8B Oil Mist Eliminator
18906
$699.00
Contact KJLC for Availability
CloseX
