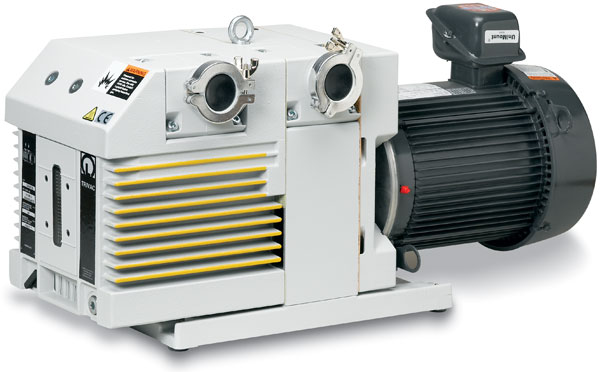

Leybold HV Chemical–Trivac® BCS Series

Internal components constructed of gray cast iron, surface-treated aluminum, steel, and stainless steel to protect from corrosion.

Features:

  • Pumping of corrosive or aggressive media

Optional Accessories:

  • Chemical filter with safety isolation valve
  • Exhaust filter with lubricant return
  • Inert gas system
  • Limit switch system
  • Electrical indicator system

Applications

  • Semiconductor Production
  • Pharmaceutical / Chemistry
  • Pumping Corrosive or Reactive Agents
  • Research and Development
  • Backing pump for High Vacuum pump

Dimensional Drawings

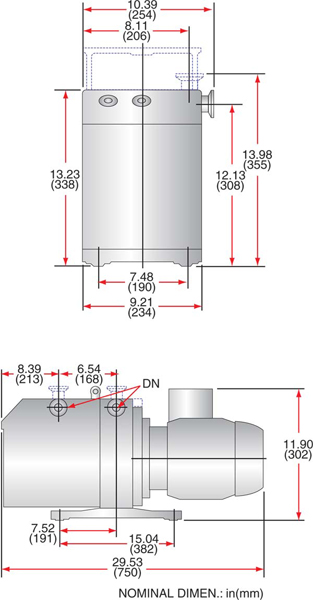

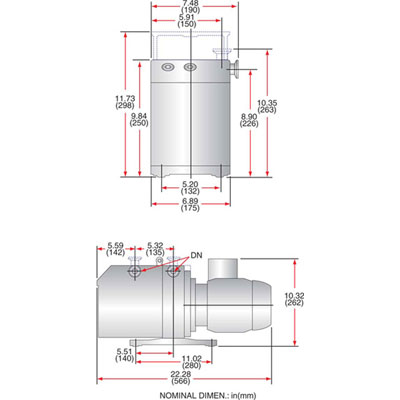

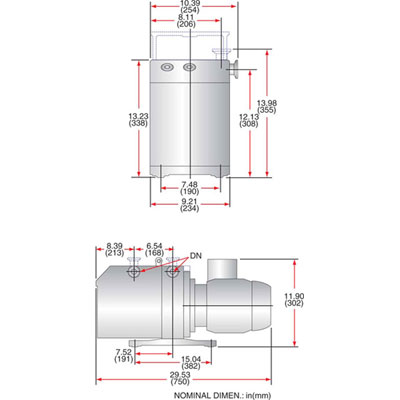

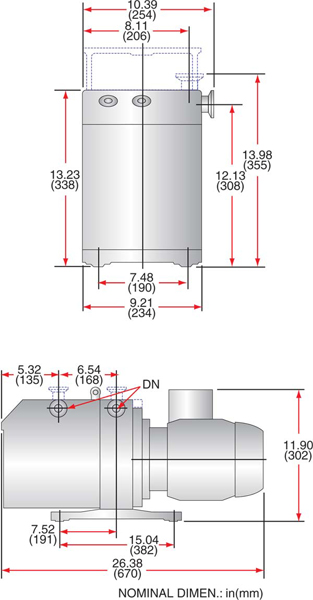

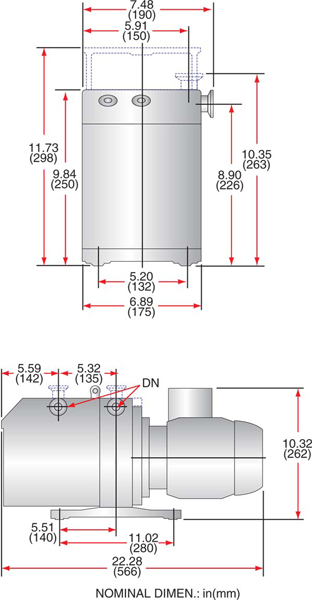

Leybold D25BCS Leybold D40BCS Leybold D65BCS

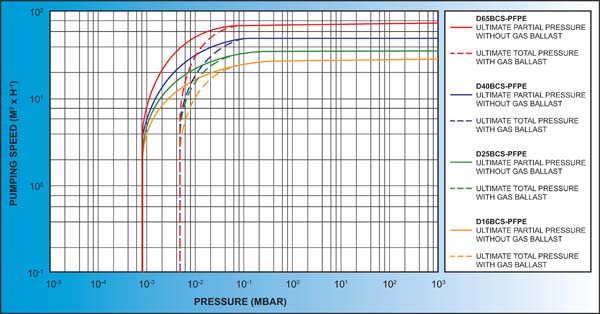

Charts


Specifications Table

Pump Model D16BCS D25BCS D40BCS D65BCS
Pumping Speeds
50 (Hz)
9.71 CFM
274 L/min
4.56 L/s
16.5 m3/hr
60 (Hz)
11.7 CFM
331 L/min
5.50 L/s
19.9 m3/hr
50 (Hz)
15.1 CFM
428 L/min
7.11 L/s
25.7 m3/hr
60 (Hz)
18.1 CFM
513 L/min
8.52 L/s
30.8 m3/hr
50 (Hz)
23.5 CFM
666 L/min
11.1 L/s
40.0 m3/hr
60 (Hz)
28.3 CFM
800 L/min
13.3 L/s
48.0 m3/hr
50 (Hz)
38.0 CFM
1075 L/min
17.9 L/s
65.0 m3/hr
60 (Hz)
46.0 CFM
1302 L/min
21.6 L/s
78.0 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
305 g/hr 1184 g/hr 1925 g/hr
Ultimate Pressure
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
1.00 x 10-5 hPA
1.00 x 10-5 mbar
1.00 x 10-3 Pa
7.50 x 10-5 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
1.00 x 10-5 hPA
1.00 x 10-5 mbar
1.00 x 10-3 Pa
7.50 x 10-5 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
8.00 x 10-4 hPA
8.00 x 10-4 mbar
8.00 x 10-2 Pa
6.00 x 10-4 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Total Without Gas Ballast
8.00 x 10-4 hPA
8.00 x 10-4 mbar
8.00 x 10-2 Pa
6.00 x 10-4 Torr
Cooling Method(s) Method
Convection
Method
Convection
Method
Convection
Method
Convection
Motor Power HP (kW) 1.01 ( 0.75 ) 1.01 ( 0.75 ) 2.95 ( 2.20 ) 2.95 ( 2.20 )
Inlet Flange KF25
KF25
KF40
KF40
Exhaust Flange KF25
KF25
KF40
KF40
Oil Type(s)
Part: MFY14/6CA

Part: MFY14/6CA

Part: MFY14/6CA

Part: MFY14/6CA
Oil Capacity Quarts (Liters)
*Unless otherwise noted
0.79 ( 0.75 ) 1.58 ( 1.50 ) 2.21 ( 2.10 ) 2.73 ( 2.60 )
Noise db(A) 56.0 56.0 59.0 59.0
Compression Stages 2
2
2
2
Series Chemistry
Chemistry
Chemistry
Chemistry
Weight Lbs (kg) 57.3 ( 26.0 ) 70.6 ( 32.0 ) 150 ( 68.0 ) 177 ( 80.0 )
Dimensions in. (mm.) 22.0 x 7.48 x 10.4
(560 x 190 x 263 )
26.0 x 7.48 x 10.4
(660 x 190 x 263 )
29.9 x 10.4 x 14.0
(760 x 264 x 355 )
33.1 x 10.4 x 14.0
(840 x 264 x 355 )
Lubrication Type Wet
Wet
Wet
Wet
Technology Type Rotary Vane
Rotary Vane
Rotary Vane
Rotary Vane
X CLOSE
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Note:
  • Fomblin is not included and will need to be purchased separately.

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart
Pump Model Inlet Flange Voltage & Phases Oil Prep Manual Reman KJLC Remanufactured Description Part Number Price In Stock Add To Cart
D16BCS KF25 208–230/460 VAC 50/60 Hz, 3-Ø PFPE Download PDF PUMP,RTRY VANE,EXT CORR,D16BCS 13.4CFM,208-460V,50/60HZ,3PH 11369 $6,933.70 Call for Availability
D25BCS KF25 208–230/460 VAC, 50/60 Hz, 3-Ø Hydrocarbon Download PDF PUMP,ROT VANE, D25BCS, 20.9 CFM,CORROSIVE SERIES, 2 STG,3PH W/ HYDROCARBON OIL 11378 P.O.R. Call for Availability
D25BCS KF25 208–230/460 VAC, 50/60 Hz, 3-Ø Hydrocarbon KJLC Remanufactured PUMP,REMANUFACTURED, D25BCS, 20.9CFM,CORR, 208-460V,50/60HZ,3PH SN# 11378-3R P.O.R. In Stock
D25BCS KF25 208–230/460 VAC, 50/60 Hz, 3-Ø PFPE Download PDF PUMP, RTRY VANE, CORR, D25BCS 1-1/2HP, 200/220VAC/50HZ, 3PH 11379 $8,383.90 In Stock
D40BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø Hydrocarbon Download PDF PUMP,ROT VANE,D40BCS,32.5 CFM,CORROSIVE SERIES,3HP,2 STG,3PH,50/60 HZ, W/HYDROCARBON OIL 11388 $12,168.00 Call for Availability
D40BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø PFPE Download PDF PUMP,ROT VANE, CORR, D40BCS, 32.5 CFM,,208-230/460V, 3PH 11389 $11,264.00 Call for Availability
D40BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø PFPE KJLC Remanufactured PUMP,REMANUFACTURED, D40BCS, 32.5 CFM, CORROSIVE SERIES,PFPE PREP, 3PH, 50/60HZ 11389-R P.O.R. In Stock
D65BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø Hydrocarbon Download PDF PUMP,ROT VANE,D65BCS,53CFM,CORROSIVE SERIES,240-277/414-480V, 60HZ 11398 $14,530.20 Call for Availability
D65BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø PFPE Download PDF PUMP,ROTARY VANE,D65BCS,53CFM, PFPE PREPARED,208-230/460V,60 11399 $15,622.00 Call for Availability
D65BCS KF40 208–230/460 VAC, 50/60 Hz, 3-Ø PFPE Download PDF KJLC Remanufactured PUMP,REMANUFACTURED, ROTARY VANE,D65B, 53CFM, (PFPE PREP), NO FILTER MODULES, 208-230/460V,50/60Hz REQUEST PROPER VOLTAGE *12 MONTH WARRANTY *EXCLUDES MOTORS SN# 11399-R P.O.R. In Stock
D16BCS KF25 115/230 VAC 50/60 Hz, 1-Ø Hydrocarbon Download PDF PUMP,RTRY VANE,CORR,D16BCS,13. 4CFM,115/200-230V,50/60HZ,1PH 91368-1 $6,200.00 Call for Availability
D16BCS KF25 115/230 VAC 50/60 Hz, 1-Ø PFPE Download PDF PUMP,RTRY VANE,EXT CORR ,D16BCS 13.4CFM,115-230V,50/60HZ,1PH 91369-1 P.O.R. Call for Availability
D16BCS KF25 208–230/460 VAC 50/60 Hz, 3-Ø Fomblin Download PDF KJLC Remanufactured PUMP,REMANUFACTURED, CORR, PFPE PREP, D16BCS, 13.4CFM,208-460V,50/60HZ,3PH WIRED 220V SN# 91369-2R P.O.R. In Stock
D25BCS KF25 208–230 VAC, 50/60 Hz, 1-Ø PFPE Download PDF PUMP, RTRY VANE,CORR, D25BCS, 1-1/2HP,208/230AC,50/60HZ,1PH 91379-2 P.O.R. Call for Availability
