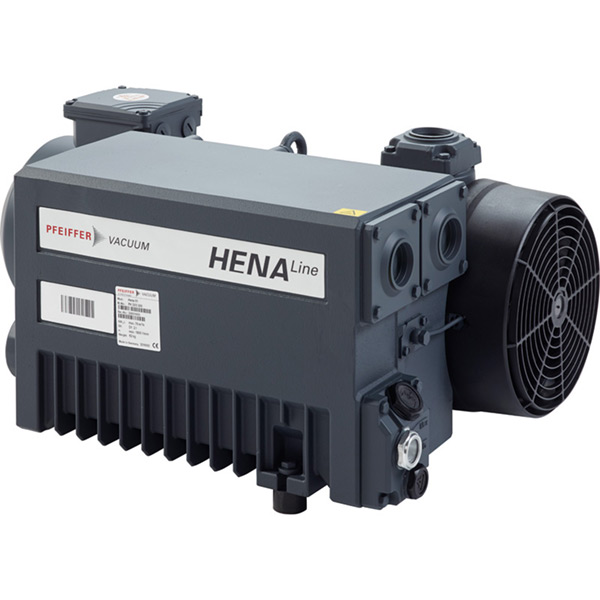

Representative Image

Pfeiffer HenaLine™

The HenaLine Innovations:

  • Single-stage oil-sealed rotary vane pump
  • Oil mist separator, oil return and safety valves are integrated as standard equipment.

Specifications Table

Pump Model Hena 100 Hena 630 Hena 200 Hena 1000 Hena 300 Hena 25 Hena 60 Hena 400
Motor Power HP (kW) 4 (2.5) 24.8 (15) 7.4 (5.5) 40.2 (22) 10 (7.5) 2.68 (1.1) 2.95 (1.8) 20.1 (11)
Inlet Flange KF40
ISO100-K
ISO100-K
ISO160-K
ISO100-K
KF40
KF40
ISO100-K
Exhaust Flange KF40
ISO100-K
ISO100-K
ISO100-K
ISO100-K
KF40
KF40
ISO100-K
Oil Type(s) KJLSS19
KJLSS19
KJLSS19
KJLSS19
KJLSS19
KJLSS19
KJLSS19
KJLSS19
Oil Capacity Quarts (Liters)
*Unless otherwise noted
2.11 (2) 15.85 (15) 6.9 (6.5) 31.7 (30) 6.9 (6.5) 1.06 (1) 2.11 (2) 12.68 (12)
Noise db(A) 68.0 79.0 74.0 82.0 76.0 63.0 66.0 79.0
Series Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Standard Series
Hydrocarbon Oil
Technology Wet
Wet
Wet
Wet
Wet
Wet
Wet
Wet


Product Brochure
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we get asked.
Contact Us
To speak with someone directly, please call +1 412 387 9200 or email international@lesker.com.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

Accessories Pump
Model
Inlet
Flange
Voltage &
Phases
Manual Part
Number
Price Add To Cart
Accessories Pump
Model
Inlet
Flange
Voltage &
Phases
Manual Part
Number
Price Add To Cart
Hena 100
KF40
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02350
P.O.R.
Hena 1000
ISO160-K
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02700
P.O.R.
Hena 200
ISO100-K
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02400
P.O.R.
Hena 25
KF40
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02200
P.O.R.
Hena 25
KF40
100–120VAC, 1Ph, 60 Hz
Download PDF
PKD02207
P.O.R.
Hena 25
KF40
220–240VAC, 1Ph, 50 Hz
Download PDF
PKD02212
P.O.R.
Hena 25
KF40
220–240VAC, 1Ph, 60 Hz
Download PDF
PKD02222
P.O.R.
Hena 300
ISO100-K
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02450
P.O.R.
Hena 400
ISO100-K
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02500
P.O.R.
Hena 60
KF40
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02300
P.O.R.
Hena 630
ISO100-K
190–210/380–420VAC, 3Ph, 50/60 Hz
Download PDF
PKD02600
P.O.R.

Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please e-mail international@lesker.com.

Accessories Table

For Pump Model(s) Description PartNo Price Add
To Cart
For Pump Model(s) Description PartNo Price Add
To Cart
Hena 200, Hena 300, Hena 400, Hena 630
Clamping Kit, For QF100 (ISO100-K) Flange, Including (8) Cold Steel (Zinc Plated) Clamp and FKM Centering Ring
QF100K-HDKIT
P.O.R.
Hena 1000
Clamping Kit, For QF160 (ISO160-K) Flange, Including (8) Cold Steel (Zinc Plated) Clamp and FKM Centering Ring
QF160K-HDKIT
P.O.R.
Hena 100, Hena 25, Hena 60
Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring
QF40-HDKIT
P.O.R.
All Pfeiffer HenaLine™ Pumps
KJLSS19 Hydrocarbon Oil (1 Gallon)
KJLSS19G1
$45.00
All Pfeiffer HenaLine™ Pumps
KJLSS19 Hydrocarbon Oil (1 Quart)
KJLSS19Q1
$17.00
All Pfeiffer HenaLine™ Pumps
KJLSS19 Hydrocarbon Oil (5 Gallon Pail)
KJLSS19G5
$160.00
All Pfeiffer HenaLine™ Pumps
KJLSS19 Hydrocarbon Oil (55 Gallon Drum)
KJLSS19G55
$1,400.00
