ULVAC^® GLD Series Rotary Vane Vacuum Pumps

Features

Combine high performance, low vibration, and low noise
Gas ballasting for solvent vapor removal
Forced oil supply offers optimum lubrication during pumpdown
Anti-suckback device protects the chamber during power failure

Applications

Chemical, analyzer and laser systems
Vacuum pumping system
Backing pump for SEM
Semiconductor, sputtering, and vacuum evaporation equipment
Vacuum and freeze drying

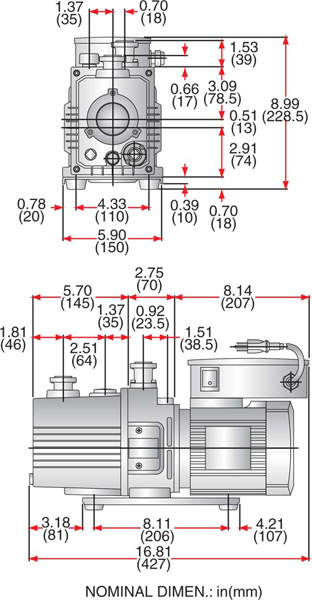

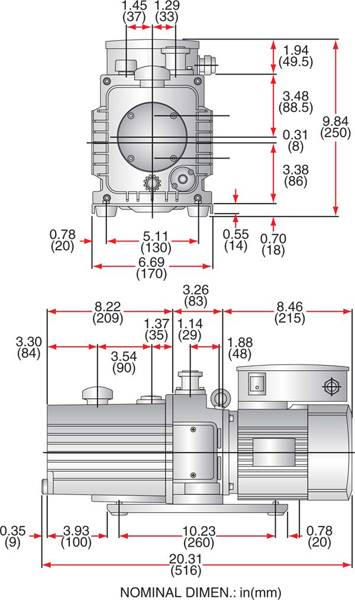

Dimensional Drawings

Charts

Specifications Table

Pump Model	GLD-040	GLD-137	GLD-202	GLD-280
Pumping Speeds	50 (Hz) 1.41 CFM 40.0 L/min 0.66 L/s 2.40 m3/hr 60 (Hz) 1.70 CFM 48.1 L/min 0.80 L/s 2.89 m3/hr	50 (Hz) 4.77 CFM 134 L/min 2.24 L/s 8.10 m3/hr 60 (Hz) 5.70 CFM 161 L/min 2.68 L/s 9.68 m3/hr	50 (Hz) 7.06 CFM 199 L/min 3.32 L/s 12.0 m3/hr 60 (Hz) 8.50 CFM 240 L/min 3.99 L/s 14.4 m3/hr	50 (Hz) 9.89 CFM 279 L/min 4.65 L/s 16.8 m3/hr 60 (Hz) 11.9 CFM 335 L/min 5.58 L/s 20.2 m3/hr
Ultimate Pressure	Total With Gas Ballast 6.66 x 10^-2 hPA 6.66 x 10^-2 mbar 6.66 x 10⁰ Pa 5.00 x 10^-2 Torr Total Without Gas Ballast 6.66 x 10^-3 hPA 6.66 x 10^-3 mbar 6.66 x 10^-1 Pa 5.00 x 10^-3 Torr	Total With Gas Ballast 6.66 x 10^-2 hPA 6.66 x 10^-2 mbar 6.66 x 10⁰ Pa 5.00 x 10^-2 Torr Total Without Gas Ballast 6.66 x 10^-3 hPA 6.66 x 10^-3 mbar 6.66 x 10^-1 Pa 5.00 x 10^-3 Torr	Total With Gas Ballast 6.66 x 10^-2 hPA 6.66 x 10^-2 mbar 6.66 x 10⁰ Pa 5.00 x 10^-2 Torr Total Without Gas Ballast 6.66 x 10^-3 hPA 6.66 x 10^-3 mbar 6.66 x 10^-1 Pa 5.00 x 10^-3 Torr	Total With Gas Ballast 6.66 x 10^-2 hPA 6.66 x 10^-2 mbar 6.66 x 10⁰ Pa 5.00 x 10^-2 Torr Total Without Gas Ballast 6.66 x 10^-4 hPA 6.66 x 10^-4 mbar 6.66 x 10^-2 Pa 5.00 x 10^-4 Torr
Cooling Method(s)	Method Convection	Method Convection	Method Convection	Method Convection
Inlet Flange	KF25	KF25	KF25	KF25
Exhaust Flange	KF25	KF25	KF25	KF25
Oil Type(s)	Hydrocarbon Oil Part: KJLSS19G1	Hydrocarbon Oil Part: KJLSS19G1	Hydrocarbon Oil Part: KJLSS19G1	Hydrocarbon Oil Part: KJLSS19G1
Oil Capacity Quarts (Liters) *Unless otherwise noted	0.71 ( 0.68 )	1.05 ( 1.00 )	1.05 ( 1.00 )	1.05 ( 1.00 )
Noise db(A)	55.0
Compression Stages	2	2	2	2
Series	Standard	Standard	Standard
Weight Lbs (kg)	35.2 ( 16.0 )	57.2 ( 26.0 )	63.8 ( 29.0 )	75.9 ( 34.5 )
Dimensions in. (mm.)	16.8 x 5.91 x 9.02 (427 x 150 x 229 )	17.9 x 6.69 x 9.45 (455 x 170 x 240 )	20.2 x 6.69 x 9.45 (513 x 170 x 240 )	23.1 x 7.17 x 10.7 (586 x 182 x 271 )
Lubrication Type	Wet	Wet	Wet	Wet
Technology Type	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive
