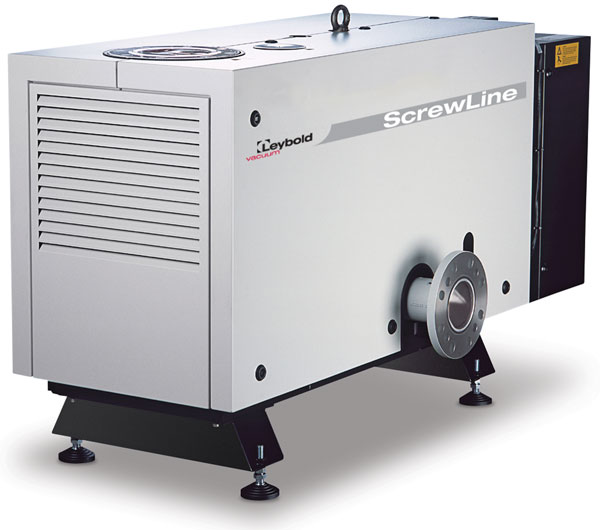

Leybold ScrewLine Series Leybold ScrewLine Series 1 Leybold ScrewLine Series 2

Leybold ScrewLine Series

A dry-compressing screw-type vacuum pump designed to meet the special needs of industrial applications.

The ScrewLine family of pumps was developed in view of the special requirements of industrial applications. The innovative design enables these pumps to be used where reliable, compact, and low maintenance vacuum solutions are demanded.

  • Minimum downtime, maximum availability, highly rugged
  • The only vacuum pump in the industrial market with a cantilevered bearing arrangement
  • Monitoring through SP Guard
  • Highly tolerant of particles and vapors
  • Low cost of ownership
  • Ideal alternative to all oil-sealed and dry compressing vacuum systems

Features:

  • Rugged, bearing-free dry pump screw design
  • Effective pumping speeds, even at low pressures
  • Modular design enables easy integration of roots booster pumps

Applications:

  • Industrial furnaces
  • Coating technology
  • Load lock chambers
  • Metallurgical systems
  • Packaging technology
  • Drying processes
  • Degassing
  • Research and development
  • Lamp and tube manufacturing
  • Automotive industry
  • Packaging industry
  • Space simulation

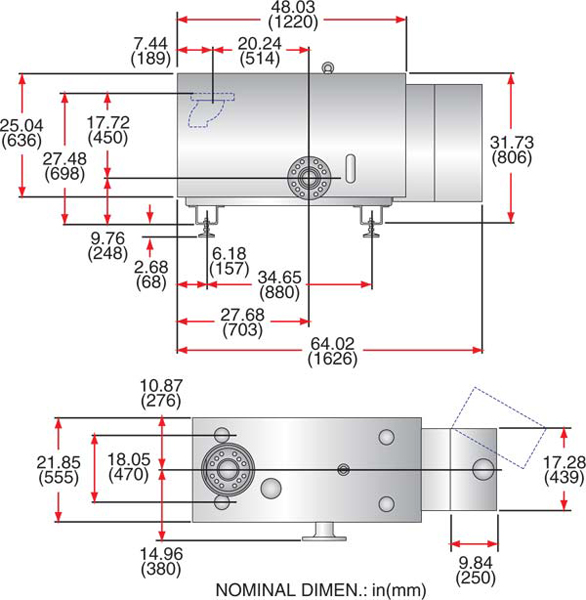

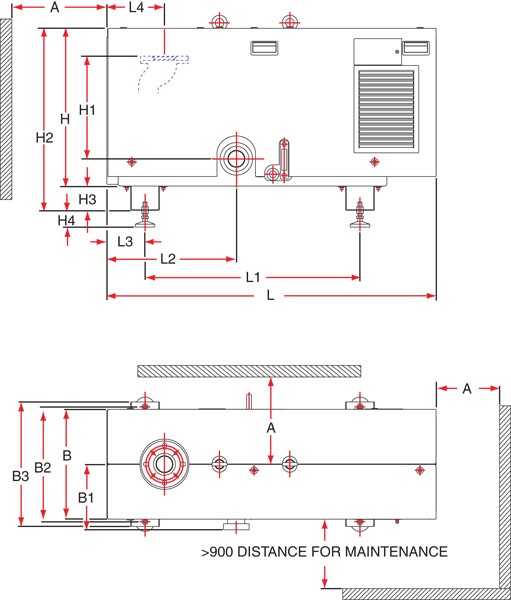

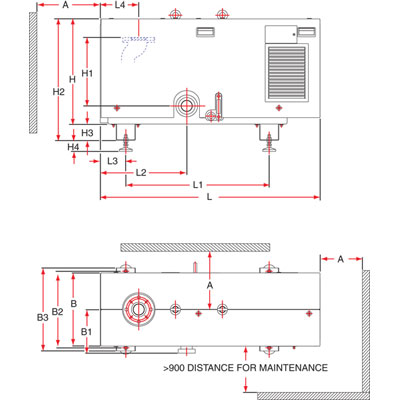

Dimensional Drawings


Leybold SP250 Leybold SP630

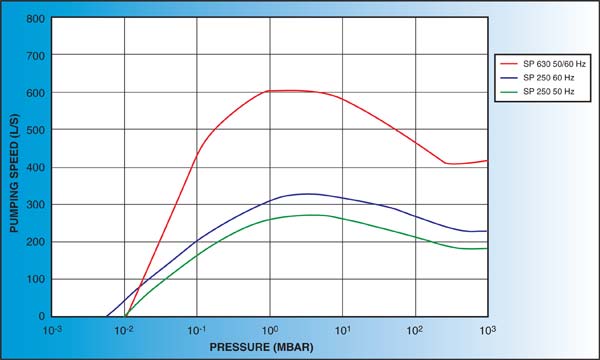

Charts


Specifications Table

Pump Model SP250 SP630
Pumping Speeds
50 (Hz)
147 CFM
4166 L/min
69.4 L/s
250 m3/hr
60 (Hz)
177 CFM
5017 L/min
83.6 L/s
301 m3/hr
50 (Hz)
370 CFM
10500 L/min
175 L/s
630 m3/hr
60 (Hz)
370 - 371 CFM
10500 - 10515 L/min
175 L/s
630 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
18000 g/hr 14000 g/hr
Ultimate Pressure
Total Without Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Total With Gas Ballast
1.00 x 10-1 hPA
1.00 x 10-1 mbar
1.00 x 101 Pa
7.50 x 10-2 Torr
Total Without Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Cooling Method(s) Method
Convection
Method
Convection
Water
Water Flow Rate
12 L/min
Motor Power HP (kW) 7.90 ( 5.90 ) 20.1 ( 15.0 )
Inlet Flange ISO63-K
ISO100-K
Exhaust Flange ISO63
ISO100
Noise db(A) 75.0 75.0
Series Chemical
Chemical
Weight Lbs (kg) 992 ( 450 ) 1166 ( 530 )
Dimensions in. (mm.) 53.1 x 20.9 x 34.6
(1350 x 530 x 880 )
64.2 x 26.0 x 34.6
(1630 x 660 x 880 )
Lubrication Type Dry
Dry
Technology Type Screw
Screw
X CLOSE
Product Brochure
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Voltage & Phases Manual Description Part Number Price In Stock Add To Cart
Pump Model Inlet Flange Voltage & Phases Manual Description Part Number Price In Stock Add To Cart
SP250 ISO63-K 400V,50Hz/200V,50Hz/460V,60Hz/210V,60Hz Download PDF DRY PUMP, SCREWLINE, SP250, DN63 ISO-K, 3-PH MOTOR: 400V, 50HZ / 200V, 50HZ / 460V, 60HZ / 210V, 60HZ 115001 P.O.R. Call for Availability
SP630 ISO100-K 190V-210V/380V-420V,50Hz 3-PH Motor Download PDF DRY PUMP, SCREWLINE, SP630, DN100 ISO-K, 50HZ, MANUAL GAS BALLAST 117007 P.O.R. Call for Availability
SP630 ISO100-K 190V-210V / 380V-420V, ±5%, 60Hz 3-PH Motor Download PDF DRY PUMP, SCREWLINE, SP630, DN100 ISO-K, 3-PH MOTOR: 190V-210V / 380V-420V, ±5%, 60HZ 117008 P.O.R. Call for Availability
