Representative Image

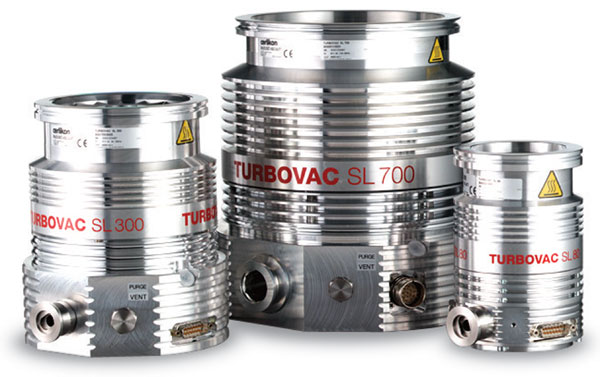

Leybold TurboVac SL 80 Leybold TurboVac SL 80 1

Leybold TurboVac SL 80

Note:
The Oerlikon Leybold TurboVac SL 300 and SL700 have been discontinued. Please contact us by clicking here for an alternative.

TurboVac SL 80 Features:

  • High pressure foreline tolerance
  • Installation in any orientation

Specifications Table

Pump Model TurboVac SL80
Pumping Speeds
N2: 65.0 L/s
Ar: 60.0 L/s
H2: 49.0 L/s
He: 55.0 L/s
Max Gas Throughput N2: 2.00 mbar*L/s
Ultimate Pressure
ConFlat Flange
2.00 x 10-10 hPA
2.00 x 10-10 mbar
2.00 x 10-8 Pa
1.50 x 10-10 Torr
Max Foreline Pressure 2.00 x 101 hPA
2.00 x 101 mbar
2.00 x 103 Pa
1.50 x 101 Torr
Foreline Flange KF16
Inlet Flange DN63CF (4.50" OD)
Weight Lbs (kg) 6.82 ( 3.10 )
Lubrication Type Dry
Technology Type Turbomolecular
X CLOSE


Product Downloads
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Note:
  • All pumps require the following accessories for operation: Frequency Converter, Mounting Bracket, w/Interconnect Cable, Power Supply and Interconnect Cable (Frequency Converter - Power Supply).

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Inlet Flange Foreline Flange Manual Description Part Number Price In Stock Add To Cart
Pump Model Inlet Flange Foreline Flange Manual Description Part Number Price In Stock Add To Cart
TurboVac SL80 DN63CF (4.50" OD) KF16 Download PDF TURBO PUMP, SL80, DN63 CF/ DN16 KF, CC 800002V3002 $6,547.00 Call for Availability
Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart
For Pump Model(s) Description Part Number Price In Stock Add To Cart
TurboVac SL80 Bolting Kit, For DN63CF (4.50" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket
DN63CF-HDKIT
P.O.R.
Call for Availability
TurboVac SL80 Clamping Kit, For QF16 Flange, Including Aluminum Clamp and FKM Centering Ring
QF16-HDKIT
P.O.R.
Call for Availability
All Controllers Controller Power Cord, UK Plug End
800102V0002
P.O.R.
Call for Availability
All Controllers Controller Power Cord, US Plug End
99276513
P.O.R.
Call for Availability
SL80 Frequency Converter, TURBO.DRIVE TD400
800073V0002
P.O.R.
Call for Availability
SL80 Interconnect Cable Turbo Control 300, 3m
(Frequency Converter-Power Supply)
800091V0300
P.O.R.
Call for Availability
SL80 Mounting Bracket and Interconnect Cable, Side Mount
LH-800110V00005
P.O.R.
Call for Availability
