Representative Image

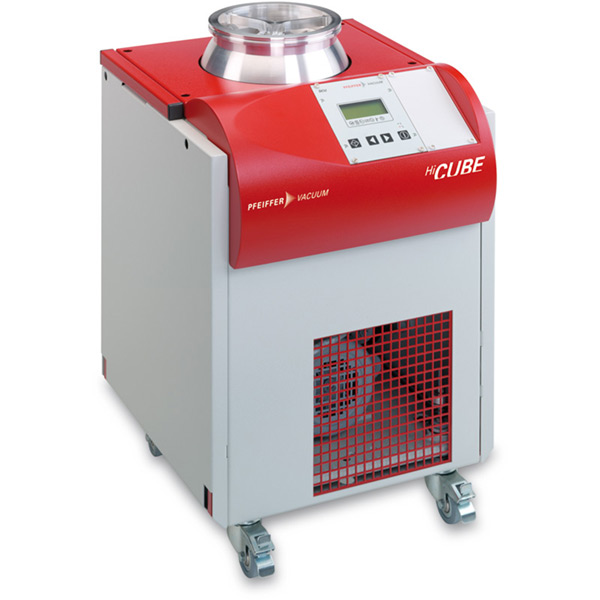

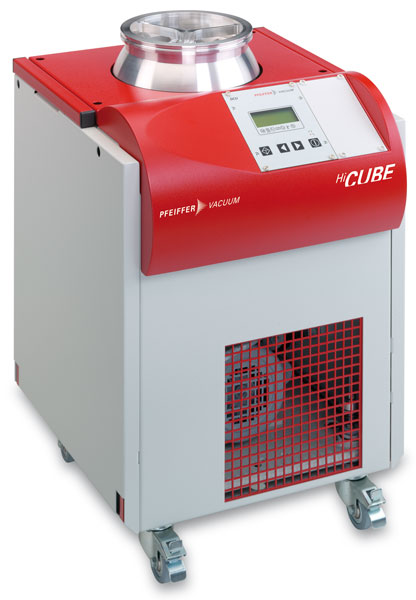

Pfeiffer HiCube™ Classic Pumping Station

Pfeiffer combines a turbo pump with an integrated controller and backing pump into a stable, closed-housing to form a fully automatic, turnkey pumping package for high-vacuum applications.

Based on their modular and customizable design, you can chose from a variety of pump configurations/combinations. Whether you need a dry or oil-lubricated backing pump, advanced interlocks, or different sizes of pumping speeds for your turbo, you can be sure to find the most economical and best performing combination to suit your needs.

Features:

  • Modular design enables easy access to individual pumping components
  • Pumping speeds available from 35 to 685 L/sec.
  • Integrated turbo pump controller for ease of operation
  • Backing pump vibrations isolated from main frame
  • Plug-and-play design eliminates installation hassles and unnecessary cabling
  • Remote control operation available for convenience
  • Castors for convenience 2 locking

Applications:

  • R&D
  • Accelerators
  • Analytical
  • Surface science
  • Vacuum and process technologies
  • E-beam welding
  • Leak detectors

Dimensional Drawings


Product Brochure
For the full brochure on this product, please click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.
Note:
  • Other configurations available.

Got VacuCADSM?
VacuCAD is a free library containing thousands of 2D CAD drawings (in DXF format) and 3D Models (in STP format) for many of our standard vacuum components and chambers. Please Log in

Ordering Table

(Click column headers to sort data)

X CLOSE
Pump Model Turbo Pump Model Inlet Flange Foreline Flange Backing Pump Model Backing Pump Type Manual Description Part Number Price In Stock Add To Cart Accessories
Pump Model Turbo Pump Model Inlet Flange Foreline Flange Backing Pump Model Backing Pump Type Manual Description Part Number Price In Stock Add To Cart Accessories
HiCube 80 Classic HiPace80 ISO63-K KF16 DUO 3 Rotary Vane Download PDF TURBO PUMP, HIPACE 80 CLASSIC/DUO 3 TURBO PUMPING STATION DN63 ISO-K, 110V, 60HZ PMS2132100 P.O.R. Contact KJLC for Availability
HiCube 80 Classic HiPace80 DN63CF (4.50" OD) KF16 DUO 3 Rotary Vane HICUBE PUMPING STATION,HIPACE 80,4.5"CF INLET,DUO3,110V AC 50/60HZ, ON ROLLERS, 4 STEERABLE ROLLERS, 2 BRAKES, STANDARD (WITHOUT CABLE SET FOR EXTERNAL OPERATION), STANDARD AIR COOLING PMS2232100A P.O.R. Contact KJLC for Availability
HiCube 300 Classic HiPace300 ISO100-K KF16 MVP 040 Diaphragm Download PDF HICUBE PUMPING STATION, HICUBE 300 CLASSIC/MVP 040 TURBO PUMPING STATION DN100 ISO-K, 110V, 60HZ PMS2322100 P.O.R. Contact KJLC for Availability
HiCube 300 Classic HiPace300 ISO100-K KF16 DUO 5 Rotary Vane Download PDF HICUBE PUMPING STATION, HICUBE 300 CLASSIC/DUO 5 MTURBO, DN100 ISO-K, 100V, 60HZ PMS2334100 P.O.R. Contact KJLC for Availability
HiCube 300 Classic HiPace300 DN100CF (6.00" OD) KF16 MVP 040 Diaphragm Download PDF PMS2422100 P.O.R. Contact KJLC for Availability
HiCube 300 Classic HiPace300 DN100CF (6.00" OD) KF16 DUO 5 Rotary Vane Download PDF HICUBE PUMPING STATION,HIPACE300,6"CF INLET,DUO5, 115 VOLT PMS2434100 P.O.R. Contact KJLC for Availability
HiCube 400 Classic HiPace400 ISO100-K KF25 MVP 070 Diaphragm Download PDF PMS2524100 P.O.R. Contact KJLC for Availability
HiCube 400 Classic HiPace400 ISO100-K KF25 DUO 5M Rotary Vane Download PDF PMS2534100 P.O.R. Contact KJLC for Availability
HiCube 400 Classic HiPace400 DN100CF (6.00" OD) KF25 MVP 070 Diaphragm Download PDF HICUBE PUMPING STATION, HIPACE 400, MVP070, 110V PMS2624100 P.O.R. Contact KJLC for Availability
HiCube 400 Classic HiPace400 DN100CF (6.00" OD) KF25 DUO 5M Rotary Vane Download PDF PMS2634100 P.O.R. Contact KJLC for Availability
HiCube 700 Classic HiPace700 ISO160-K KF25 MVP 070 Diaphragm Download PDF HICUBE CLASSIC 700, MVP-070-3 BACKING PUMP, ISO160, 110V, WITH CASTORS PMS2724100 P.O.R. Contact KJLC for Availability
HiCube 700 Classic HiPace700 ISO160-K KF25 DUO 5M Rotary Vane Download PDF HICUBE CLASSIC 700, DUO 5M BACKING PUMP, ISO160, 110V, CASTORS PMS2734100 P.O.R. Contact KJLC for Availability
HiCube 700 Classic HiPace700 DN160CF (8.00" OD) KF25 MVP 070 Diaphragm Download PDF PMS2824100 P.O.R. Contact KJLC for Availability
HiCube 700 Classic HiPace700 DN160CF (8.00" OD) KF25 DUO 5M Rotary Vane Download PDF HICUBE PUMPING STATION, HICUBE 700 CLASSIC/DUO 5 M, DN160 CF-F, 110V, 50/60Hz PMS2834100 P.O.R. Contact KJLC for Availability
CloseX
X CLOSE
Can't Find The Pump You're Looking For? Let our new Pump Selection Guide help! With over 450 vacuum pumps to choose from, the KJLC® Vacuum Pump Selection Guide is designed to help you find one that meets your vacuum requirements. You can narrow down our pump offering by simply choosing from a list of different search criteria. For more information please contact us by clicking here .

Accessories Table

Description Part Number Price In Stock Add To Cart
Description Part Number Price In Stock Add To Cart
Bolting Kit, For DN160CF (8.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket
DN160CF-HDKIT
P.O.R.
Contact KJLC for Availability
Bolting Kit, For DN63CF (4.50" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket
DN63CF-HDKIT
P.O.R.
Contact KJLC for Availability
Bolting Kit, For Dn100CF (6.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket
DN100CF-HDKIT
P.O.R.
Contact KJLC for Availability
Clamping Kit, For QF100 (ISO100-K) Flange, Including (8) Cold Steel (Zinc Plated) Clamp and FKM Centering Ring
QF100K-HDKIT
P.O.R.
Contact KJLC for Availability
Clamping Kit, For QF160 (ISO160-K) Flange, Including (8) Cold Steel (Zinc Plated) Clamp and FKM Centering Ring
QF160K-HDKIT
P.O.R.
Contact KJLC for Availability
Clamping Kit, For QF63 (ISO63-K) Flange, Including (4) Cold Steel Zinc Plated) Clamp and FKM Centering Ring
QF63K-HDKIT
P.O.R.
Contact KJLC for Availability
